Planet POE-152 User Manual

- 11 -
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation
and color of straight cable and crossover cable connection:

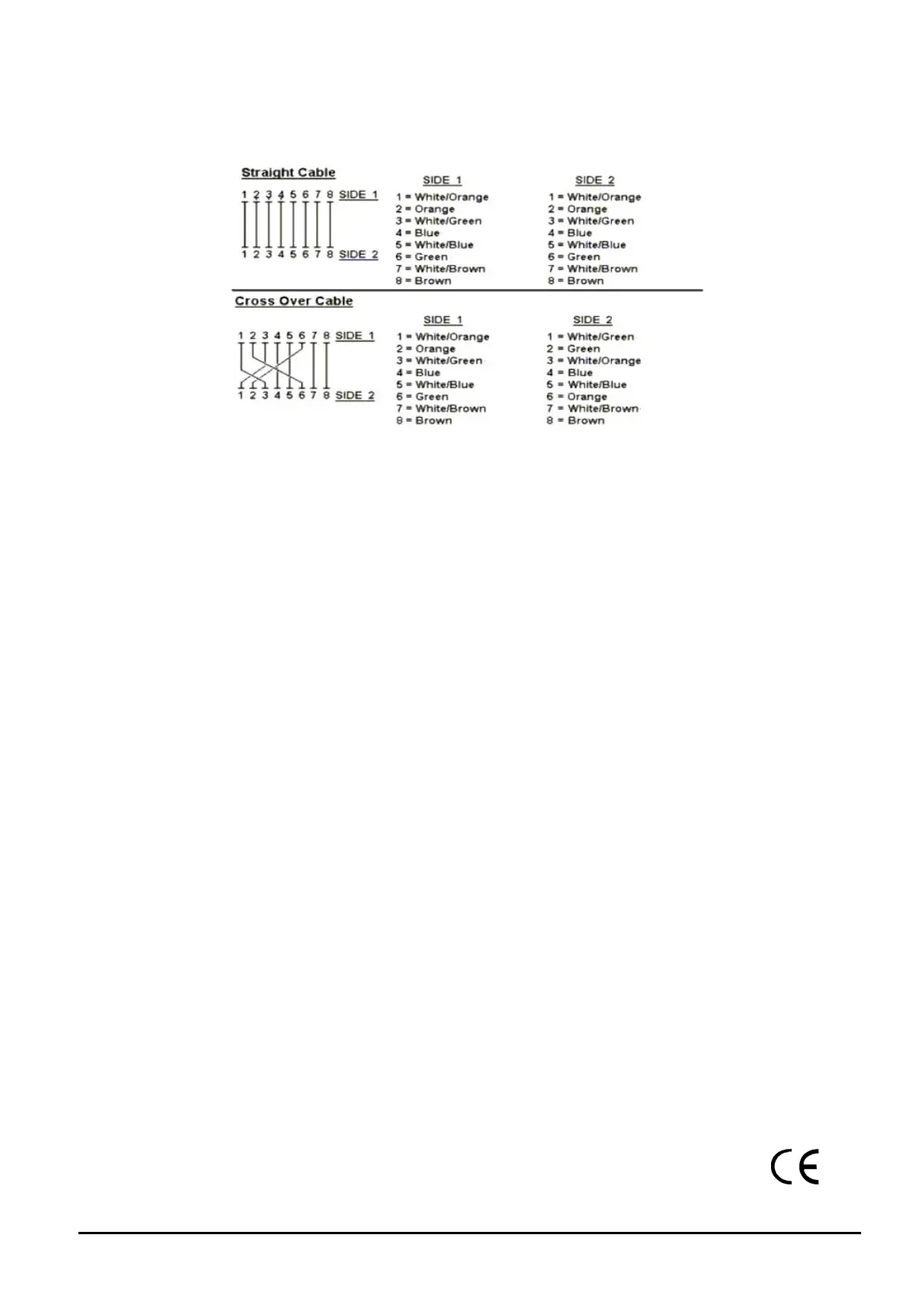

Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture before deploying the
cables into your network.
2080-A31120-001

Planet POE-152 Specifications

General

Brand	Planet
Model	POE-152
Category	Switch
Language	English
