- 8 -

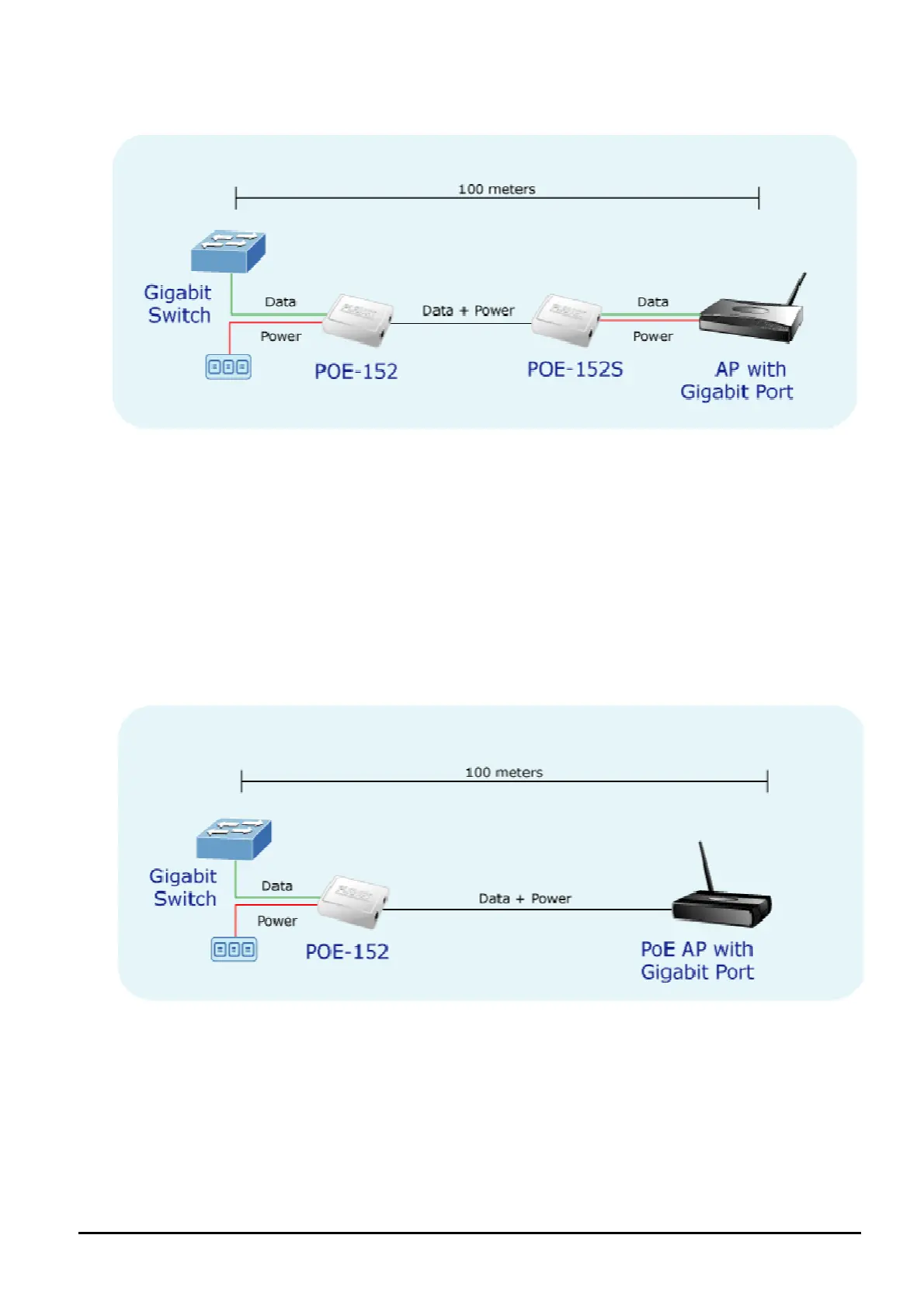

Figure 3: Connection architecture over POE-152/152S
Notice:
1. According to IEEE 802.3af standard, the POE-152 will not inject power to the cable if not connecting to
IEEE 802.3af devices.
2. Please ensure the output voltage is correct before applying power to remote device.
2.4 Connect with IEEE 802.3af devices
Due to the capability of IEEE 802.3af standard, the POE-152 can directly connect with any IEEE 802.3af end-nodes like
wireless access point, VoIP phones and Internet camera where support IEEE 802.3af In-line Power over Ethernet port.
The screen in Figure 4 appears.
Figure 4: Connection to IEEE 802.3af device
Once POE-152 detects the existence of an IEEE 802.3af device, the LED indicator will be steady, ON to shows it is
providing power.
Notice:
If the connected device is not fully complying with IEEE 802.3af standard or in-line power device, the LED indicator of
POE-152 will not be steady on.
