9
6. Start Web Management
The following shows how to start up the Web Management of the WGSW /
SGSW Managed Switch. Note the Managed Switch is congured through an
Ethernet connection, please make sure the manager PC must beset onthe same
IP subnet address.
For example, the default IP address of the WGSW / SGSW Managed Switch is
192.168.0.100, then the manager PC should be set at 192.168.0.x (where x
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.

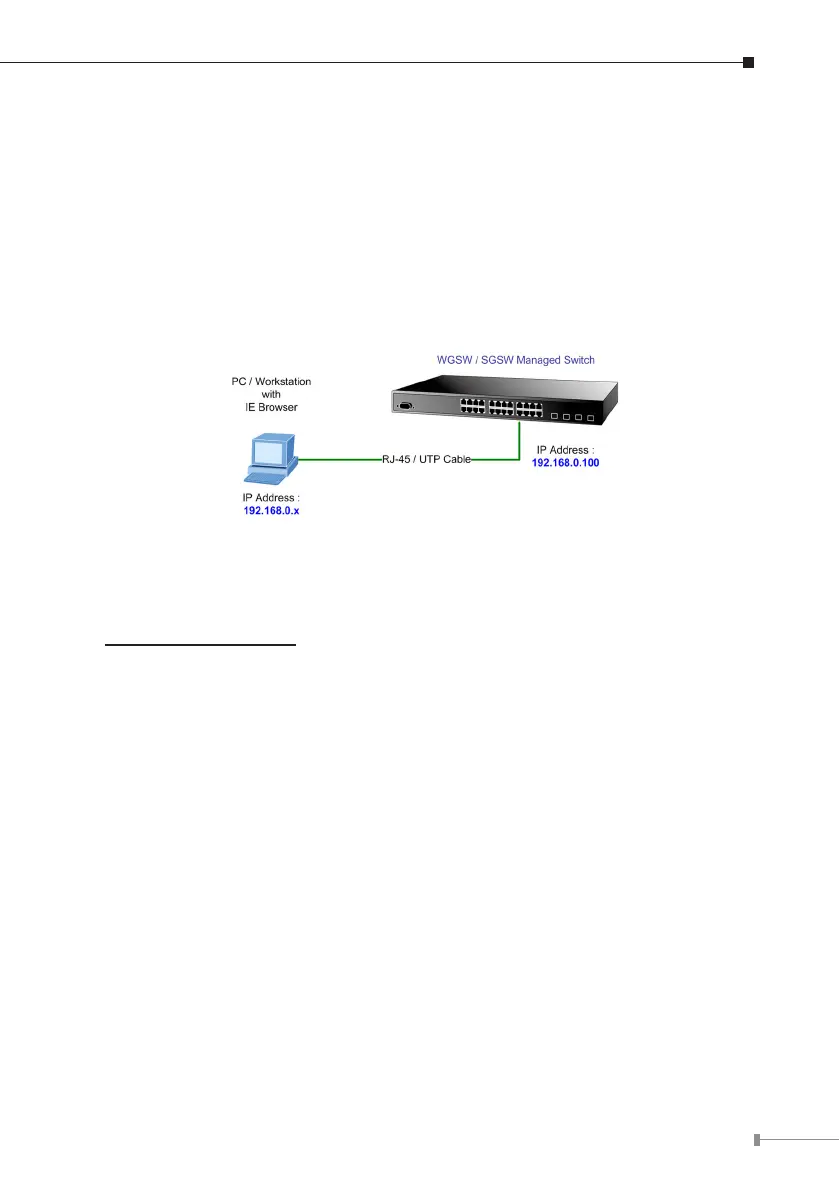

Figure 6-1 IP Management diagram
Login the Managed Switch
1.Use Internet Explorer 6.0 or above Web browser, enter IP address
http://192.168.0.100 (the factory-default IP address or that you have just
changedinconsole)toaccesstheWebinterface.
To Next Page
