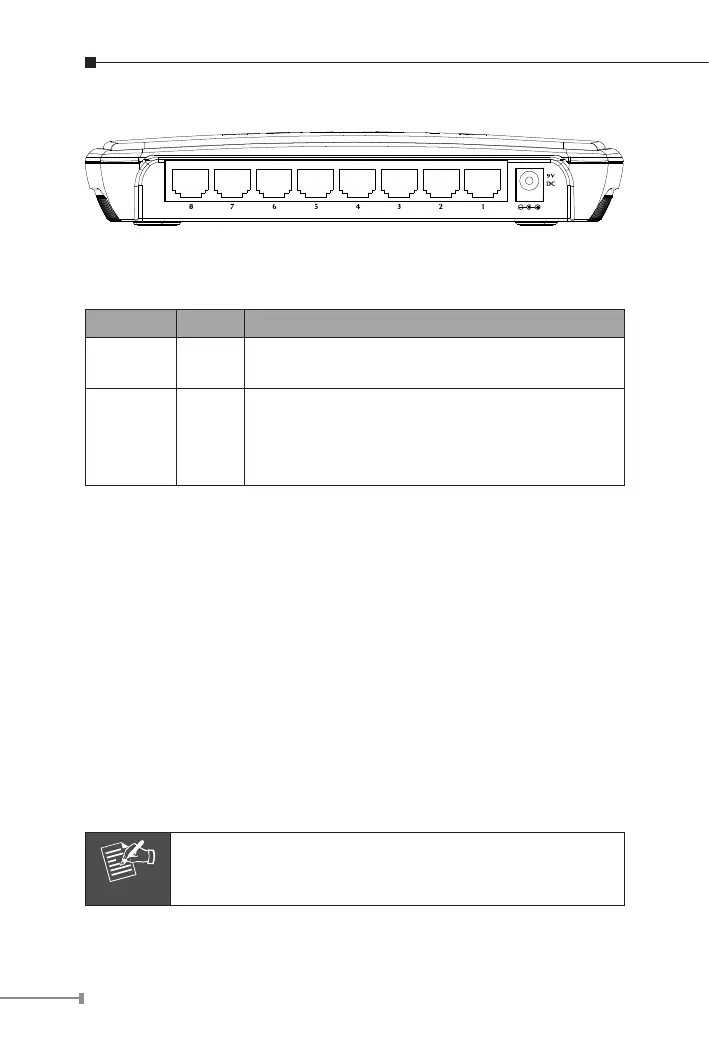

Figure 2-4 SW-804 rear panel
2.1.3 LED Indicators
LED Color Function
PWR Green
Lights to indicate that the Switch is powered
on.
LNK/ACT Green
Lit: indicate the link through that port is
successfully established.
Blink: indicate that the Switch is actively
sending or receiving data over that port.
Power Notice:
1. The device is a power-required device, it means, it will not work till
it is powered. If your networks should active all the time, please
consider using UPS (Uninterrupted Power Supply) for your device. It
will prevent you from network data loss or network downtime.
2. In some area, installing a surge suppression device may also help
to protect your Switch from being damaged by unregulated surge or
current to the Switch or the power adapter.
2.2 Installing the Switch
This part describes how to install your Desktop Fast Ethernet Switch
and make connections to it. Please read the following topics and
perform the procedures in the order being presented.
This Switch does not need software configuration.
