2.1.2 Switch Front Panel

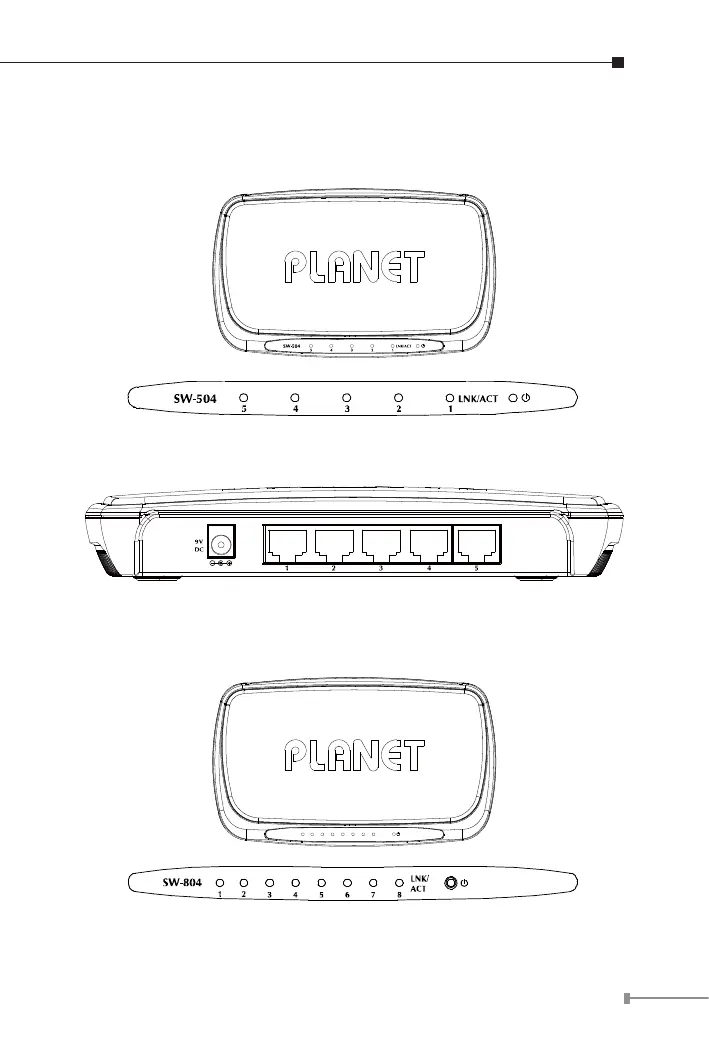

Figure 2-1 & 2-2 show the front panel and rear panel of SW-504
Figure 2-1 SW-504 front panel
Figure 2-2 SW-504 rear panel
Figure 2-3 & 2-4 show the front panel and rear panel of SW-804
1 2
3 5 64 87
SW -804
LN K/ACT
Figure 2-3 SW-804 front panel
