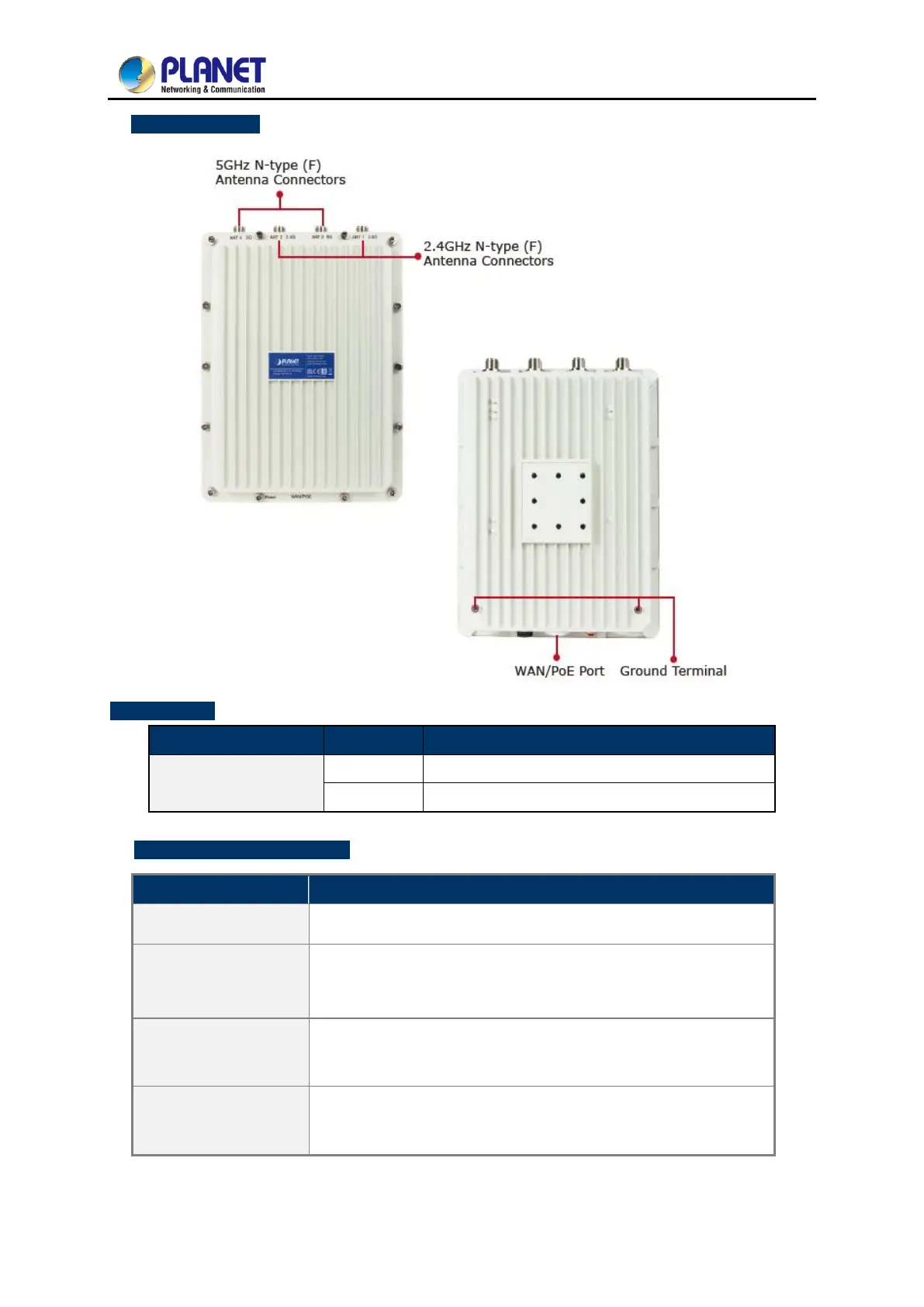

Port & Connector
LED definition
LED
STATUS
FUNCTION
PWR
On (Green)
The access point is on. And wireless LAN is on.
Off
Power Off
Hardware Interface Definition
Object
Description
Antenna Connectors
4 N-type (female) antenna connectors
PoE LAN Port
10/100/1000Mbps RJ45 port, auto MDI/MDI-X
802.3at PoE+ supported, 48VDC In
Reset Button
Press and hold the Reset button for over 5 seconds to return to
the factory default setting.
Grounding Terminal
The grounding wire must be attached to this port to prevent
damage to the AP from direct lightning strike.

Planet WDAP-W3000AX Specifications

General

Brand	Planet
Model	WDAP-W3000AX
Category	Wireless Access Point
Language	English
