Planet WPG-210N - Hardware Connection Steps

PLANET 802.11n Wireless Presentation Gateway
WPG-210N

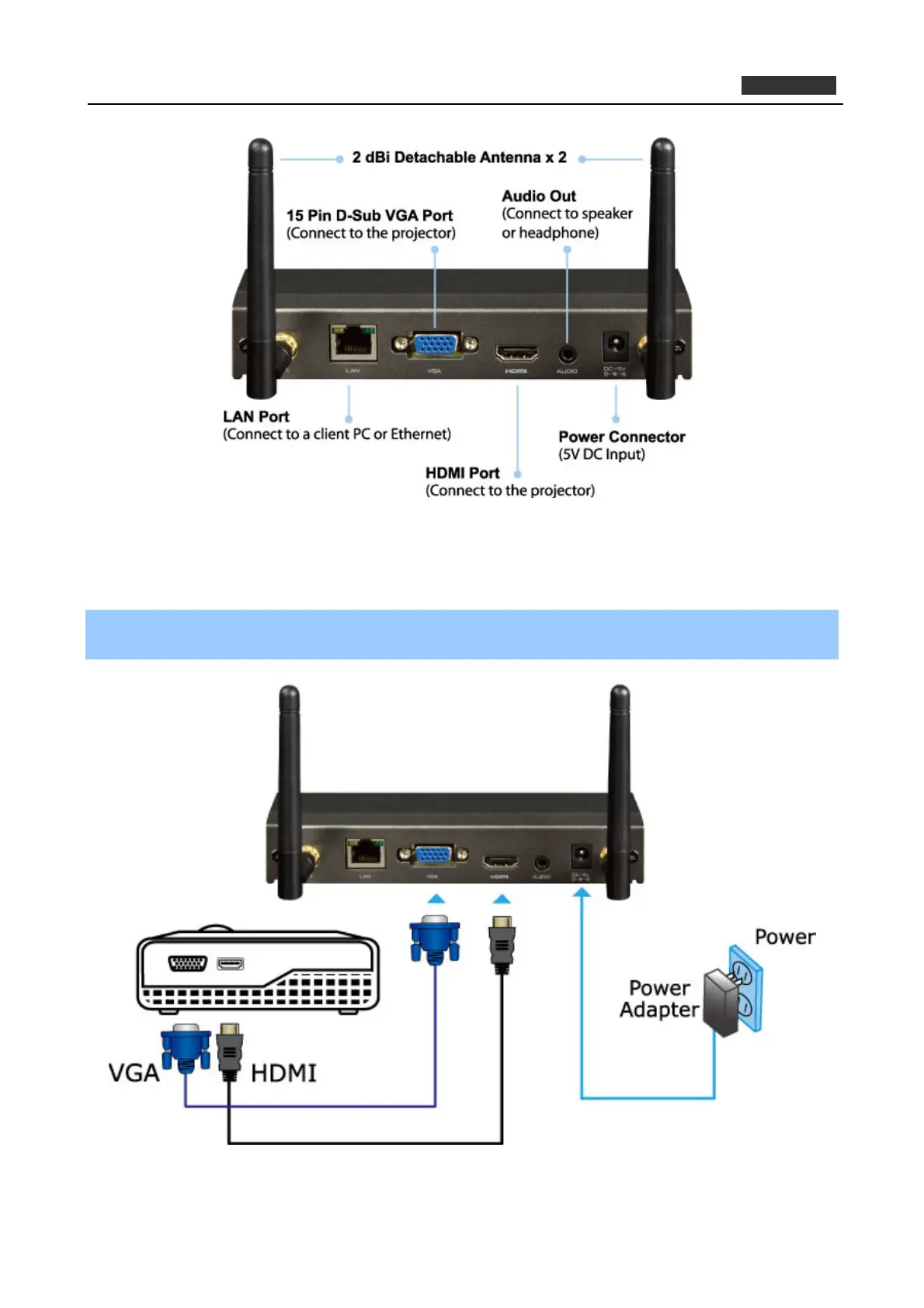

Figure 2-2 the WPG-210N Rear Panel
2.2 Hardware Connection
Step 1. connect HDMI or D-sub cable of the projector to WPG-210N. Please turn off your projector first, and
Then you can power on WPG-210N.
Figure 2-3 VGA / HDMI interface connection
13
