5. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtotheRJ45typeoftheconsoleportoftheAPController.
AP Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

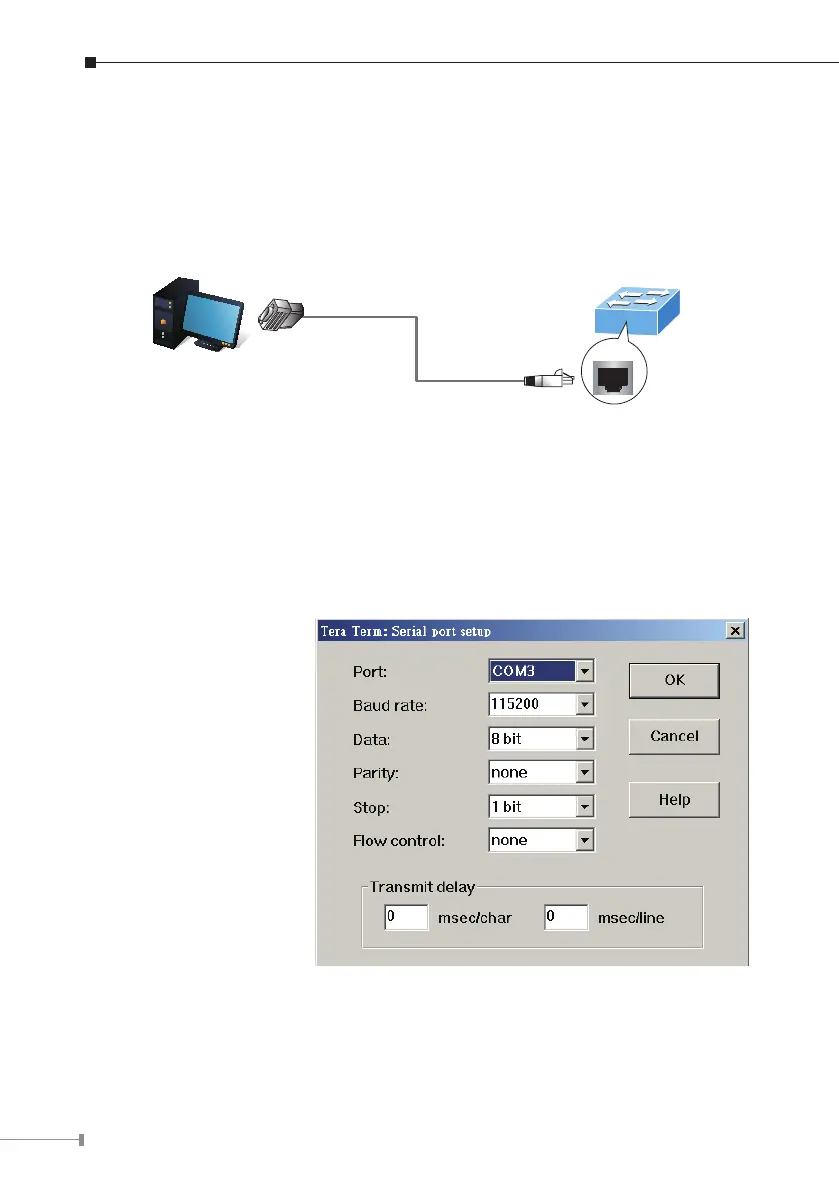

Figure 5-1 AP Controller Console Connectivity
A terminal program is required to make the software connection to the AP
Controller.
1. Run terminal program “Tera Term” on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
z Baud:115200
z Databits:8
z Parity:None
z Stopbits:1
z Flowcontrol:None
Figure 5-2 COM Port Conguration
