Planmeca INTRA X-RAY UNIT - Connect Cables to Generator PCB; Attach Generator Housing

Planmeca Intra Mobile base 5/8
Installation instructions
PLANMECA INTRA X-RAY UNIT

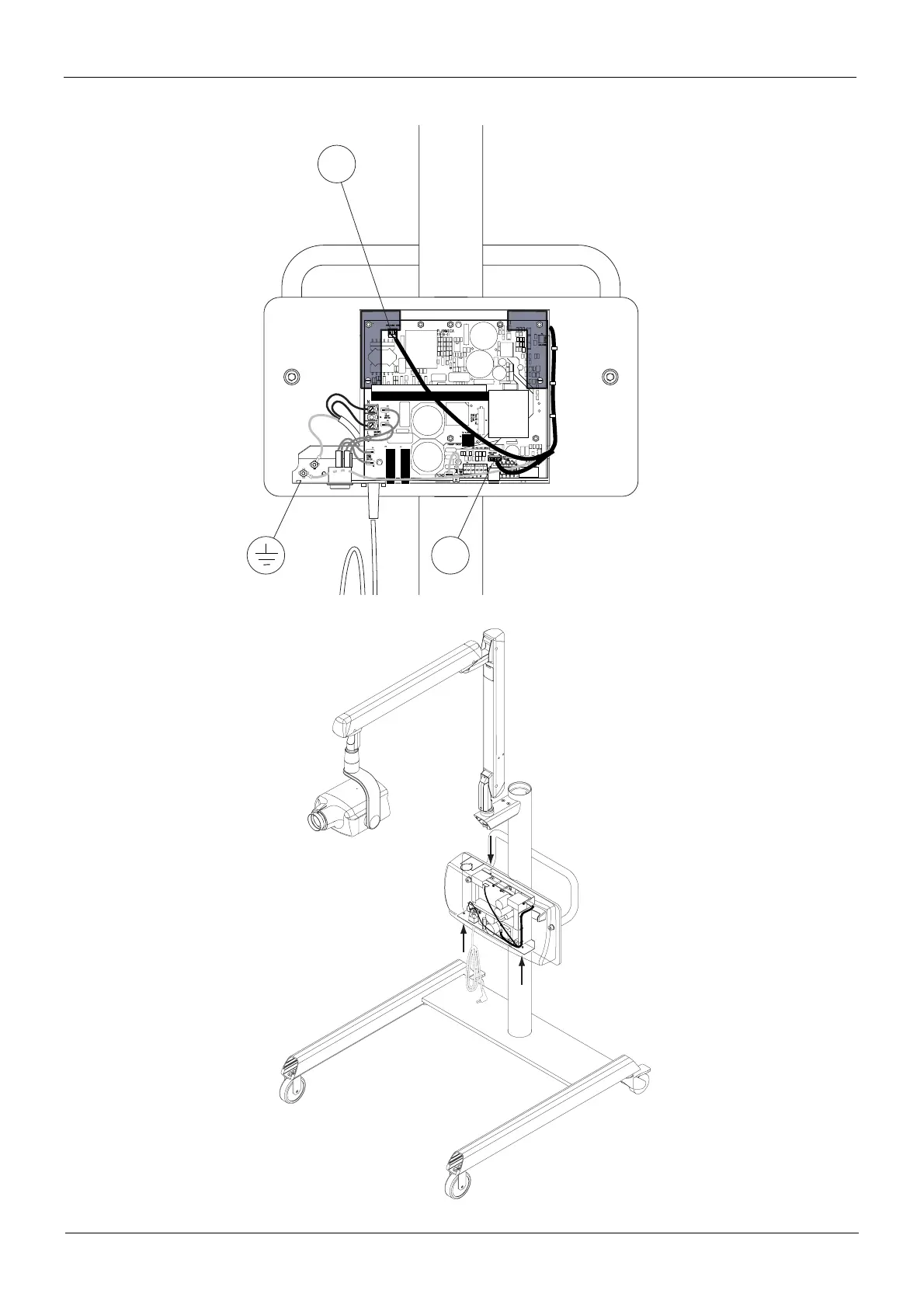

6. Connect the Intra cables to the Generator PCB according to the figure below.
7. Attach the generator housing to the generator assembly with three M4x6 ULS screws.
