PRE-INSTALLATION INFORMATION
4 Planmeca Proline XC X-ray unit Installation manual

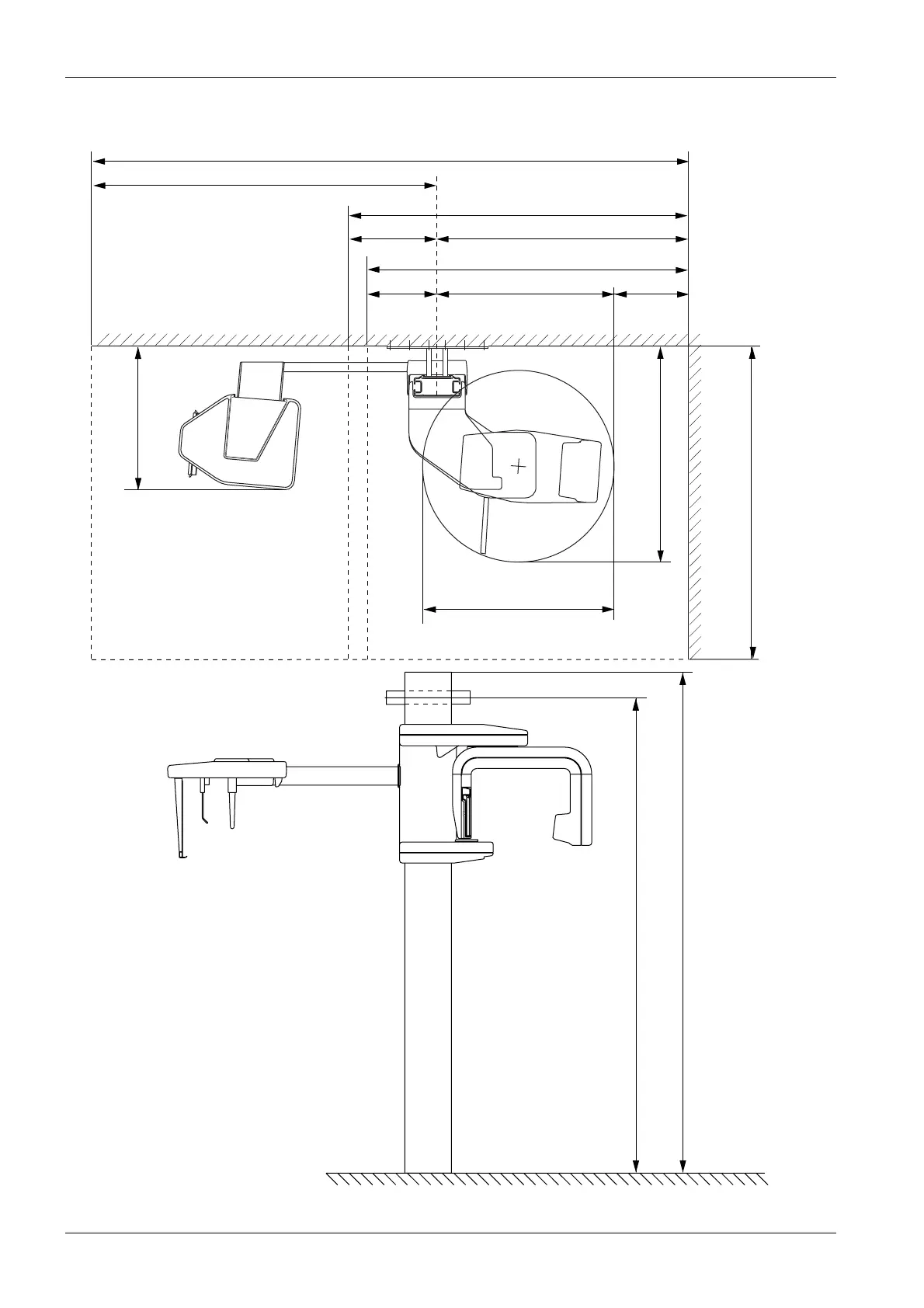

2.2 Installation dimensions
440 (17")
540 (21")
730 (29")
W(standard Pan) 1530 (60")
1090 (43")
W(with autoprint) 1630 (64")
1140 (45")
W(with ceph.) 2230 (88")
360 (14")
830 (32 1/2")
930 (36 1/2")
620 (24 1/2")
D 1035 (40 1/2") D 1475 (58") (With transversal slicing system)
2200 (86 1/2") 2050 - 2150 (80 1/2 - 84 1/2")
NOTE: If the unit is to be used
(part number 50021) the total
with the free-standing base
height will be 2230mm (88in)
