2.5.2

Lift

the

battery

retaining

latches

of

the

RT320/1,

fit

the

battery

to

the

RT320/1

so

that

the

contacts

of

both

engage

and

then

Secure

the

retaining

latches.

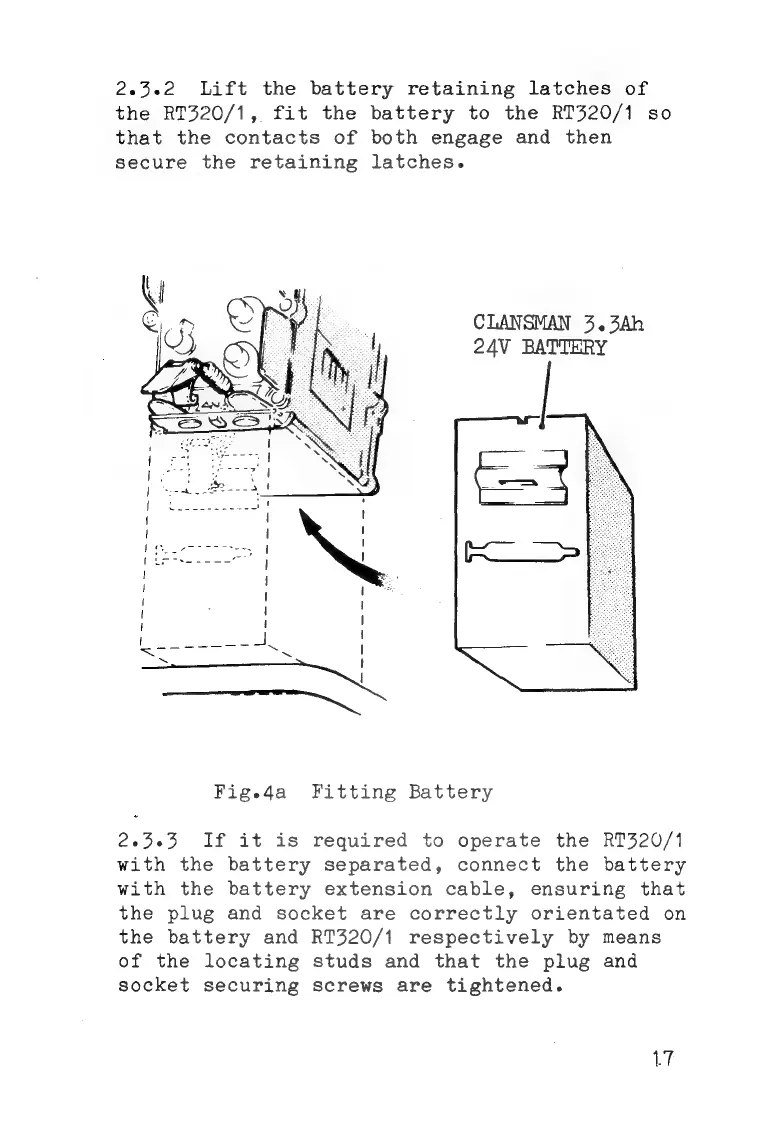

Fig.4a

Fitting

Battery

2.3.3

If

it

is

required

to

operate

the

RT320/1

with

the

battery

separated,

connect

the

battery

with

the

battery

extension

cable,

ensuring

that

the

plug

and

socket

are

correctly

orientated

on

the

battery

and

RT320/1

respectively

by

means

of

the

locating

studs

and

that

the

plug

and

socket

securing

screws

are

tightened.
