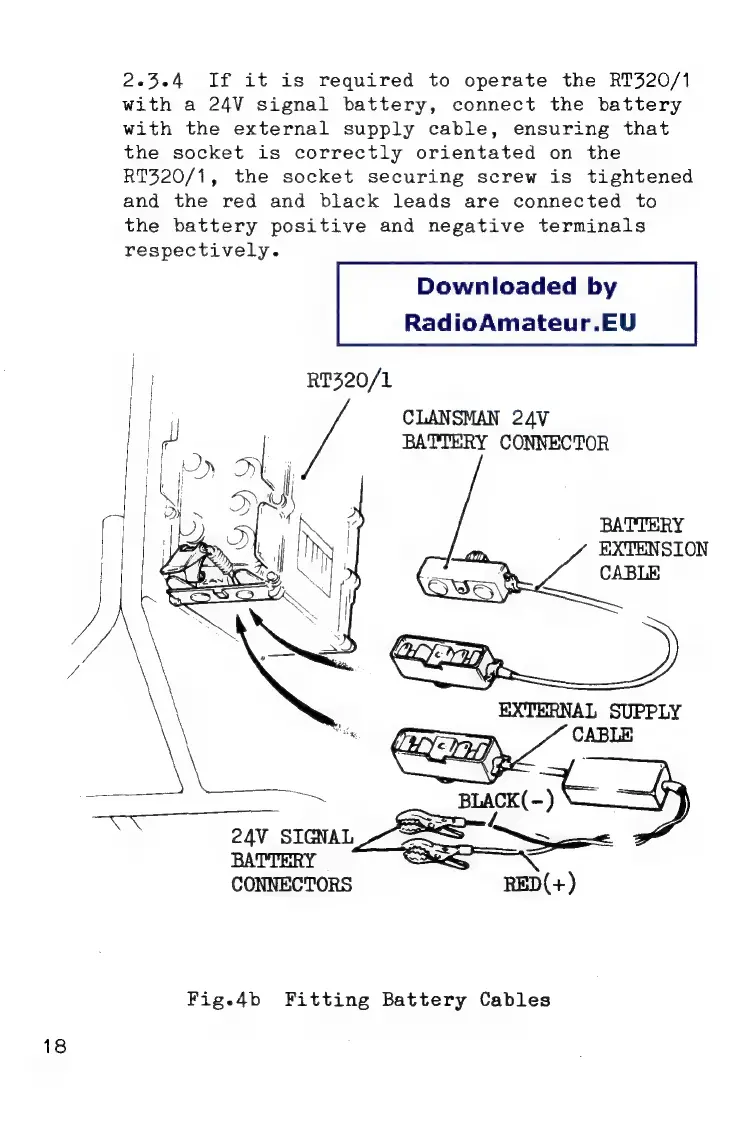

2.5.4 If it is required to operate the RT320/1
with а 24V signal battery, connect the battery
with the external supply cable, ensuring that
the socket is correctly orientated on the
RT320/1, the socket securing screw is tightened
and the red and black leads are connected to
the battery positive and negative terminals
respectively.
Downloaded by
RadioAmateur.EU
RT320/1
CLANSMAN 24V
BATTERY CONNECTOR
ты.
BENT D c
24V SIGNAL : >
BATTERY
CONNECTORS RED(+)
Fig.4b Fitting Battery Cables
