2.4 Assembling manpack. Proceed as shown in Fig.5
1. ASSEMBLE AND FIT WHIP ANTENNA
Fit together eight antenna sect-
ions. Slip ferrule over antenna
base, pull out cord, hold ferrule
in one hand and rotate antenna to E
wind cord round its base. Slip d FERRULE
ferrule over cord. р
Fit whip adaptor and antenna.
Set antenna to its operational
(vertical) position.
5. ADJUST MORSE KEY (IF FITTED)
Adjust screw G for key gap and
Screw T for tension to obtain
required operator 'feel'.
4. FIT SOLAR SHIELD (IF
REQUIRED)In strong sunlight fit
solar shield so top just clears
antenna socket.

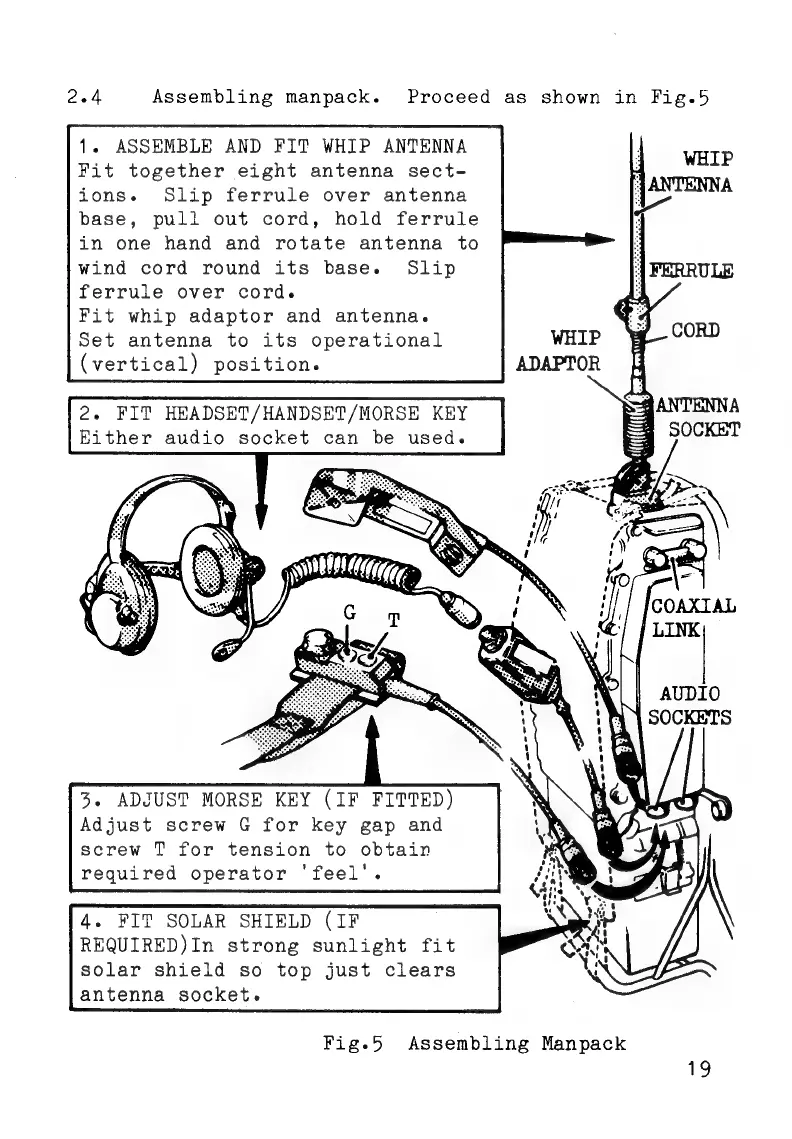

Fig.5 Assembling Manpack
