REP 2.4 Adjustment of side jogger movement Model 61
T08009 TJ
PURPOSE
On the Model 61 the side jogging is performed with the rear jogging rail. The jogging stroke is
essential
to the jogging performance and the transport of stets to the fold area.
1. Switch off the main power switch and disconnect the power cord.
2. Remove lower Infeed cover, CRI 1.2.
3. Push the jogging rail in manually and make a mark with a pen, release the jogging rail and measure
the distance from the mark to the jogging rail. The jogging movement should be 3.5 +/- 0.5mm.

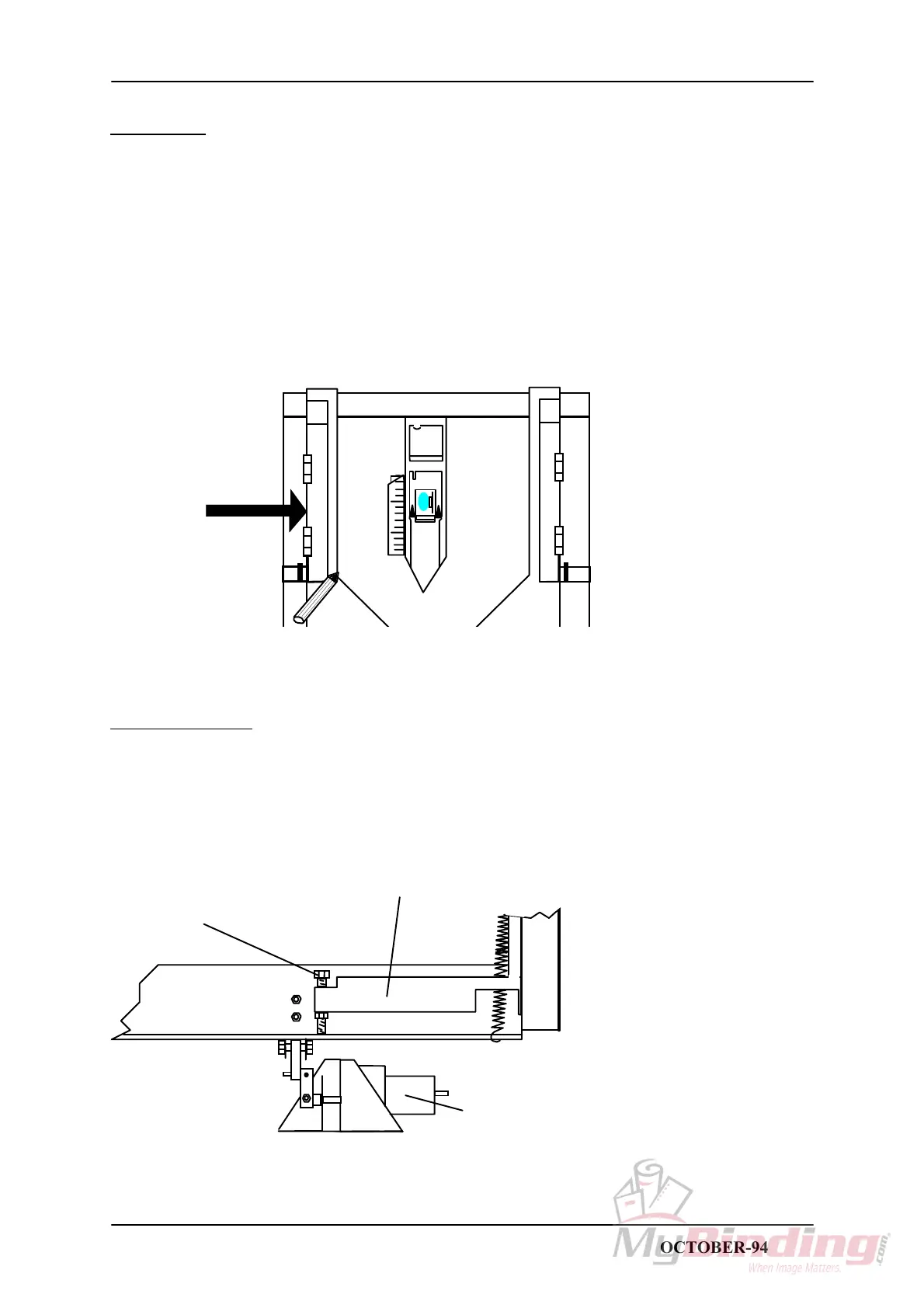

VIEW FROM TOP
Push here
ADJUSTMENT
1. Locate the Jogger arm assembly close to the Stapler motor.
2. Adjust on screw (1) to obtain the 3.5 +/- 0.5mm.
1
Stapler motor
Jogger arm assy
STAPLER FOLDER MODEL 60/61 PAGE 2.4 OCTOBER-94
