REP 2.3 Adjustment of Side guides Model 61
T08009 TJ
PURPOSE
The Side guides needs to be exactly parallel in order to transport the set straight to the Fold stop.
1. Switch off the main power switch and disconnect the power cord.
2. Remove lower Infeed cover, CRI 1.2.
3. Empty the Staple magazines.
4. Move the Fold knife to top position by turning the shaft on the rear side of Fold knife motor
manually.
5. Move the Side guides to the outer most position and insert tool A.
6. Check that the Side guides are flush to tool.

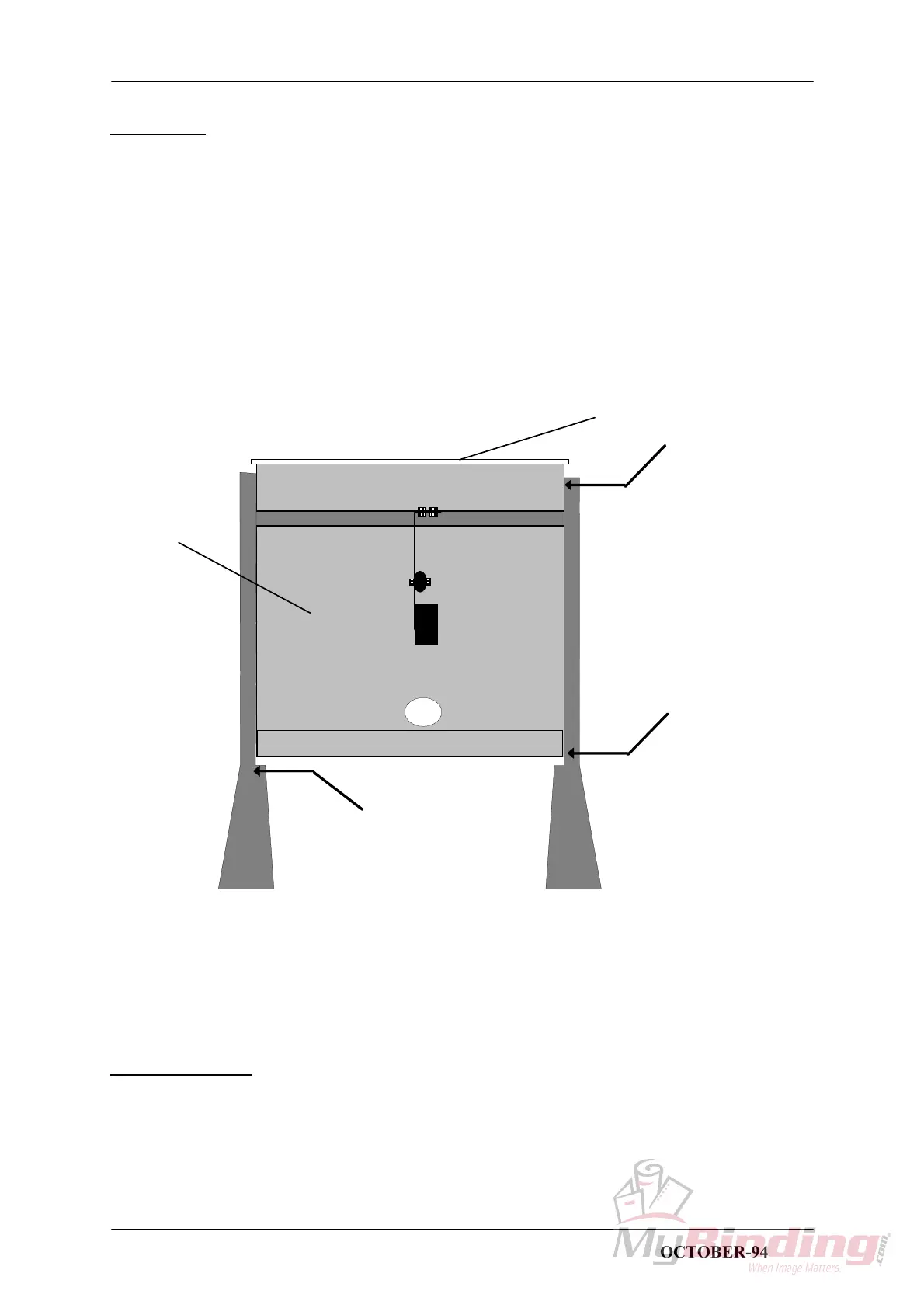

VEIW FROM TOP SIDE
Adjust on these screws
Side guide flush to tool
Fold knife
Side guide flush to tool
Tool A
ADJUSTMENT
1. Loosen the screws holding the Side guides, adjust until the Side guides are flush along the side of
tool A.
STAPLER FOLDER MODEL 60/61 PAGE 2.3 OCTOBER-94
