REP 2.5 Parallelity Staple stop - Anvils
T08009 TJ
PURPOSE
The purpose is to obtain the correct staple position.
1. Switch off the main power switch and disconnect the power cord.
2. Empty Staple magazines.
3. Insert tool B according to the drawing and crank hand wheel to position upper edge of tool at
Anvils.
CAUTION. The clear Indicator switch could be damaged when inserting tool B.

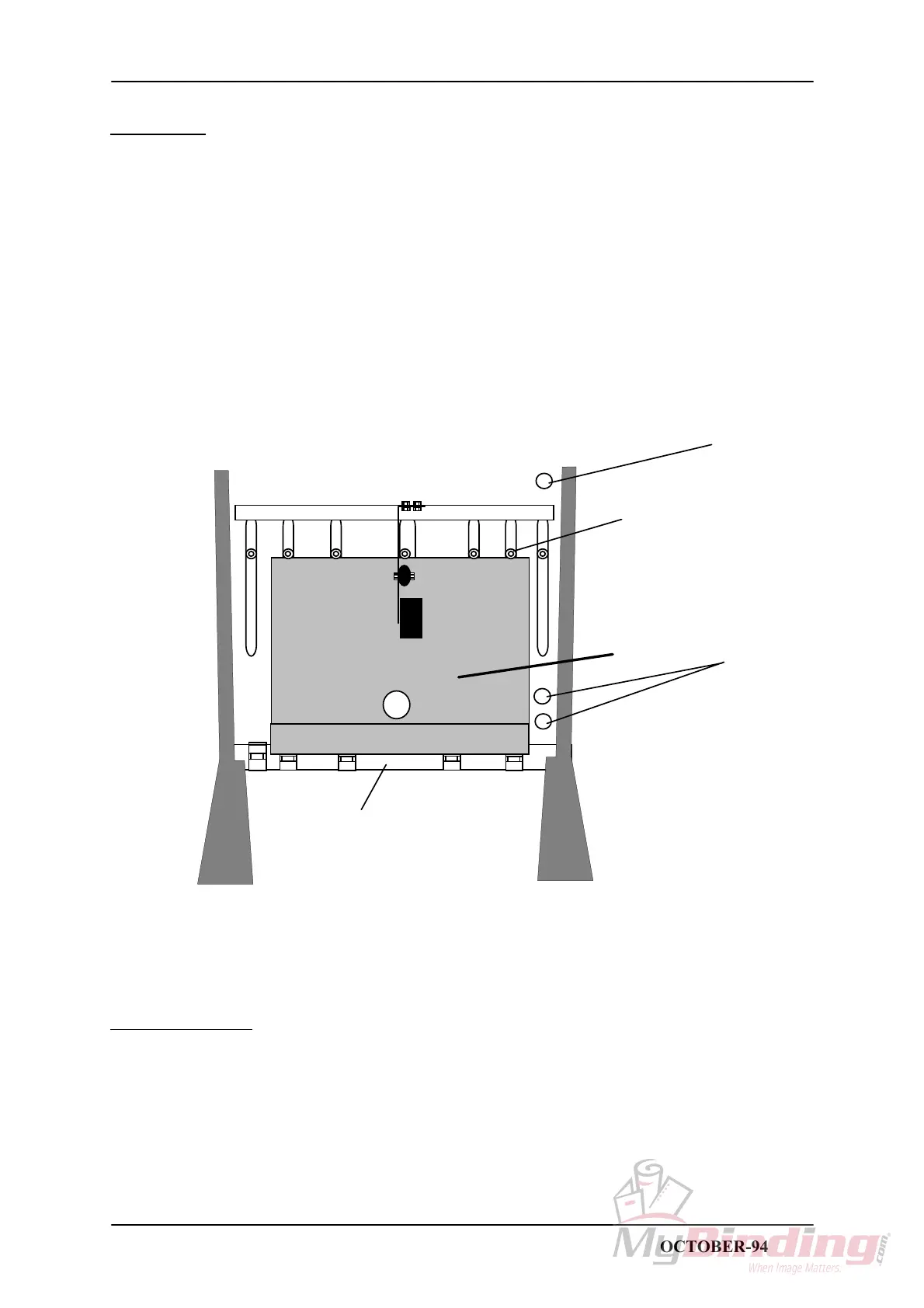

VIEW FROM TOP SIDE
Tool B
1
2
Anvil bar
Staple stop
ADJUSTMENT
1. Loosen one of the screws at position (1) and two of the screws at position (2).
2. Adjust by skewing the staple stop carriage until tool B is aligned with the anvils.
3. Tighten the screws at position (1) and (2).
STAPLER FOLDER MODEL 60/61 PAGE 2.5 OCTOBER-94
