REP 2.6 Parallelity Fold stop - Fold knife
T08009 TJ
PURPOSE
The purpose is to obtain the correct folding position.
1. Switch off the main power switch and disconnect the power cord.
2. Remove Outfeed cover, CRI 1.2.
3. Move Fold knife to top position by turning the shaft on rear side of fold knife motor manually.
4. Turn the hand wheel to fit tool C between the Fold stop and the Fold knife.
5. Check that the Fold stop is parallel with the Fold knife.

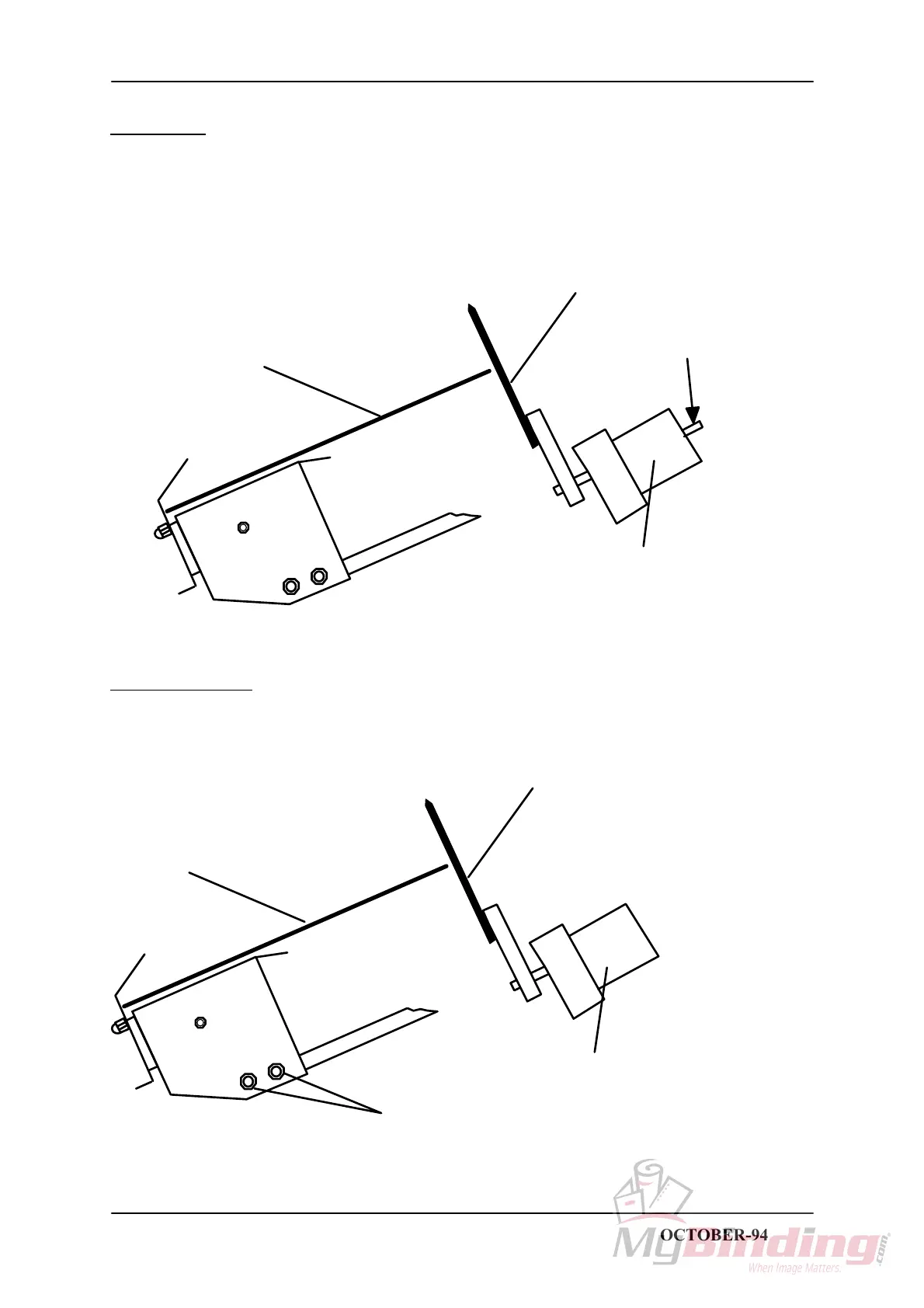

Tool C
Fold knife
Turn here
M2
ADJUSTMENT
1. Loosen the screws 1 and position the Fold stop parallel compared to the Fold knife.
NOTE. Loosen only the screws on one side of Fold stop, if loosen screws on both sides, staple
position on fold may have to be adjusted.
Fold knife
1
Tool C
M2
STAPLER FOLDER MODEL 60/61 PAGE 2.6 OCTOBER-94
