REP 2.7 Positioning staples on fold
T08009 TJ

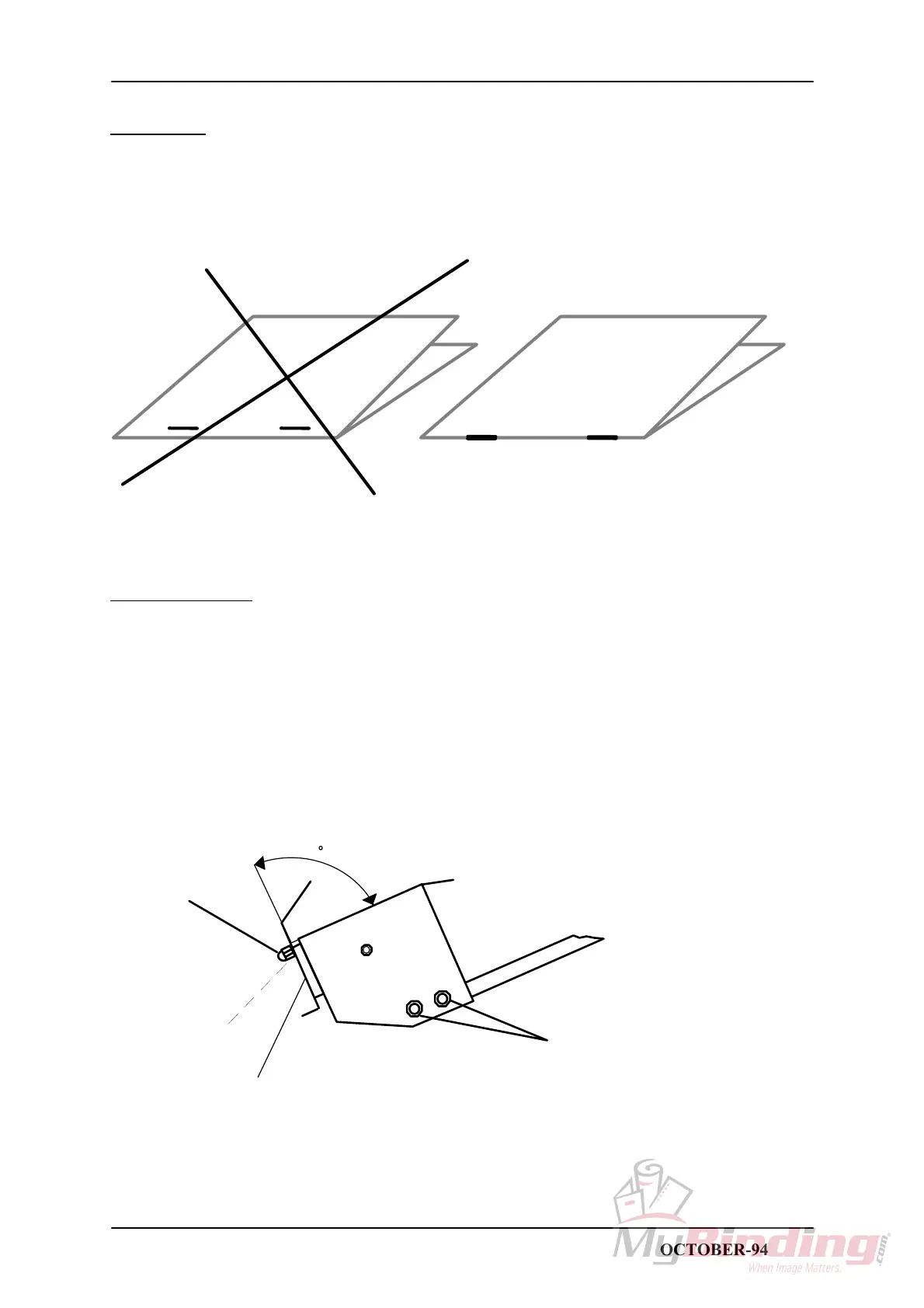

PURPOSE
The distance between the fold stop and the fold knife should be equal to the distance between the fold
knife and the staple outlet. Regardless of where the fold is positioned the staples should always be on
the fold.
1. Run a few sets of two sheets and check the position of the staples.
OK
ADJUSTMENT
1. Remove the nut (1).
2. Position the Fold plate by turning the set screw (2), clockwise will increase the length between
the Fold stop and the Fold knife.
NOTE. The Fold plate should be in an approximately 90
o
angle compared to the fixed part of the
Fold stop. It is not recommended to do a large adjustment on the set screw. If a large adjustment is
needed, loosen the screws (3) on both sides of Fold stop and go to REP. 2.5 for adjustment.
3
2
1
90
Fold plate
STAPLER FOLDER MODEL 60/61 PAGE 2.7 OCTOBER-94
