REP 2.11 Home position Knife motor M2
T08009 TJ
PURPOSE
Switch SW8 stops the Knife motor at home position.
1. Remove Front and Infeed cover, CRI 1.1 and 1.2.
2. Select folding on front panel.
3. Run one set of paper trough and check that the Fold knife stops below the paper path according to
the drawing.
WARNING: This adjustment is performed with power ON, make sure to stay clear from moving
parts.

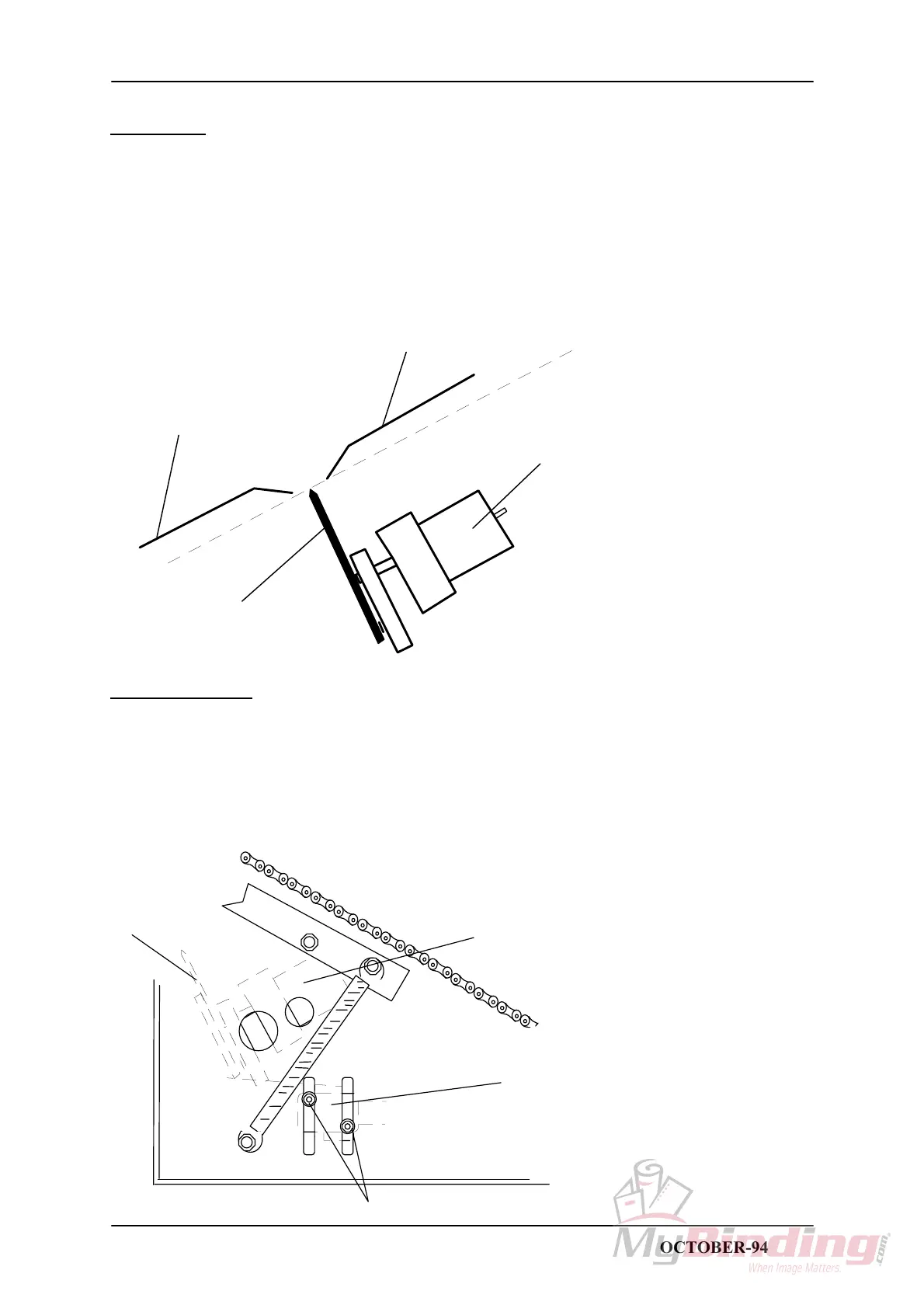

Fold knife
Fold knife motor M2
Paper path middle section
Paper path lower section
ADJUSTMENT
Locate Switch SW8 positioned on side frame operator side.
1. Loosen the screws (1).
2. Position SW8 to obtain the correct home position for the Fold knife.
WARNING: This adjustment is performed with power ON, make sure to stay clear from moving
parts.
SW8
1
Fold knife motor M2
Fold knife
STAPLER FOLDER MODEL 60/61 PAGE 2.11 OCTOBER-94
