REP 2.12 Adjustment of Eject Idler roller
T08009 TJ
PURPOSE
The upper Idler roller has to be positioned at the correct height in order for the Eject motor feed
wheel to feed the set to the Fold stop.
1. Switch off the main power switch and disconnect the power cord.

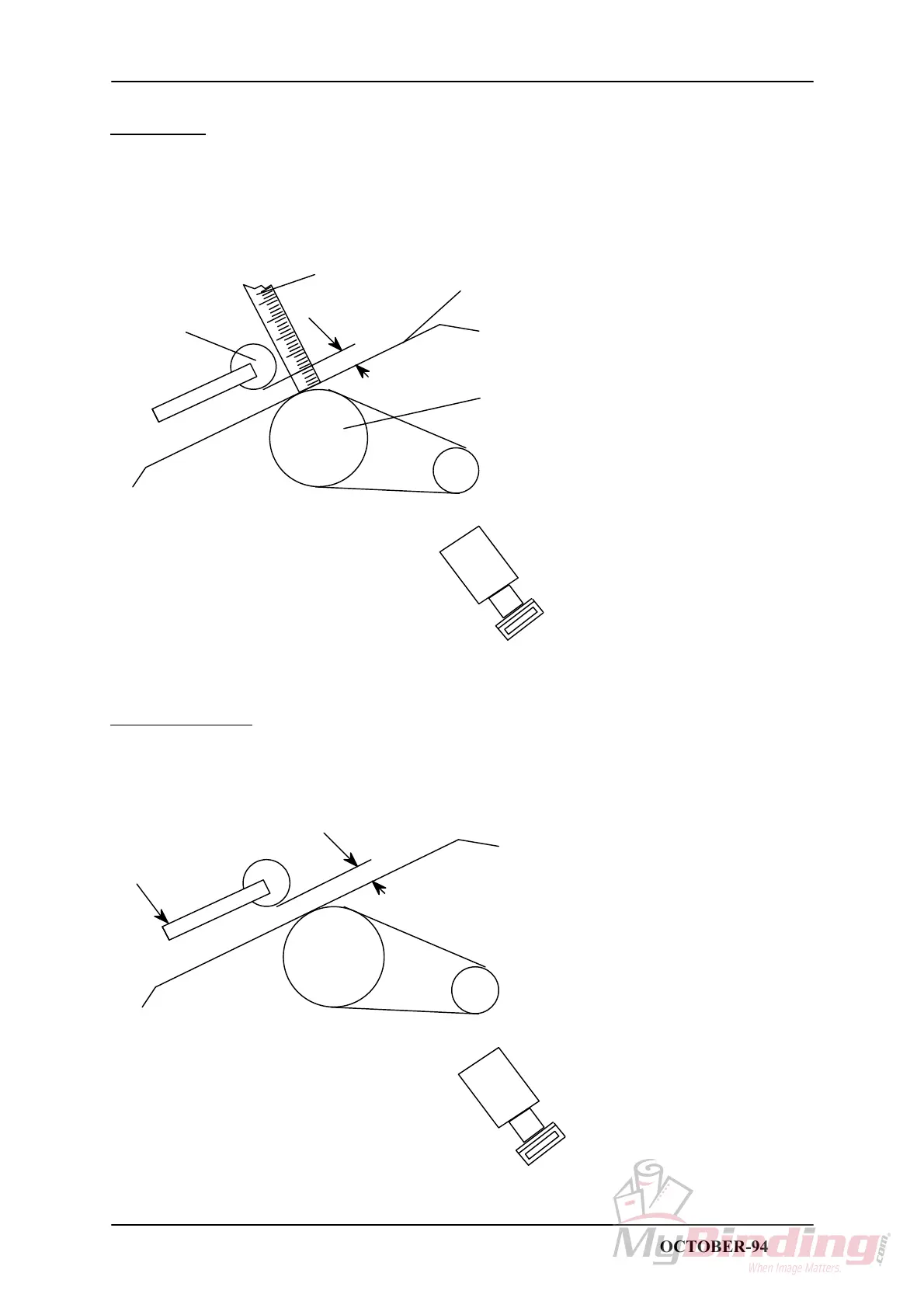

2. Measure the distance from the paper path to the lower end of the Idler roller.
5 mm
S1
Idler roller
Eject motor feed wheel
Paper path
Ruler
ADJUSTMENT
1. Adjust by carefully bending the bracket for Idler roller according to the drawing below.
5 mm
Bend here
S1
STAPLER FOLDER MODEL 60/61 PAGE 2.12 OCTOBER-94
