REP 2.1 Parallelity Fold knife - Anvil bar
T08008 TJ
PURPOSE
The purpose is to align the Anvil bar with the Fold knife to obtain a correct staple position.
1. Switch off the main power switch and disconnect the power cord.
2. Remove front, Rear and Infeed cover CRI.1.1 and 1.2.
3. Empty the stapler magazines.
4. Move the Fold knife to top position by turning the shaft on rear side of Fold knife Motor manually.
5. Move the Side guides to outer position.

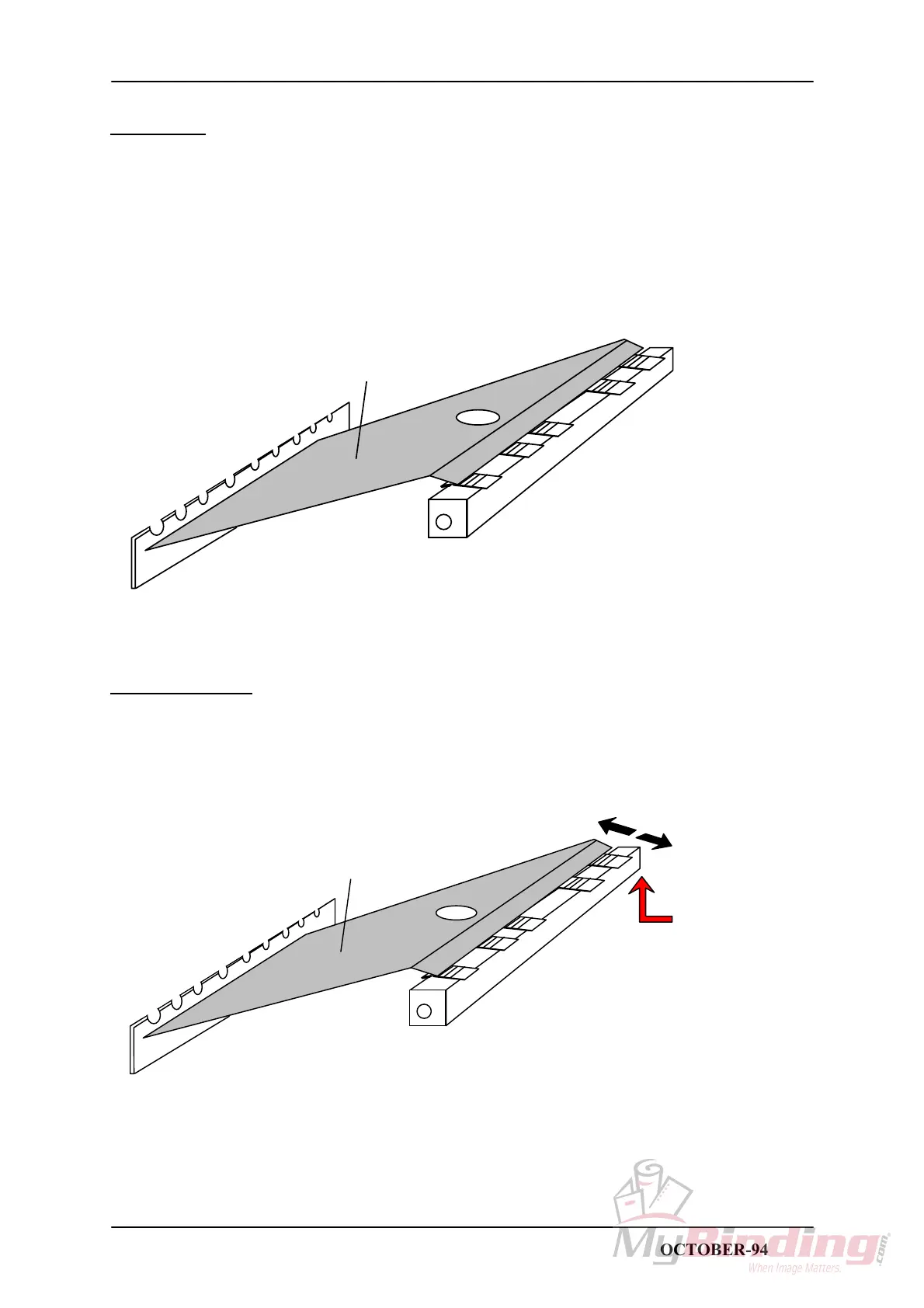

6. Insert tool A and check that the Anvils are aligned with the edge of tool A.
Tool A
ADJUSTMENT
1. Loosen the screw holding the Anvil bar a fraction on the rear side of machine.
2. Tap carefully on the screw with a hammer to position the Anvil bar.
3. Tighten the screw.
CAUTION: Do not move the Anvil bar up or down, that could cause the stapling pressure to be
uneven.
LOOSEN SCREW
ON THIS SIDE
Tool A
STAPLER FOLDER MODEL 60/61 PAGE 2.1 OCTOBER-94
