Plot MAM-880 - Installation; Installation of Transducer

Parameter
Specification
Current range
(A)
Suited main
motor power
(KW)
Remark Description
MAM880（20） 8～20 4～10
Fan has three
levels of current,
such as 0.2-2.5A,
1-5A and 4-10A,
determined
according to
fan’s current
MAM880（40） 16～40 8～20
MAM880（100） 30～100 15～50
MAM880（200） 80～200 40～100
MAM880（400） 160～400 80～200
MAM880（600/5） 100～600 50～300
4、Installation
1、 Installation of transducer
The transducer shall be installed at place where motor’s line current (rated current) can be measured,
thus controller can be set according to instructions on motor’s name plate, the detailed dimensions as
followed:

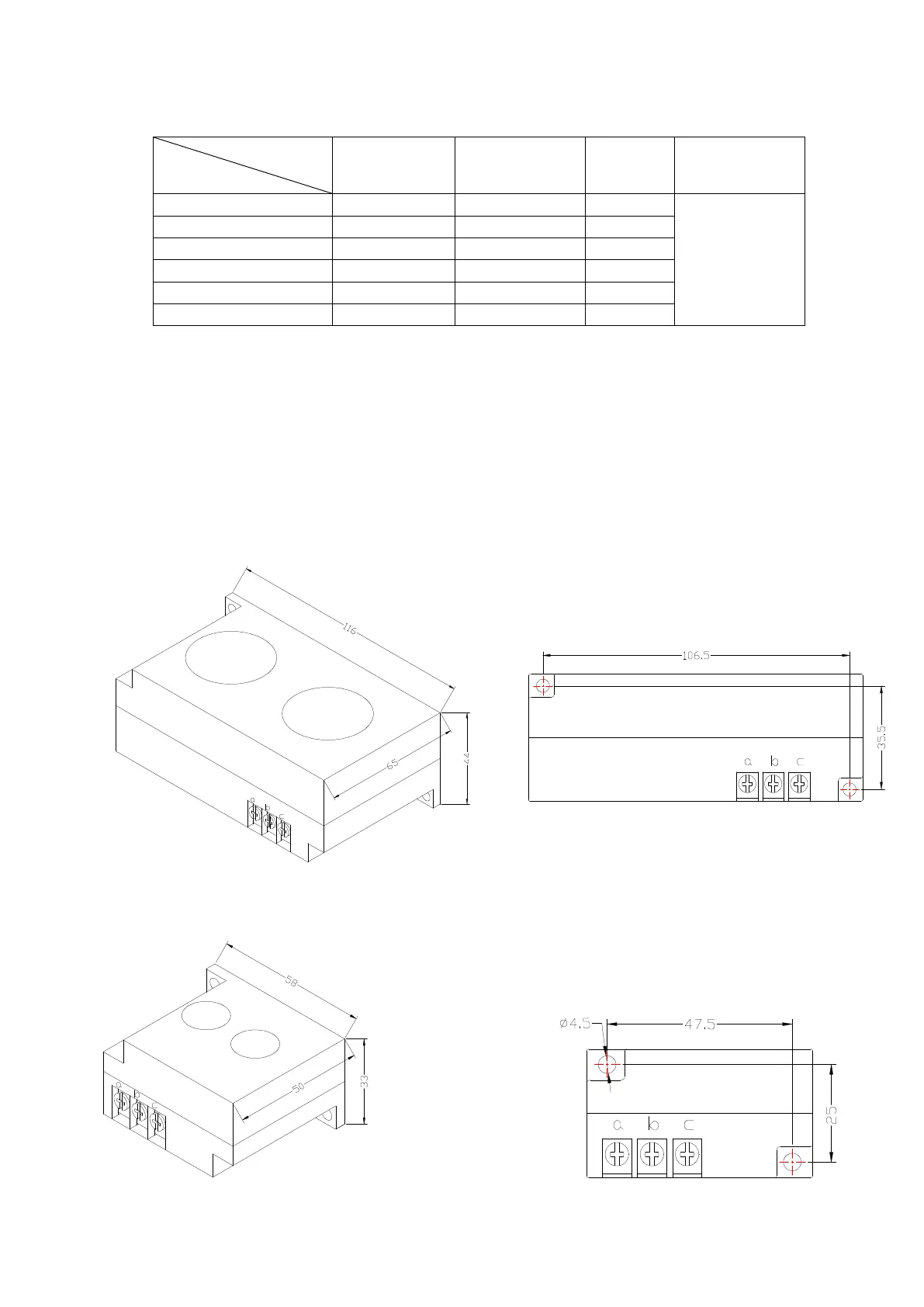

Figure 4.1.1. Structural dimensions of CT1 (ф36 through hole) Figure 4.1.2. Install dimensions of CT1
A
B
B
A
