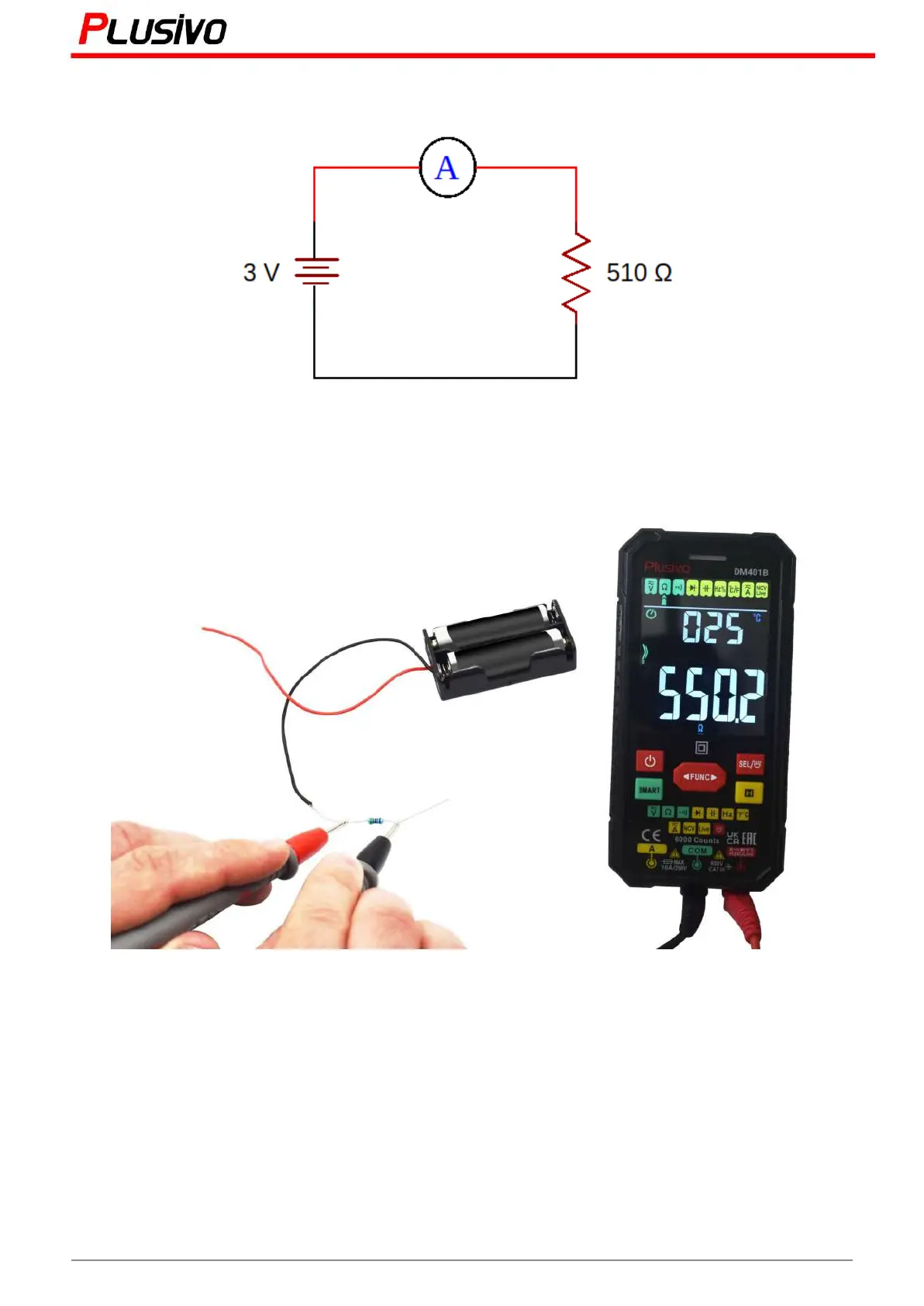

If we built this circuit in reality and measure the current using the multimeter as in the following
schematic:
We should read on the screen of the multimeter: 5.88 mA
But this is if we have an ideal circuit, in reality, we will not get this specific value because each
component in this circuit has tolerance, for example, if we measure the resistance:
The measured resistance in this figure is 550.2 Ω.
Note:
Disconnect the battery when measuring the resistance, otherwise, the multimeter may be damaged.
