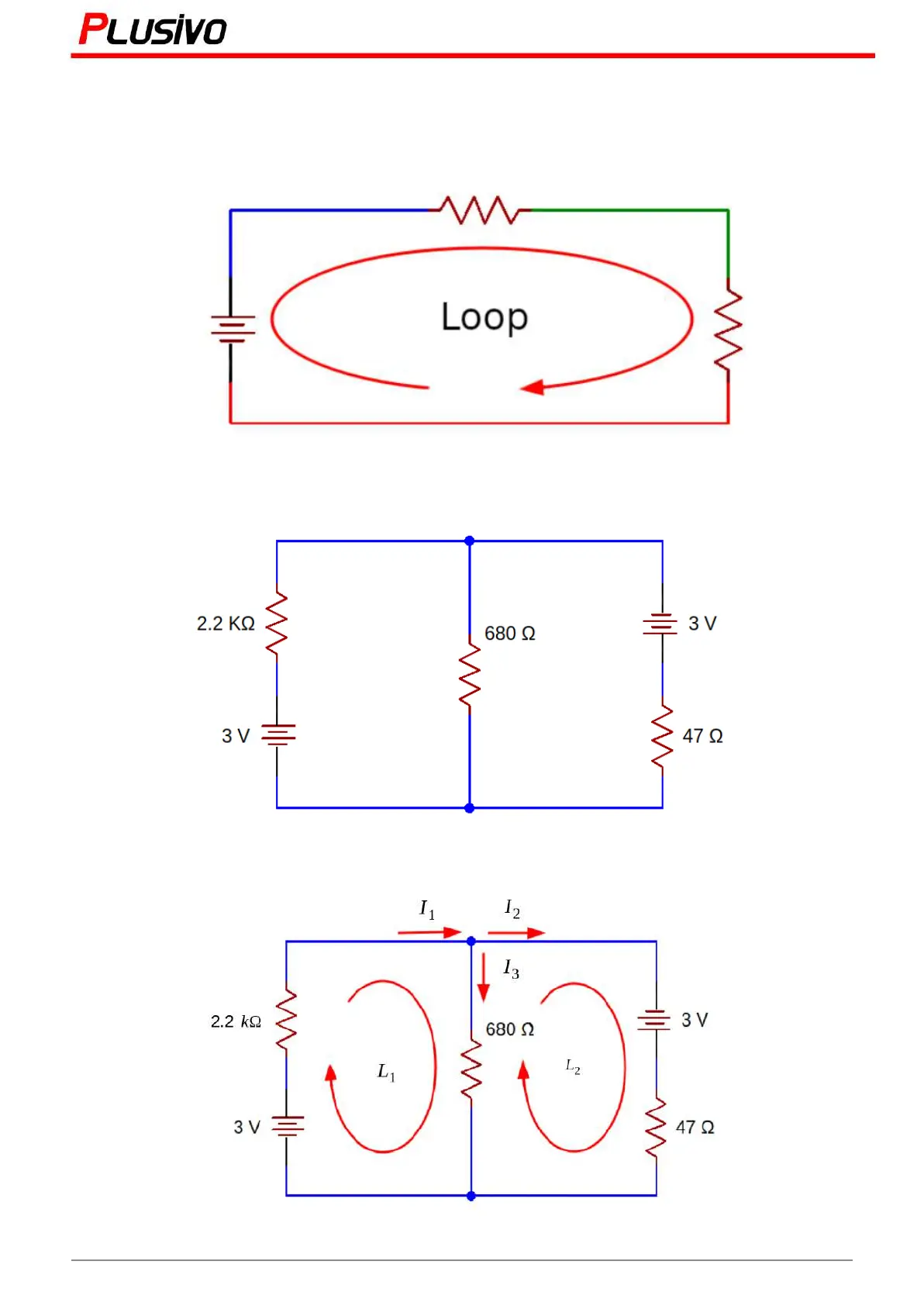

8.3.2 Kirchhoff's Voltage Law
The sum of all the voltages around the loop is equal to zero.
𝑅
1
𝑉
1
𝑅
2
8.3.3 Example
Calculate the voltage around the resistors.
In this case, we are going to use Kirchhoff's law, we need to suppose the paths for off the current
to use Kirchhoff's current law, and we need to suppose two loops to use Kirchhoff's voltage law.
