Now, let us make this circuit in reality and measure the voltage around the resistors using the multimeter.

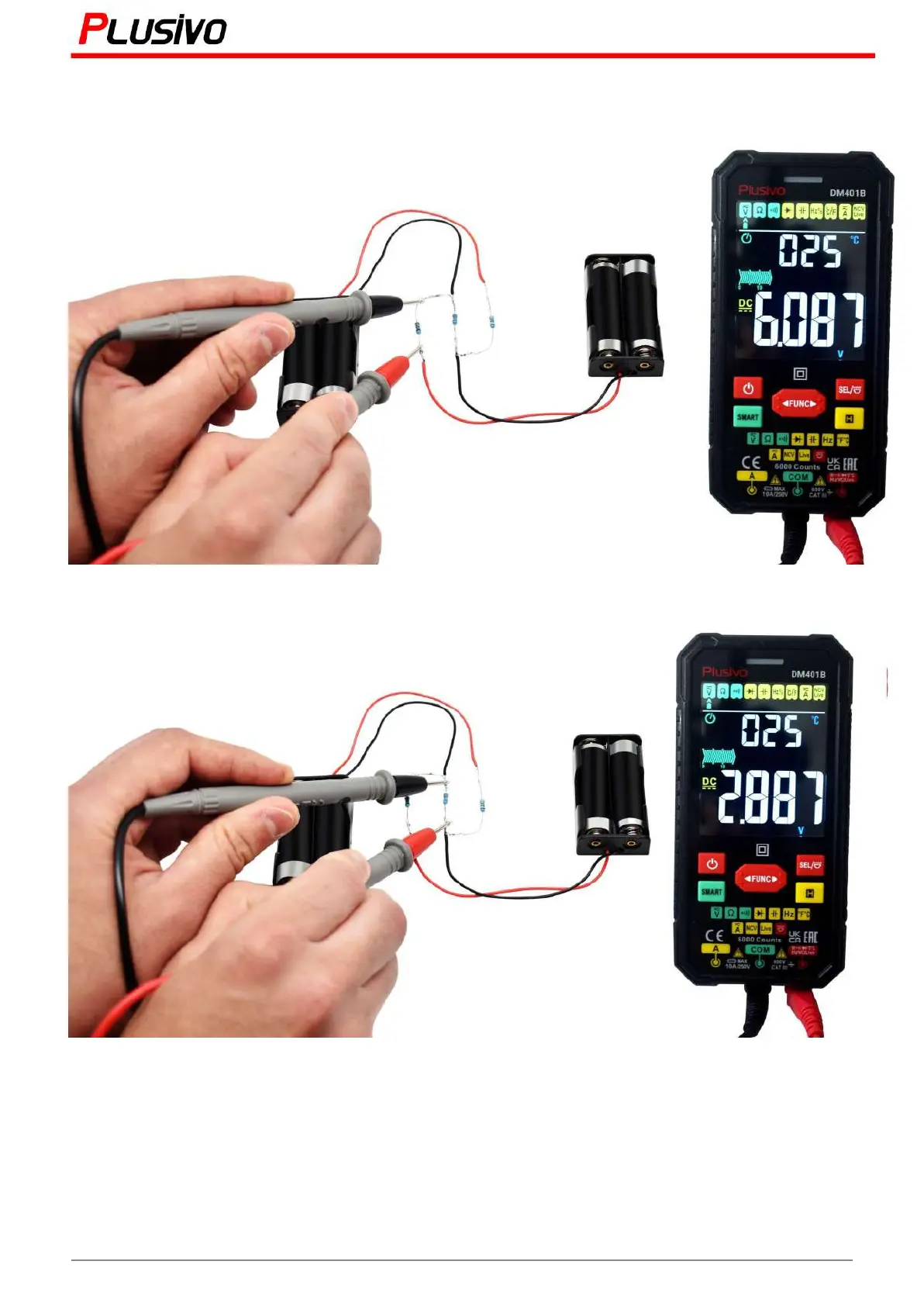

The measured voltage around the 2.2 kΩ resistor is 6.087 V. Please see the set-up below.
The measured voltage around the 680 Ω resistor is 2.887 V. Please see the set-up below.
