And then we measure the resistance between A - B and B - C, the sum of the two values must be
equal to A - C.

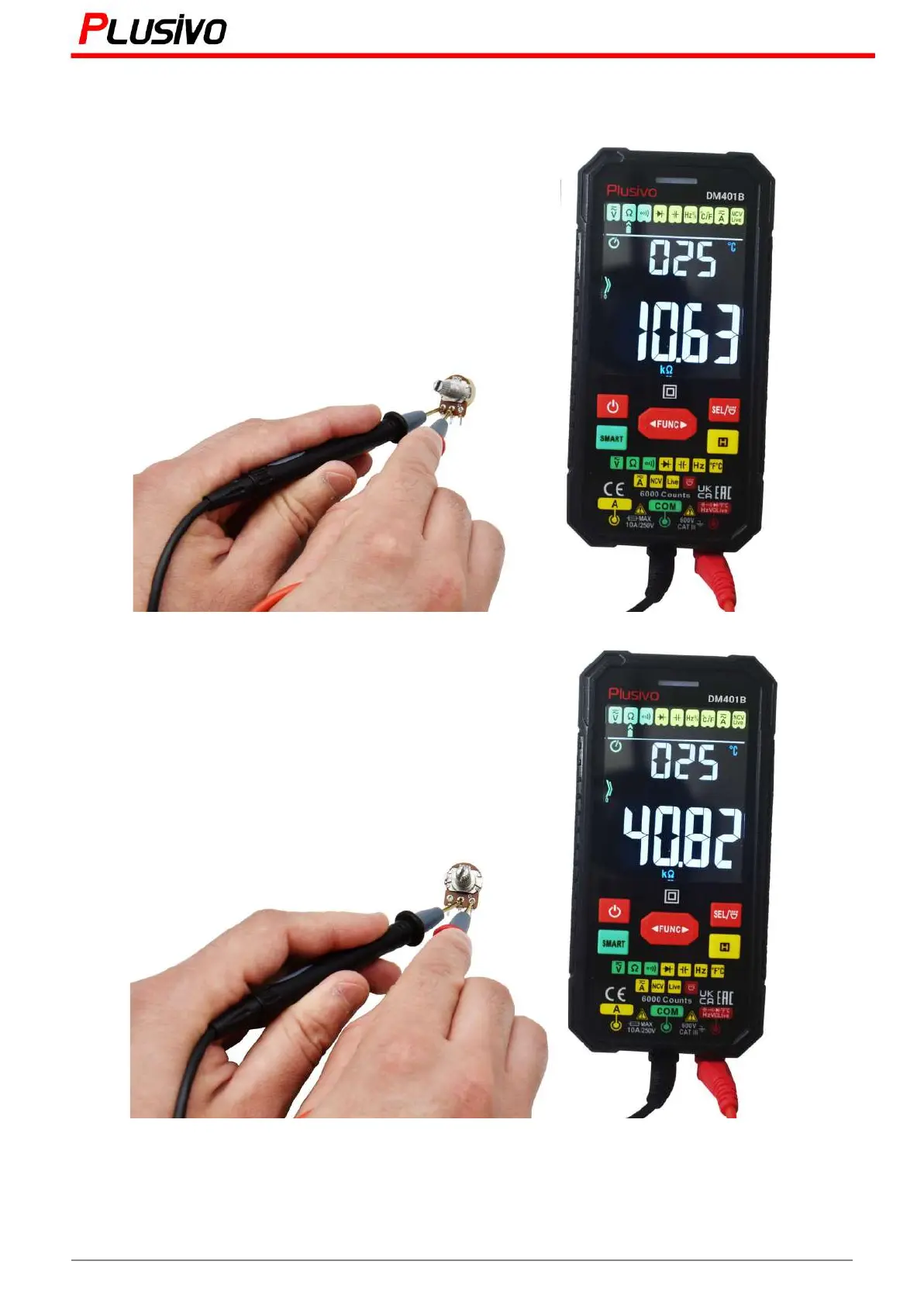

The measured resistance in this figure is 10.63 kΩ.
The measured resistance in this figure is 40.82 kΩ.
, which is almost equal to 50.82 kΩ
10. 63 𝑘Ω + 40. 82 𝑘Ω = 51. 45 𝑘Ω
42
Mastering the Art of Measurement (DM401B Smart Digital Multimeter) r.01 www.plusivo.com
