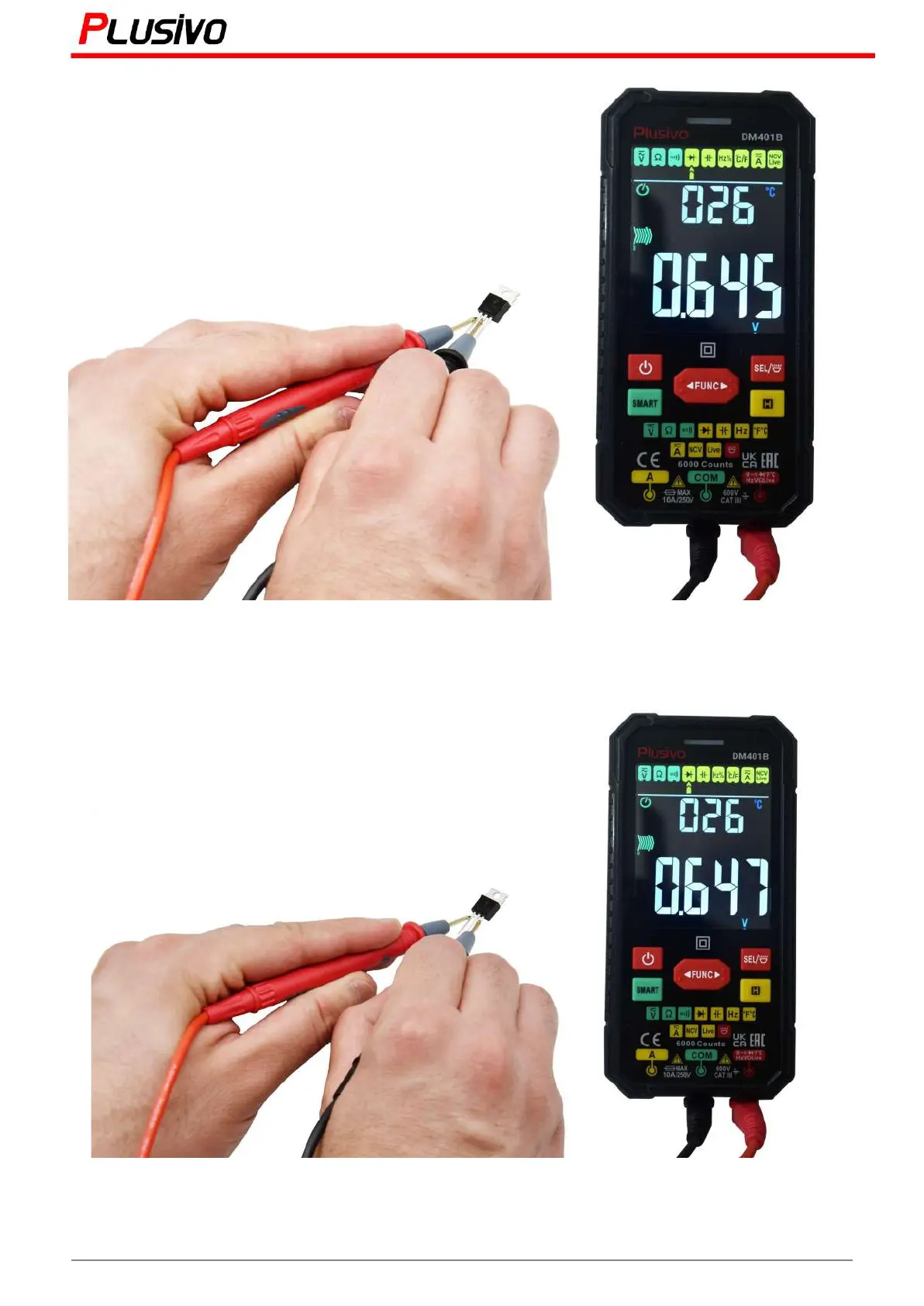

The measured forward voltage is 0.645 V.
To test the second diode (B - E), we need to connect the red probe to the anode which is the
base of the transistor and connect the black probe to the cathode which is the emitter of the transistor.
The measured forward voltage in this figure is 0.647 V.
