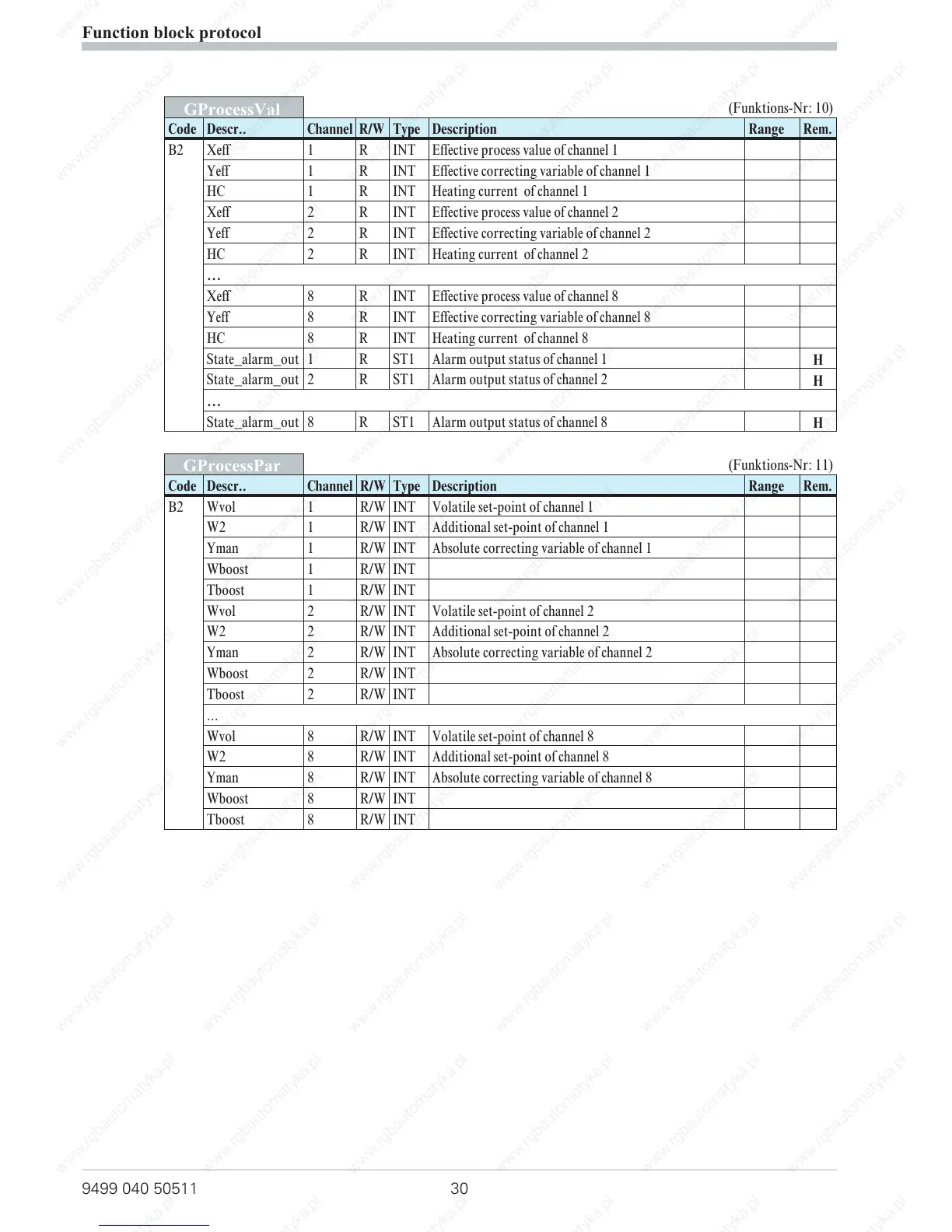

GProcessVal
(Funktions-Nr: 10)
Code Descr.. Channel R/W Type Description Range Rem.
B2 Xeff 1 R INT Effective process value of channel 1
Yeff 1 R INT Effective correcting variable of channel 1
HC 1 R INT Heating current of channel 1
Xeff 2 R INT Effective process value of channel 2
Yeff 2 R INT Effective correcting variable of channel 2
HC 2 R INT Heating current of channel 2
...
Xeff 8 R INT Effective process value of channel 8
Yeff 8 R INT Effective correcting variable of channel 8
HC 8 R INT Heating current of channel 8
State_alarm_out 1 R ST1 Alarm output status of channel 1
H
State_alarm_out 2 R ST1 Alarm output status of channel 2
H
...
State_alarm_out 8 R ST1 Alarm output status of channel 8
H
GProcessPar
(Funktions-Nr: 11)
Code Descr.. Channel R/W Type Description Range Rem.
B2 Wvol 1 R/W INT Volatile set-point of channel 1
W2 1 R/W INT Additional set-point of channel 1
Yman 1 R/W INT Absolute correcting variable of channel 1
Wboost 1 R/W INT
Tboost 1 R/W INT
Wvol 2 R/W INT Volatile set-point of channel 2
W2 2 R/W INT Additional set-point of channel 2
Yman 2 R/W INT Absolute correcting variable of channel 2
Wboost 2 R/W INT
Tboost 2 R/W INT
...
Wvol 8 R/W INT Volatile set-point of channel 8
W2 8 R/W INT Additional set-point of channel 8
Yman 8 R/W INT Absolute correcting variable of channel 8
Wboost 8 R/W INT
Tboost 8 R/W INT
