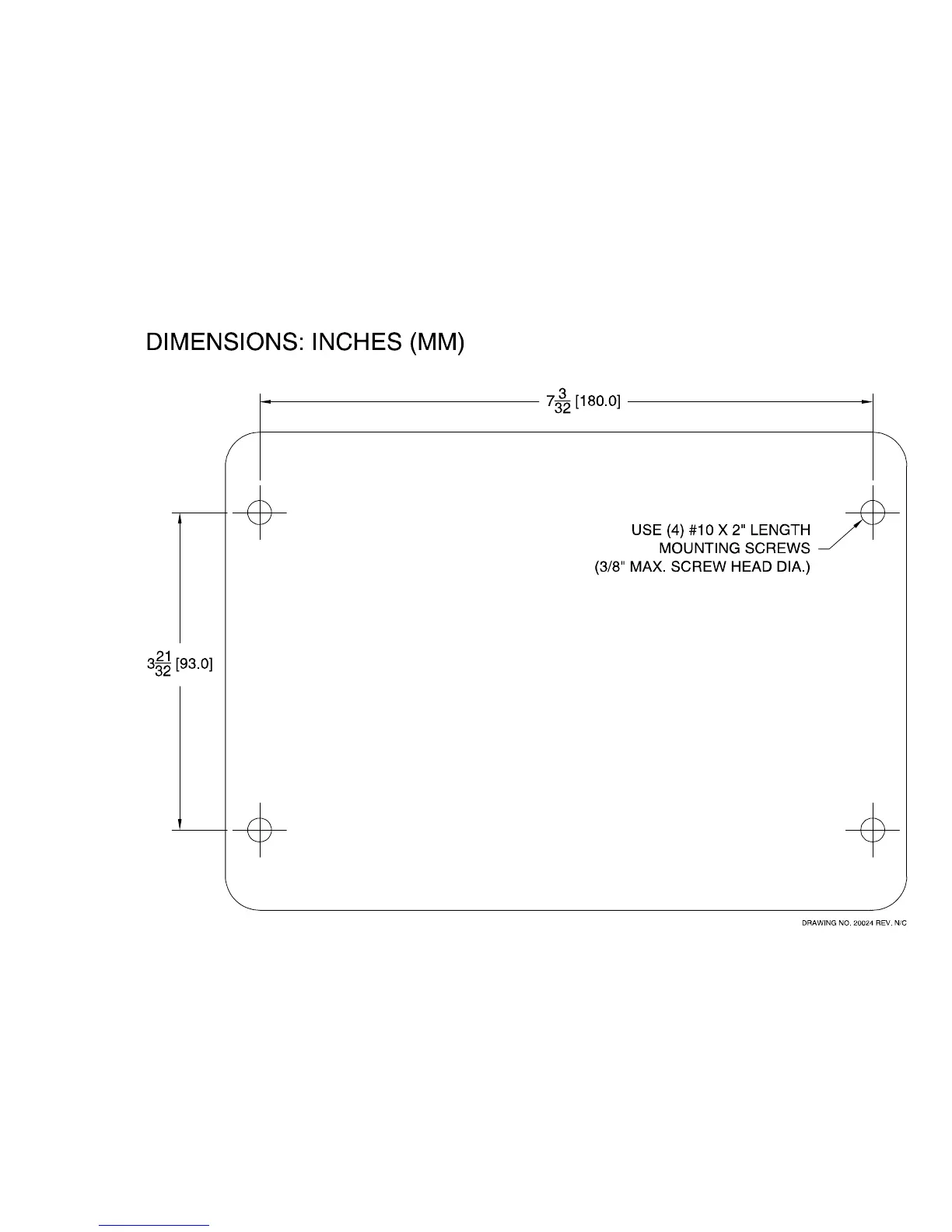

Figure 2.1-2 Mounting Template
DRAWING NO. 20024 REV. N/C
7
3
32
[180.0]
3
21
32
[93.0]
USE (4) #10 X 2 " LENGTH
MOUNTING SCREWS
(3/8" MAX. SCREW HEAD DIA.)
DIMENSIONS: INCHES (MM)
