1.0 Product Overview
The ETD1000 Electronic Tank Display panel is used in applications where it is desired to view TMS
series tank management data from various on-site locations at distances up to 4000 feet (1200M)
away from the main console. Since the ETD1000 is a microprocessor-based, addressable device
communicating over the TMS RS-485 Peripheral Expansion Bus, up to 16 ETD1000 panels may be
connected to a single TMS. Unlike the TD1000 Tandem Remote Display, each ETD1000 may be
operated independently. The ETD1000 is housed in a NEMA 4X enclosure for harsh industrial/
outdoor environments. The display technology employs an ultra-bright, truly sunlight-readable LED
display for maximum reliability in extreme temperatures. The membrane overlay pushbuttons are
one inch on centers for easy operation with gloved hands.

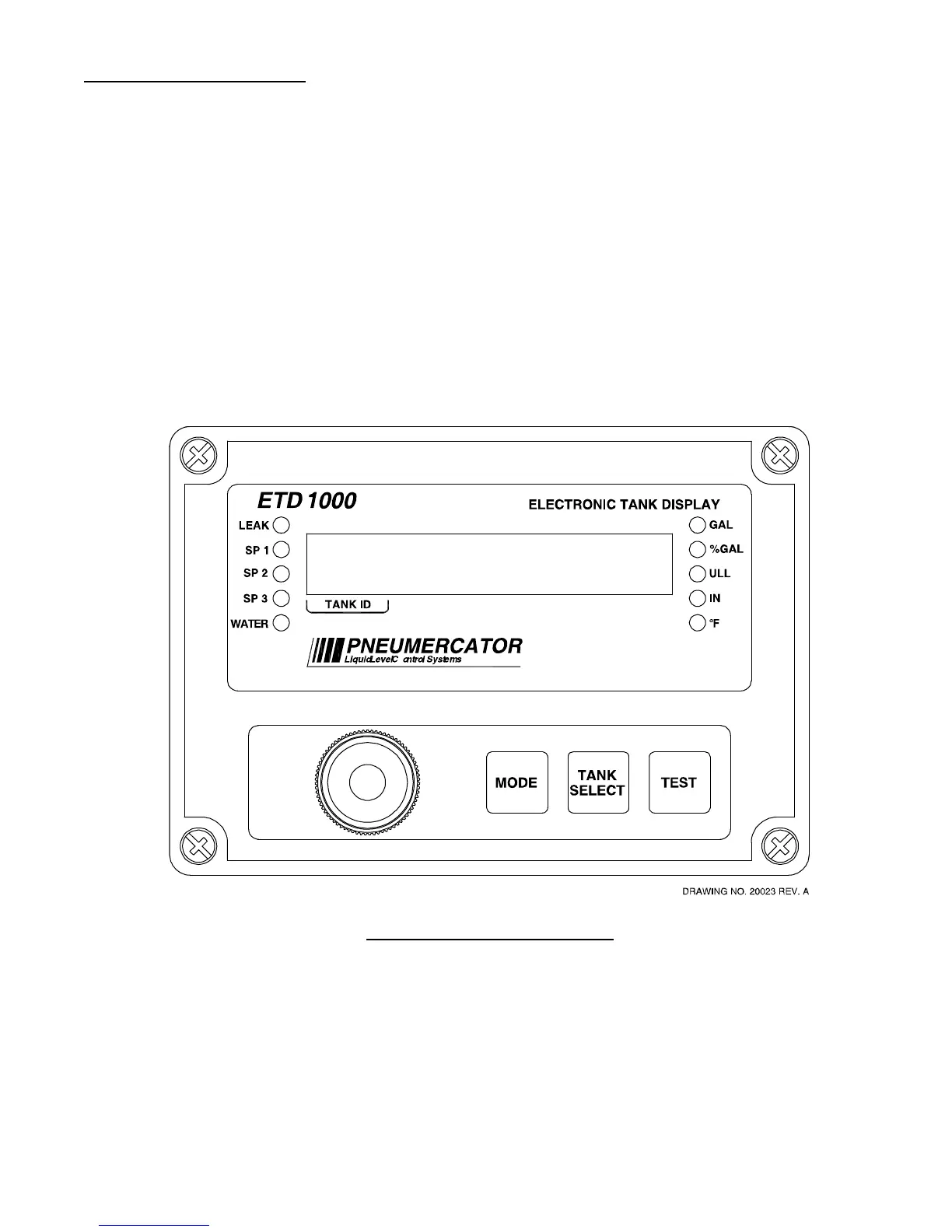

Figure 1.0-1 Front Panel View
DRAWING NO. 20023 REV. A
TEST
SELECT
TANK
MODE
TANK ID
LiquidLevelC ontrol Systems
PNEUMERCATOR
ETD 1000
ELECTRONICTANK DISPLAY
GAL
ULL
%GAL
°F
IN
SP 2
WATER
SP 3
SP 1
LEAK
