Pneumercator ETD1000 - Wiring; AC Power

ETD1000 Instruction Manual - 2017-07-01.docx Page 13 of 28 July 1, 2017
2.2 Wiring
2.2.1 AC Power

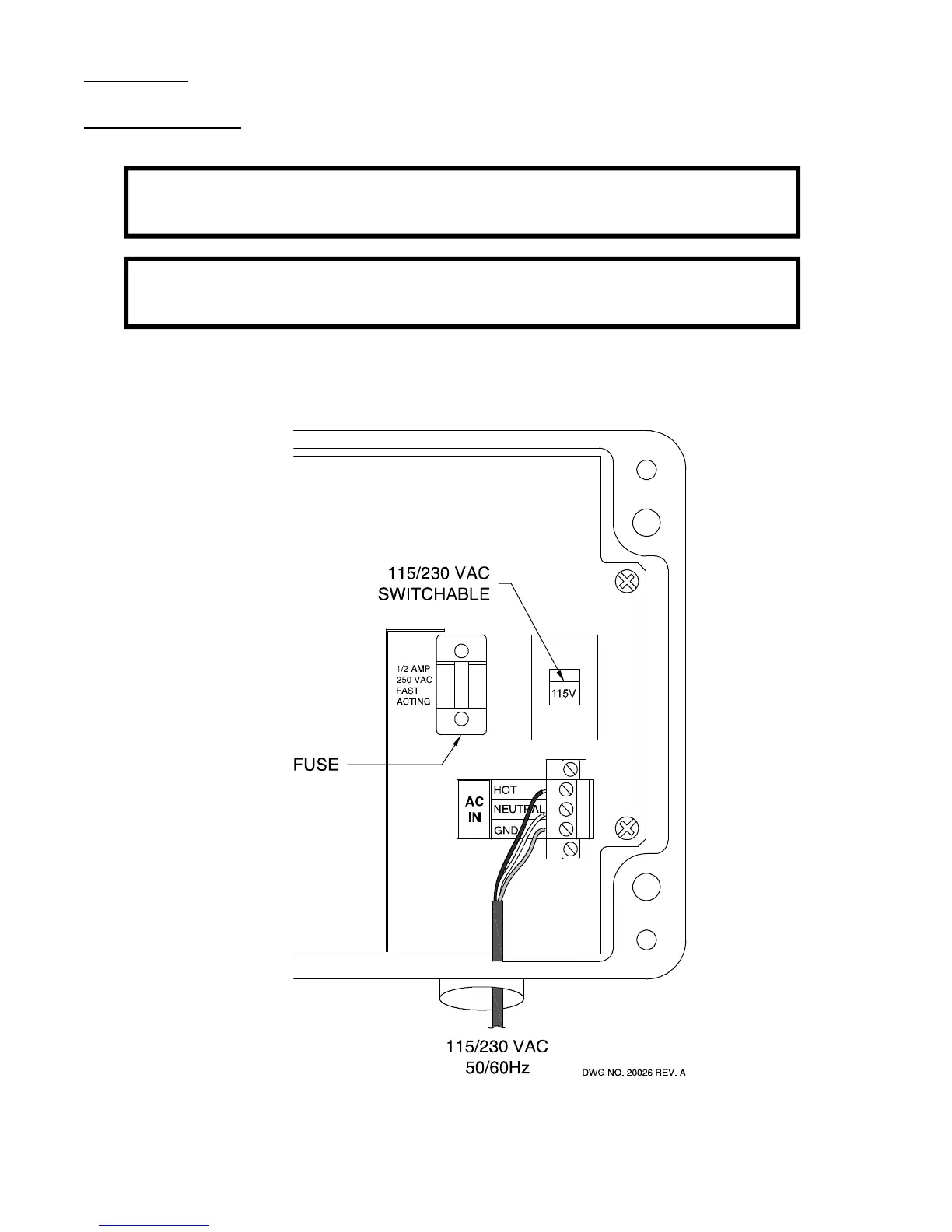

Wire AC power in accordance with Figure 2.2.1-1 below. Be sure to set 115/230VAC selector switch
to the proper voltage. Note that the AC terminal block can be wired in-place or unplugged.
Figure 2.2.1-1
DWG NO. 20026 REV. A
NEUTRAL
115/230 VAC
SWITCHABLE
115V
115/230 VAC
50/60Hz
AC
IN
HOT
GND
1/2 AMP
250 VAC
FAST
ACTING
FUSE
DANGER! AC power must be turned off at the circuit breaker before
attempting to connect AC wiring to this device.
WARNING! Do not connect or disconnect front panel display cable while
AC power is applied. Damage to display or main board may occur!
