ETD1000 Instruction Manual - 2017-07-01.docx Page 19 of 28 July 1, 2017
3.0 Configuration
The ETD1000 provides user-programmable features that allow the operator to alter display and
audible alarm operation as well as control interaction with the TMS for remote alarm
acknowledgement. Some of these programmable features are available through the front panel
pushbuttons, others via on-board dipswitches. No programming is required at the TMS console.
3.1 On-Board Programming
3.1.1 Setting Logical Address – S3
The TMS series console has the ability to individually address up to sixteen (16) ETD1000 remote
displays. Rotary dipswitch S3 is used to select unique addresses for each ETD1000 connected to
the same TMS. Note that address order is not important.

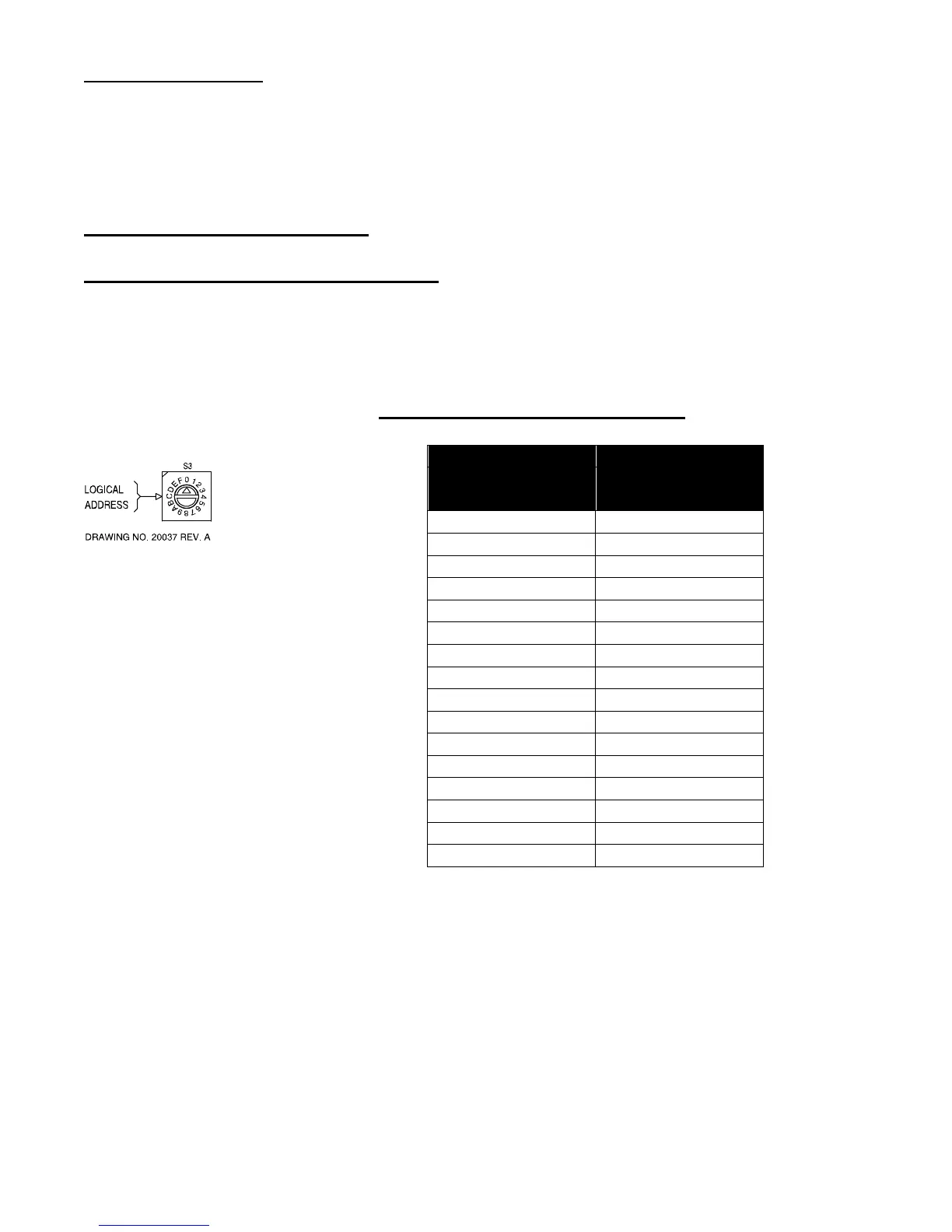

Table 3.1.1-1 S3 Assignments
DRAWING NO. 20037 REV. A
S3
LOGICAL
ADDRESS
S3 ETD1000
Address
Select
Device
A
ddress
01
12
23
34
45
56
67
78
89
9 10
A
11
B 12
C 13
D 14
E 15
F 16
