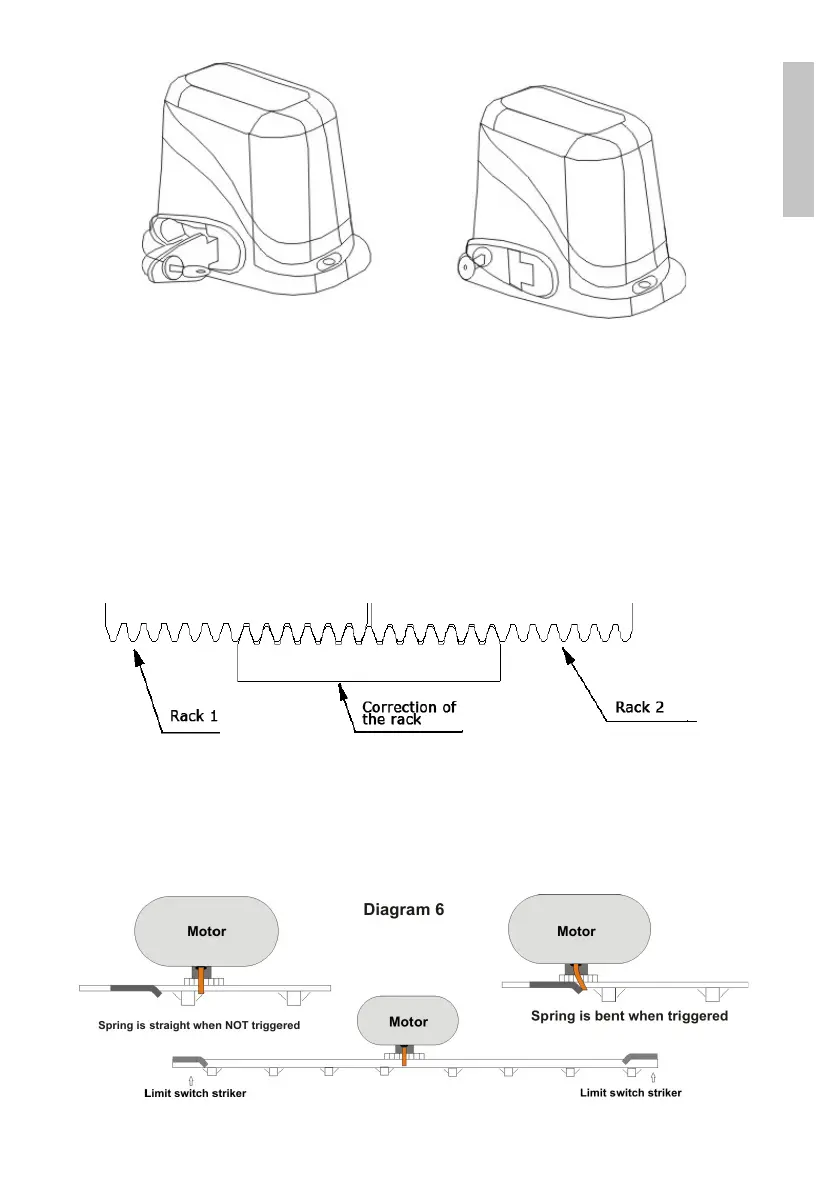

» Position the first piece of rack on the gear leaving a space of 2-3 mm
between the rack and the wheel, then fix it on the gate.
» Manually move the gate back and forth to make sure the rack slides well
on the gear.
» Assemble the following pieces of rack, making sure they are perfectly in
line with each other.
» Manually move the gate back and forth after each piece of rack installed
to make sure the gate slides easily.
» The stops must be installed now. They are mounted on the rack and lock
the engine when the rack reaches the end, when the gate is opened or
closed.
