PM84 Android 13 User Manual
Getting Started
5
© 2023 Point Mobile Co., Ltd. All rights reserved
No
Name
Description
11
Hand strap hole (top / bottom)
Mount hand strap
12
Rear I/O connector
Connector for sled type accessories (RF88 or gun handle)
13
Battery release buttons
Press the buttons in to release the battery
14
Scanner
Scan a barcode
15
Power button
Turn on/off the device
16
Rear camera & Flashlight
Take a picture & Use flashlight in camera or torch mode
17
Scan button (Right)
Scan a barcode by pressing (Programmable button)
18
Battery
Provide power (battery and battery cover are combined)
16
11
18
13
14
15
17
12

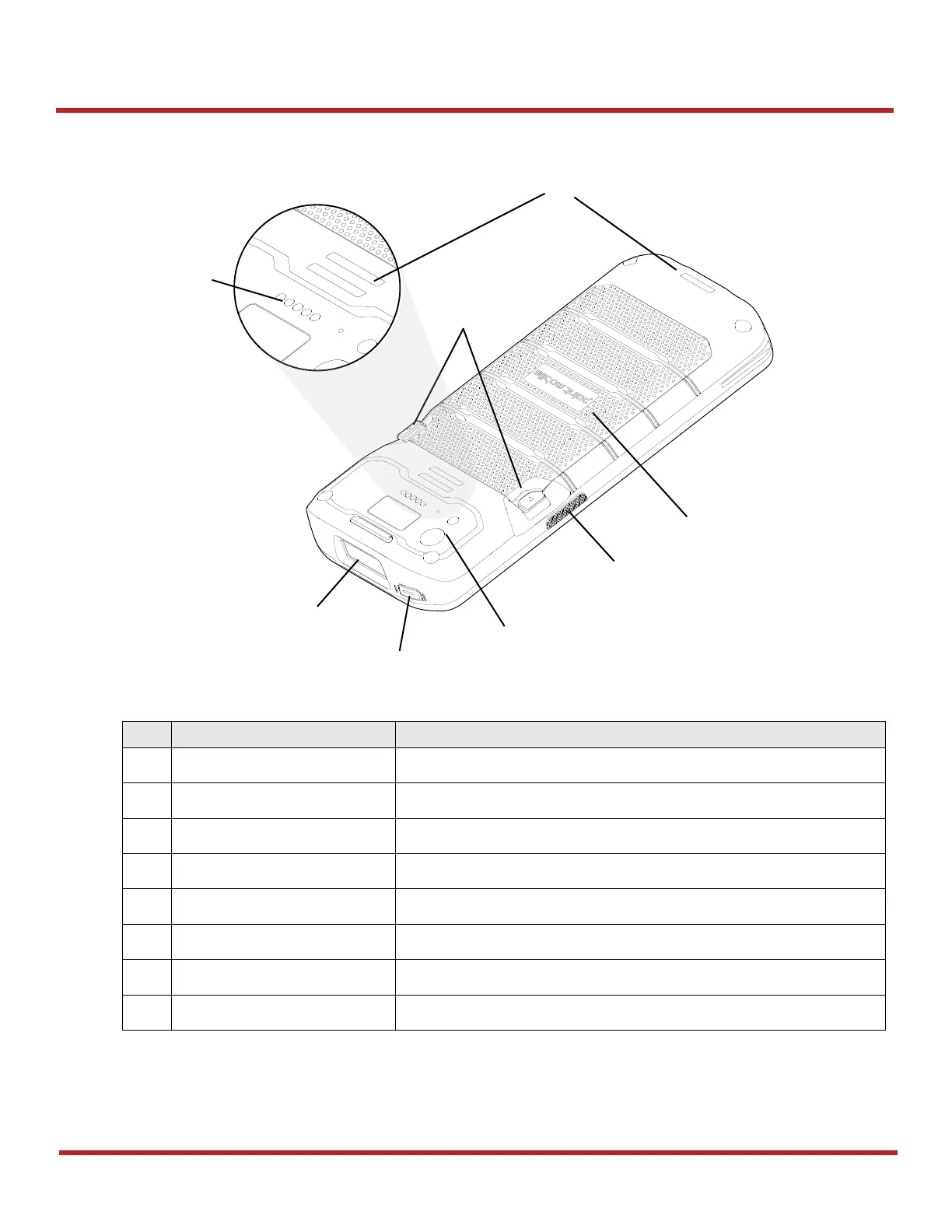

Figure 2 PM84 rear + right view
