Point Mobile PM84 - Getting Started; Device Parts

PM84 Android 13 User Manual
4
© 2023 Point Mobile Co., Ltd. All rights reserved
Getting Started
Device Parts
No
Name
Description
1
Receiver
Use with making a phone call
2
LED indicator
Indicate the power status and notification.
Find more details in LED indicator
3
Scan button (Left)
Scan a barcode by pressing (Programmable button)
4
Volume buttons
Control the volume (Programmable button)
5
Microphone
Use for collecting sound
6
I/O connector for cradle
Connector for charging and communication with cradle
7
USB connector
USB Type C connector for charging and data communication
8
Speaker
Ring system sound
9
Touch screen
Displays all operating screen
10
Front camera
Take a picture

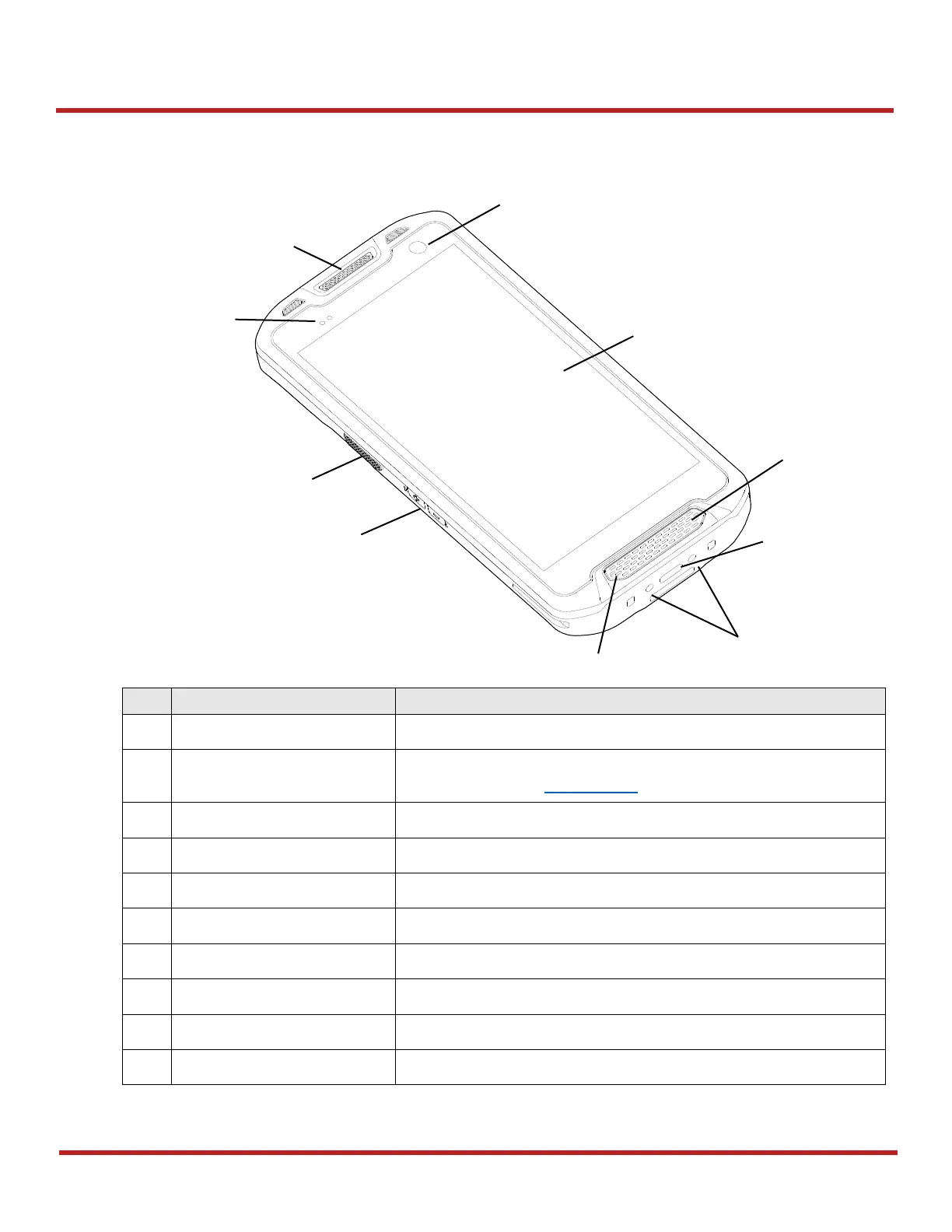

Figure 1 PM84 front + left view
2
10
9
7
3
6
1
4
5
8
