point 3 Series - Installation and Fitting

29
GB
Note: The safety distance between the sides of the hob and the
inner surfaces of the worktop should be at least 3mm.
Note: The safety distance between the hotplate and the cupboard
above the hotplate should be at least 760 mm.
SELECTION OF INSTALLATION EQUIPMENT
INSTALLATION

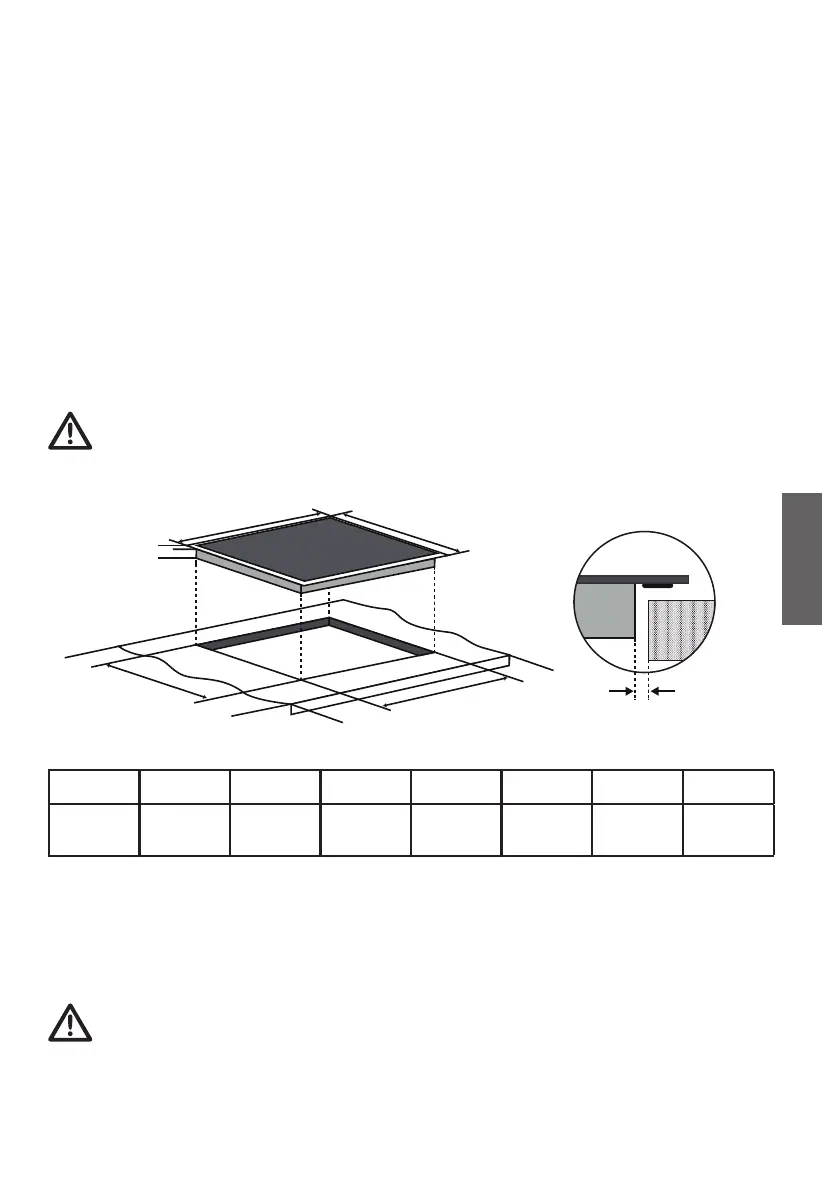

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select
heat-resistant and insulated work surface material (Wood and similar
fibrous or hygroscopic material shall not be used as work surface material
unless impregnated) to avoid the electrical shock and larger deformation
caused by the heat radiation from the hotplate. As shown below:
Under any circumstances, make sure the Induction cooker hob is well
ventilated and the air inlet and outlet are not blocked. Ensure the
induction cooker hob is in good work state. As shown below
3mm Min.
F
H
D
L
W
x
x
x
B
A
SEAL
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) F (mm)
590 520 62 58 50 min. 3 min.
560+4
+1
490+4
+1
