Polaris Automatic Gate Operators 500 Single - Control Board Layout Description

Page
16

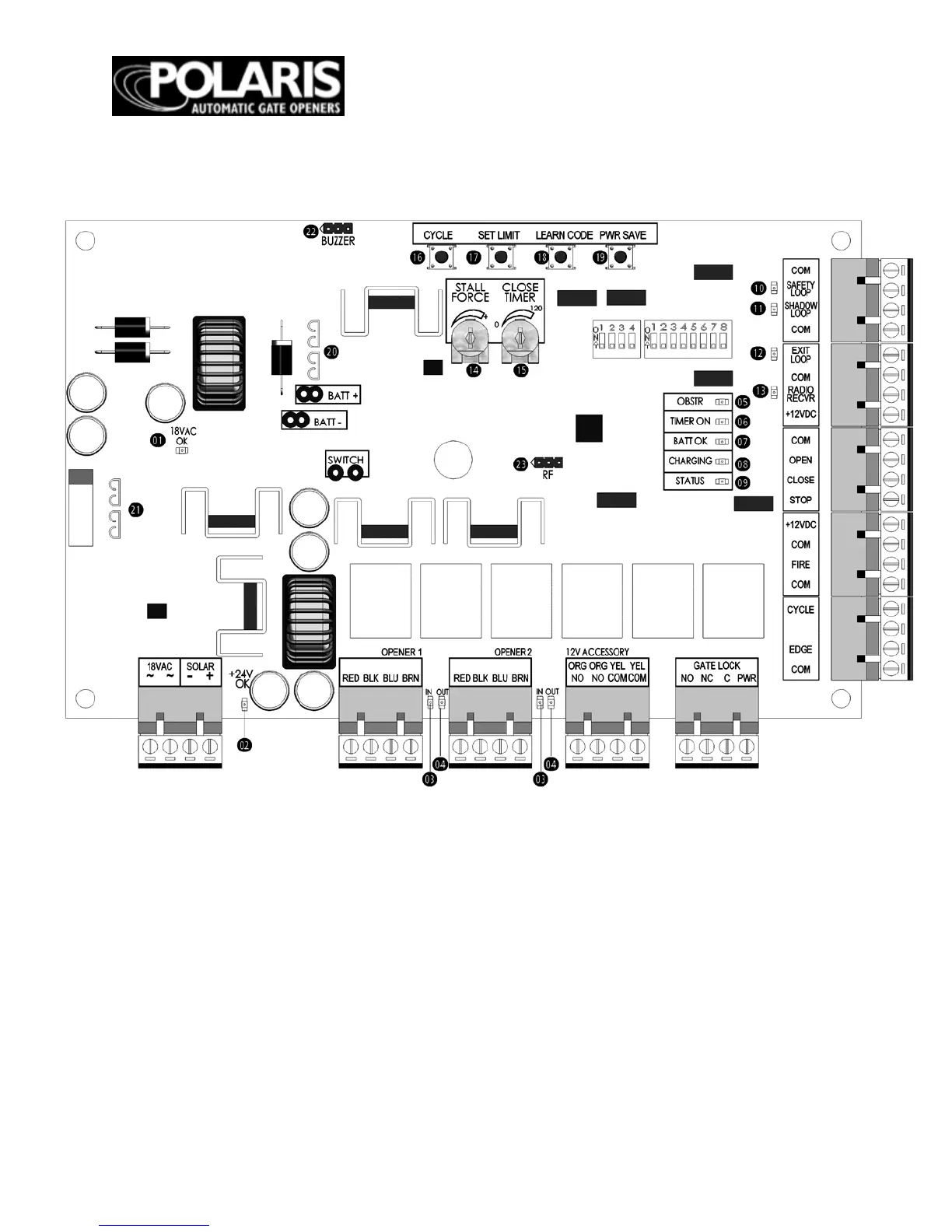

Board Layout Description
LED’s
1. 18 VAC Power
2. 24V Converter
3. Gate Operator Retracting
4. Gate Operator Extending
5. Obstruction
6. Auto Close
7. Battery OK
8. Battery Charging
9. Status
10. Safety Loop
11. Shadow Loop
12. Exit Loop
13. Radio Receiver
Potentiometers
14. Stall Force Adjustment
15. Auto Close Adjustments
Buttons
16. Cycle
– used as an input device
17. Set Limit
18. Learn Code
19. Power Save
Fuses
20. 15 amp Fuse
21. 4 amp Fuse
Connectors
22. Buzzer Connection
23. RF Board Connection
