WIRING OPERATOR
NOTE: Before powering, gate operator must be
connected to the control box
– damage may occur if
gate operator is connected directly to a battery or
other power source.

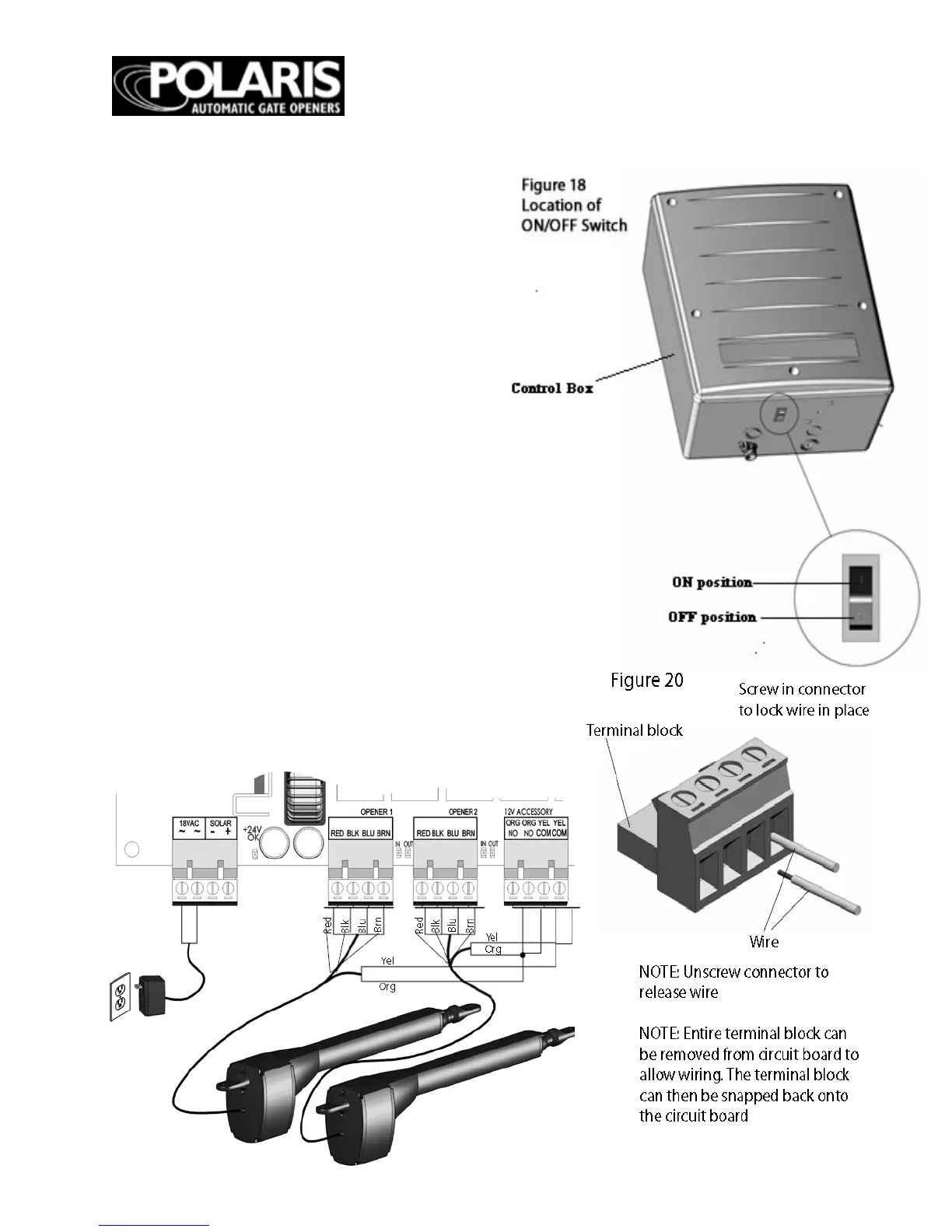

Step 1
Ensure the control box power switch is in the OFF
position. The control box power switch is located on
the bottom of the control box.
NOTE: Use only 16 gauge dual conductor, multi-
stranded, direct burial wire for AC power hookup.
Follow local electrical codes.
Step 2
If using AC power to charge the battery, connect wire
to the control box as shown in fig. 19.
If charging battery with a solar panel(s), refer to
Accessory Hook
-Up Diagram fig. 32 on page 28.
Connect wires from primary operator (and secondary
operator if installing on a dual gate) to the control box
as shown in fig. 19. Wire should be buried in
accordance with
local codes.
WARNING: DO NOT CONNECT BOTH
TRANSFORMER AND SOLAR PANEL. THIS
SYSTEM IS DESIGNED TO RUN ON ONLY ONE
POWER SOURCE. CONNECTING BOTH POWER
SOURCES
CAN RESULT IN DAMAGE TO CIRCUIT BOARD
AND WILL VOID WARRANTY.
Figure 19
