Polaris Automatic Gate Operators 500 Single - Accessory Hook Up Diagram: Communication and Locks; Communication and Lock Accessory Wiring

Page
31

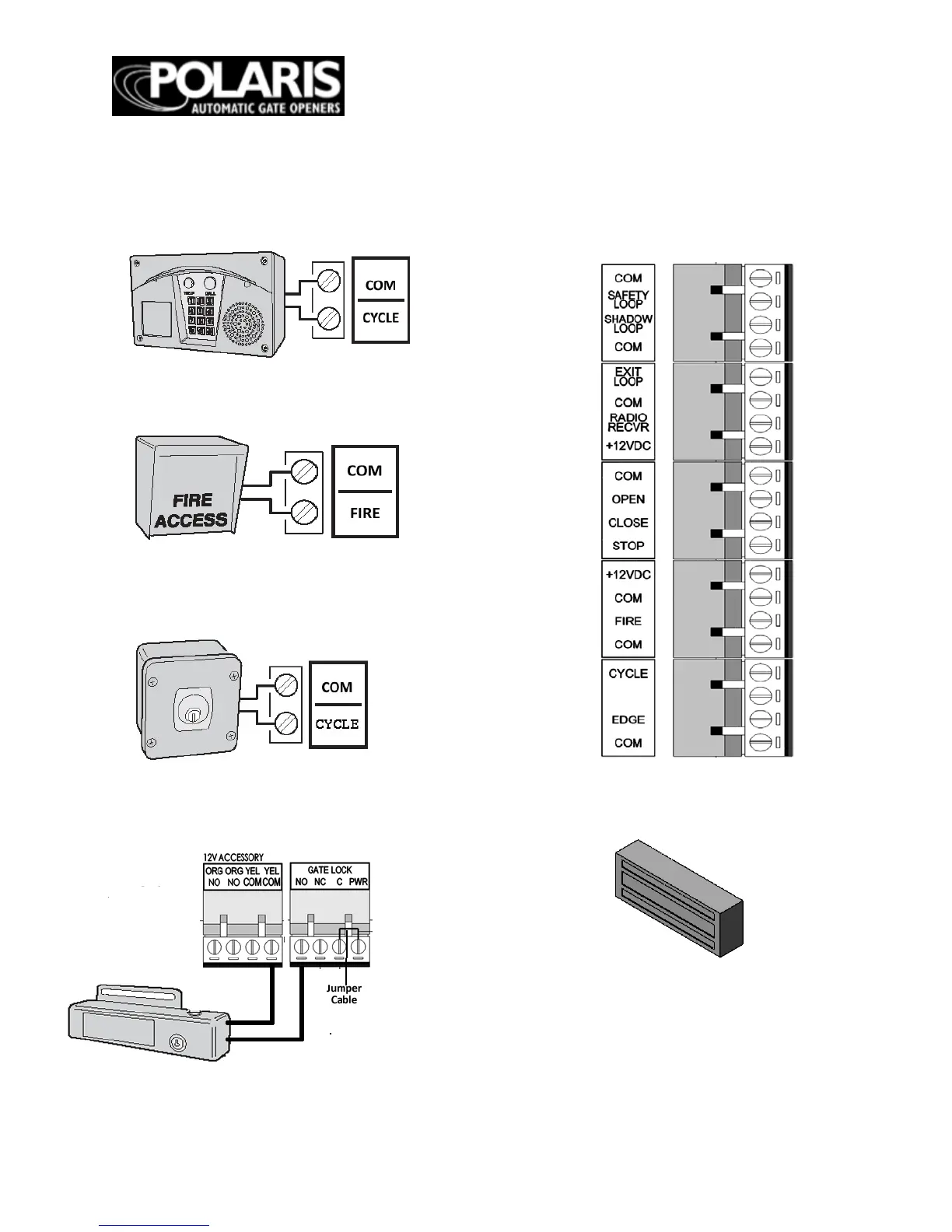

ACCESSORY HOOK UP DIAGRAM
Telephone Entry System
Fire Access Control
Keyswitch Control
Solenoid Lock- #1 see page 30.
Accessory Connections Strip
Magnetic Lock- #2 see page 30
Please refer to Magnetic
Lock instruction manual for
connection instructions.
Connections differ for 12v or
24v connection.
