117
MAINTENANCE
Clutch System
Drive Belt Installation

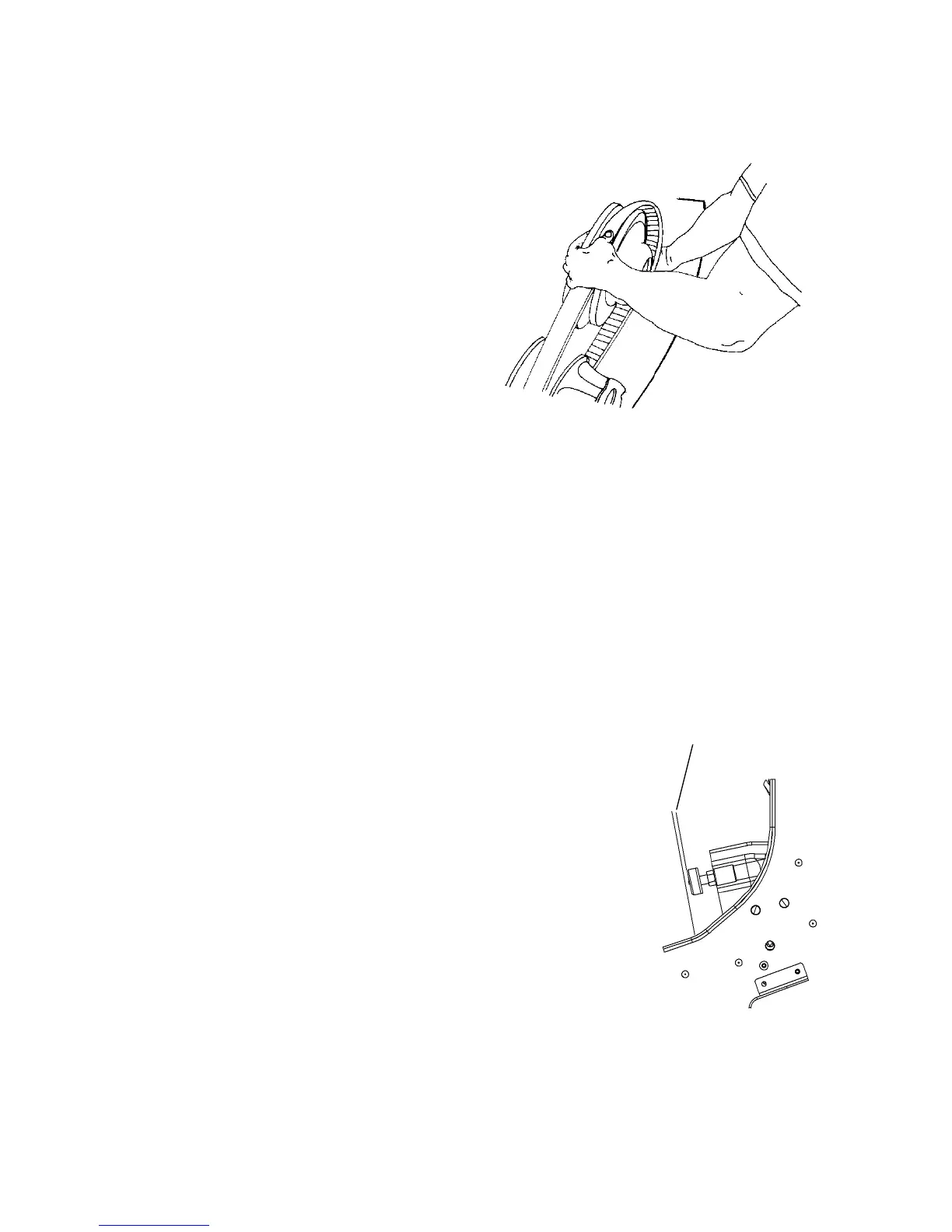

1. Drop the drive belt over the
drive clutch and pull back the
slack.
NOTE: To ensure satisfactory
belt life, install belts so
they operate in the same
direction of rotation by
positioning the identifica-
tion numbers so that you
can read them. If
required, separate the
sheaves as outlined in
the belt removal proce-
dures.
2. Rotate the L-wrench counterclockwise to tighten the sheaves while
working the belt to the outer edge of the sheaves.
3. Remove the L-wrench and store it in the tool kit.
4. Reinstall the side panel.
5. Close and secure the hood.
To r q u e S t o p
Periodically check torque stop clearance.
With clutches in proper alignment, the
torque stop clearance should be .010I-
.030I (.25-.75 mm) from the engine case.
Adjust if necessary. Lock the jam nut.
.010I-.030I
(.25-.75 mm)
