MFD Battery Replacement (models with clocks)
If the clock function of the MFD isn't
working properly, replace the battery.
Replacement batteries are available from
your dealer.

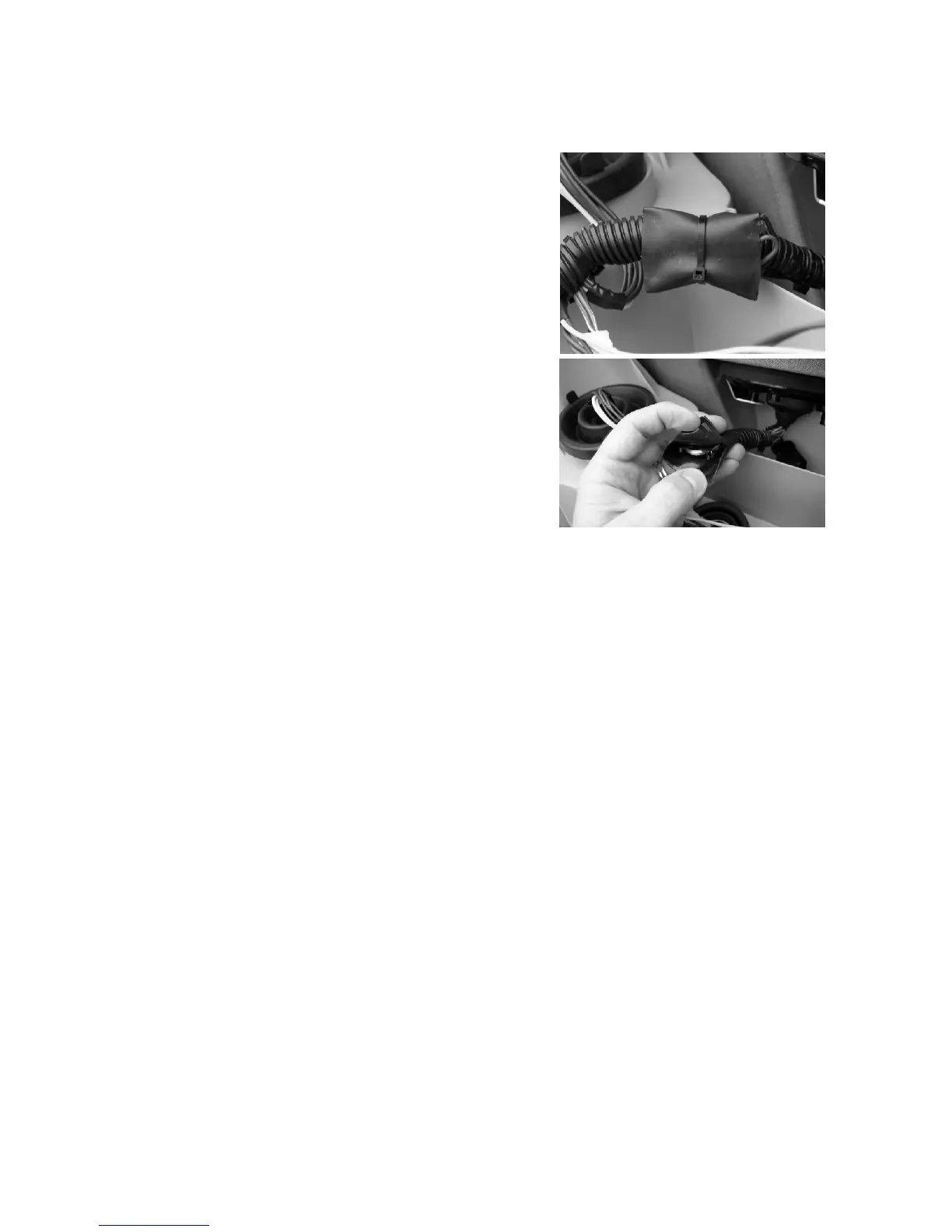

1. Remove the plenum from the under-
side of the hood.
2. Locate the black battery compart-
ment. It has a red wire and a brown
wire with a white stripe. It's located
about three inches down the main
harness from the point where the
harness connects to the MFD.
3. Cut the plastic cable tie from the out-
side of the compartment.
4. Carefully cut the bottom of the com-
partment (opposite the wires) to separate the heat-sealed seams.
Squeeze the corners of the compartment inward so the battery is
visible.
NOTE: Note the orientation of the battery before removing it. An incor-
rectly installed battery will not maintain the clock.
5. Using needle-nose pliers, grasp the battery and rotate it so the lead-
ing edge of the battery is raised slightly away from the battery
holder. Pull the battery out gently.
NOTE: The battery will not come out of the holder unless the leading
edge of the battery is raised. Hold the battery compartment, not
the wires, while removing the battery. Pulling on the wires will
separate them from the battery holder.
