Polaris GEM eLXD - Page 140

5 - 93 ELECTRICAL
GEM Service Manual November 2007

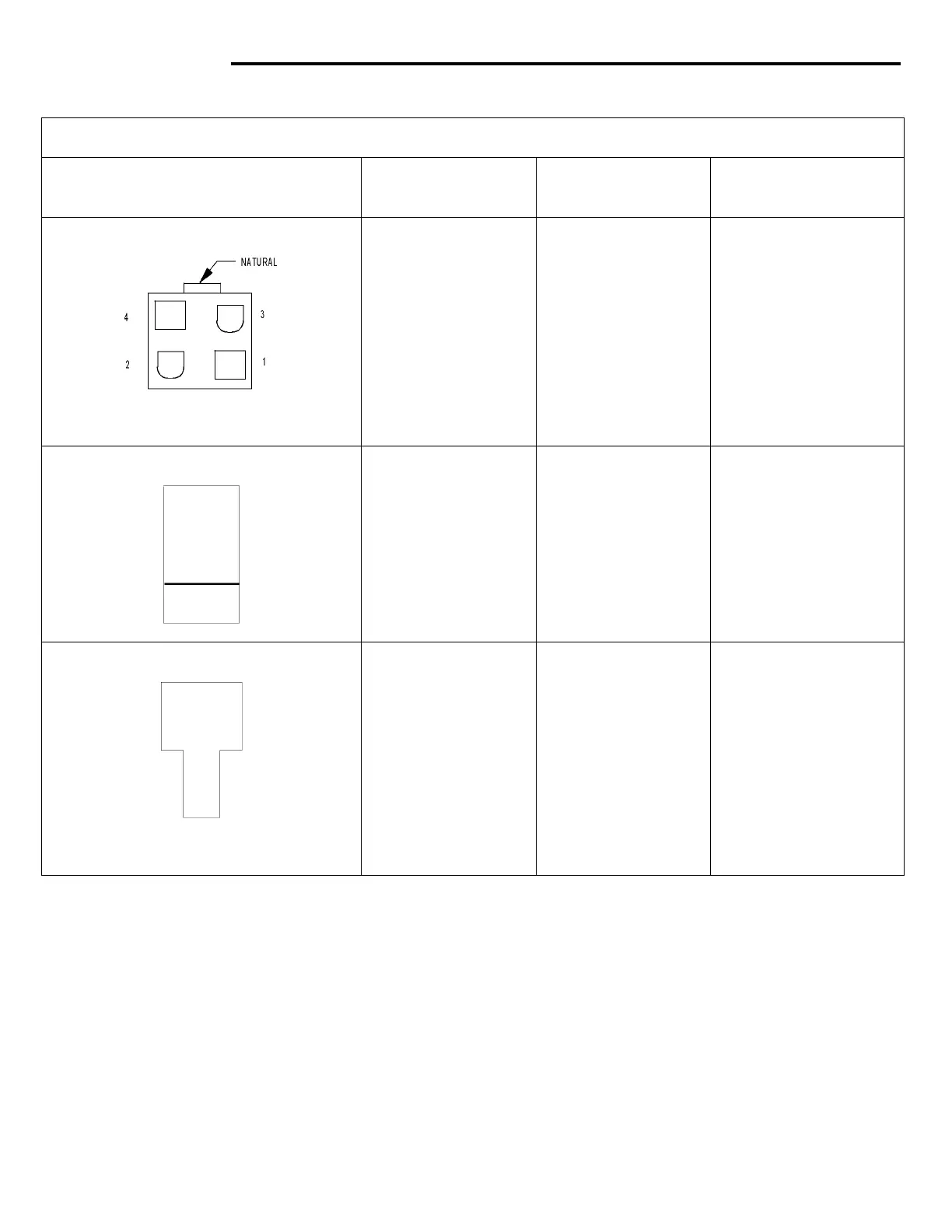

PIN LOCATIONS FOR TAIL LIGHT HARNESS CONNECTORS
Connector Illustration Connector Number Connects To Number of Pins in
Connector
1 Rear Harness 4
2,3,5,6 Lamp-Taillight-Left,
Lamp-Taillight-Right
1
4,5
Lamp-Taillight-Left,
Lamp-Taillight-Right
1
