Maintenance

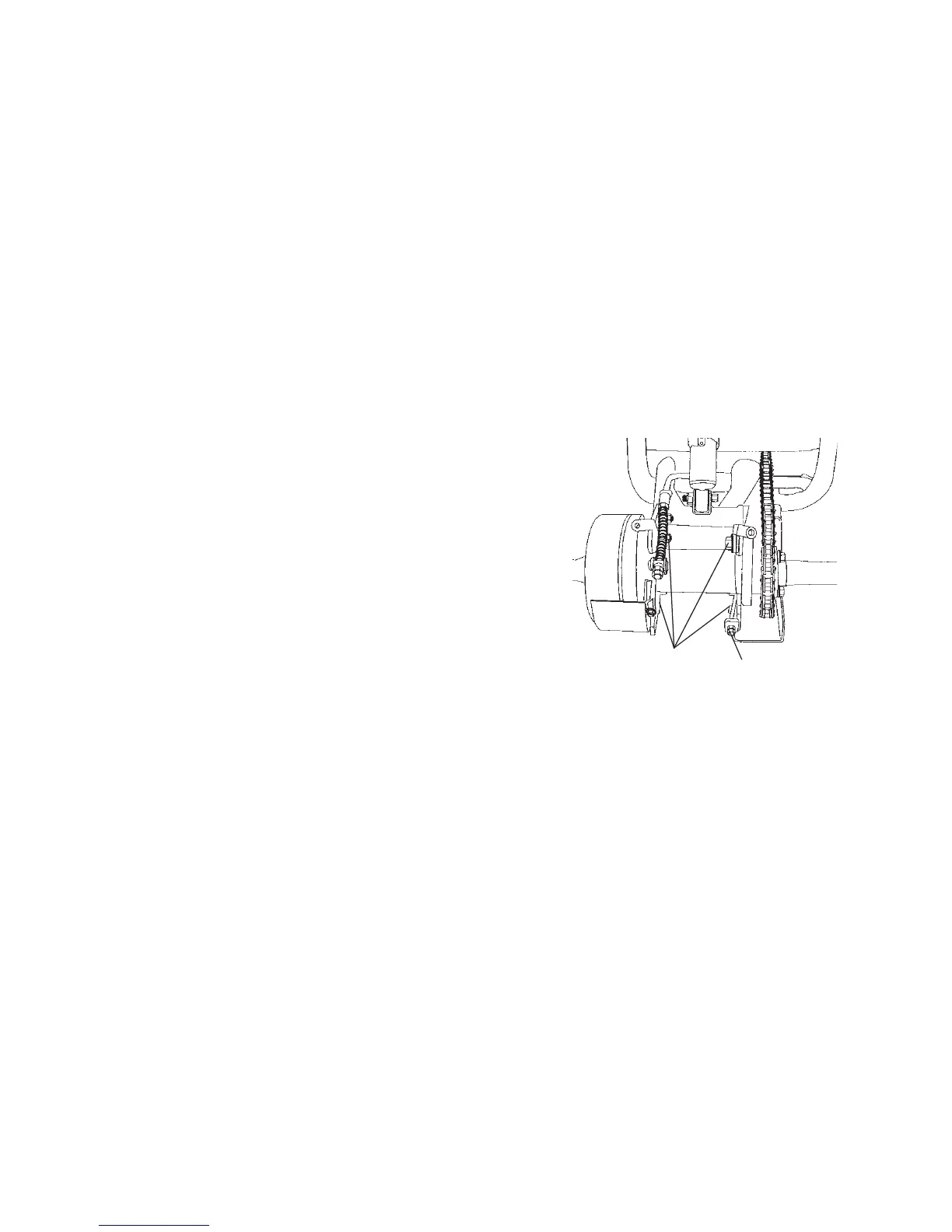

Drive Chain Slack Adjustment
1. Loosen the four rear housing mount bolts.
2. Loosen the chain adjuster lock nut.
3. Turn the chain adjuster clockwise to 1/4"-1/2"
(6-12 mm) deflection.
4. Tighten the chain adjuster lock nut to 18 ft. lbs.
(25 Nm). Hold the adjuster stud securely while
tightening the nut to avoid breaking the stud.
5. Tighten the four rear housing mount bolts to 43
ft. lbs. (60 Nm).
