Polaris p825 - Diagnostic Box Display Panel; Control Box Diagnostic Test Status and Diagnostic Messages

Page 5
OVERVIEW
ENG

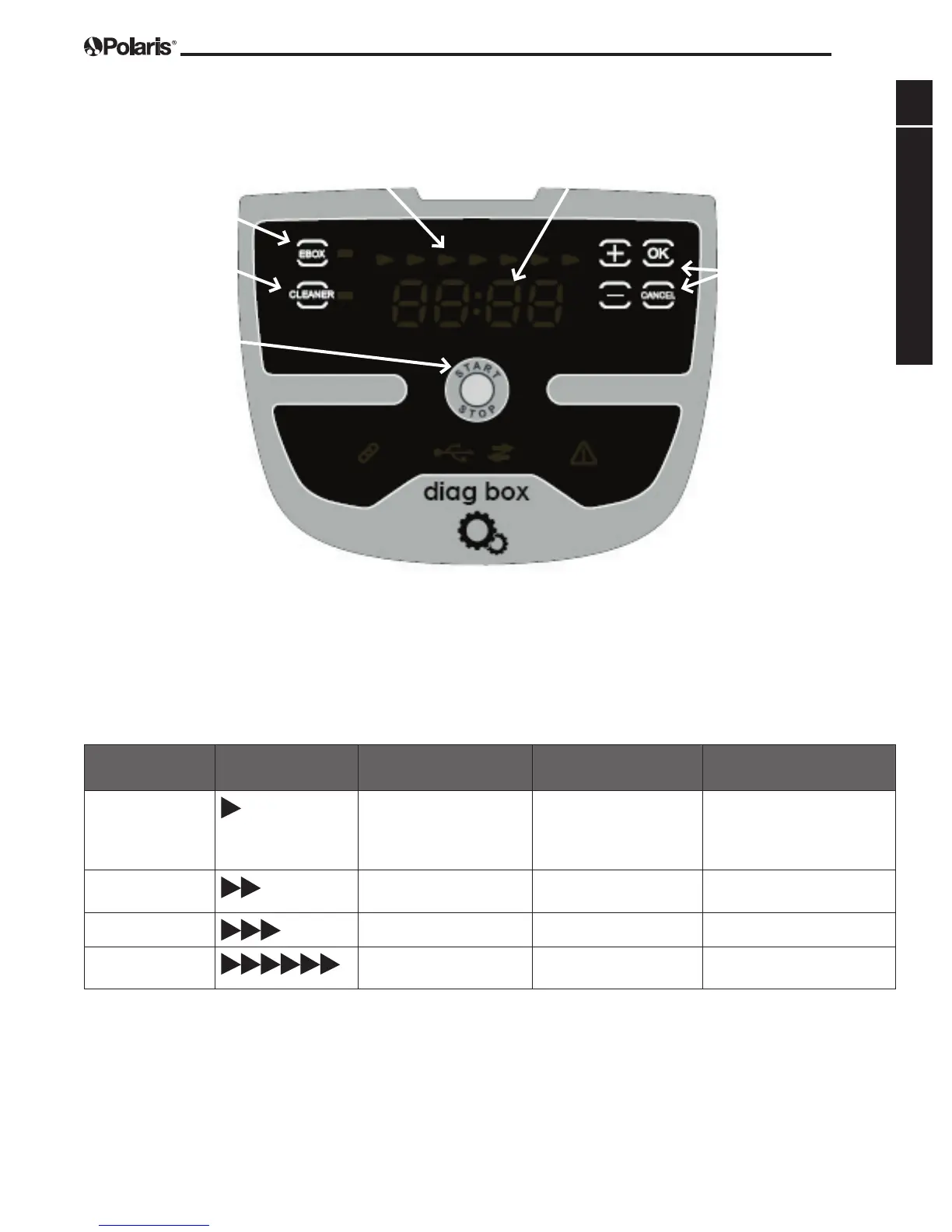

1.5 Diagnostic Box Display Panel
Select
Control Box Test
Select
CleanerTest
Start
Selected
Test
Testing Status Message
Clear Message
or Cancel Testing
Testing Progress Bar
1.6 Control Box Diagnostic Test Status and Diagnostic Messages
Connect the correct test cable between the Diagnostic Box and the cleaner Control Box. On the Diagnostic
Box, press [EBOX] button, then press [START] button.
Control Box
Quick Test
Progress Bar Message During Test Diagnostic Message Action Required
auto testing test fail-At check connections and
run test again (replace
Diagnostic Box if second
fail)
power supply
test
test fail replace Control Box
keyboard test
test fail replace Control Box
test complete
end good perform cleaner
diagnostic test
