5. Use a pair of scissors to cut the tabs 3/4 inch from the heel so that they
are no higher than the cleaning blade (Figure 32).
6. Repeat the procedure to install the second brush

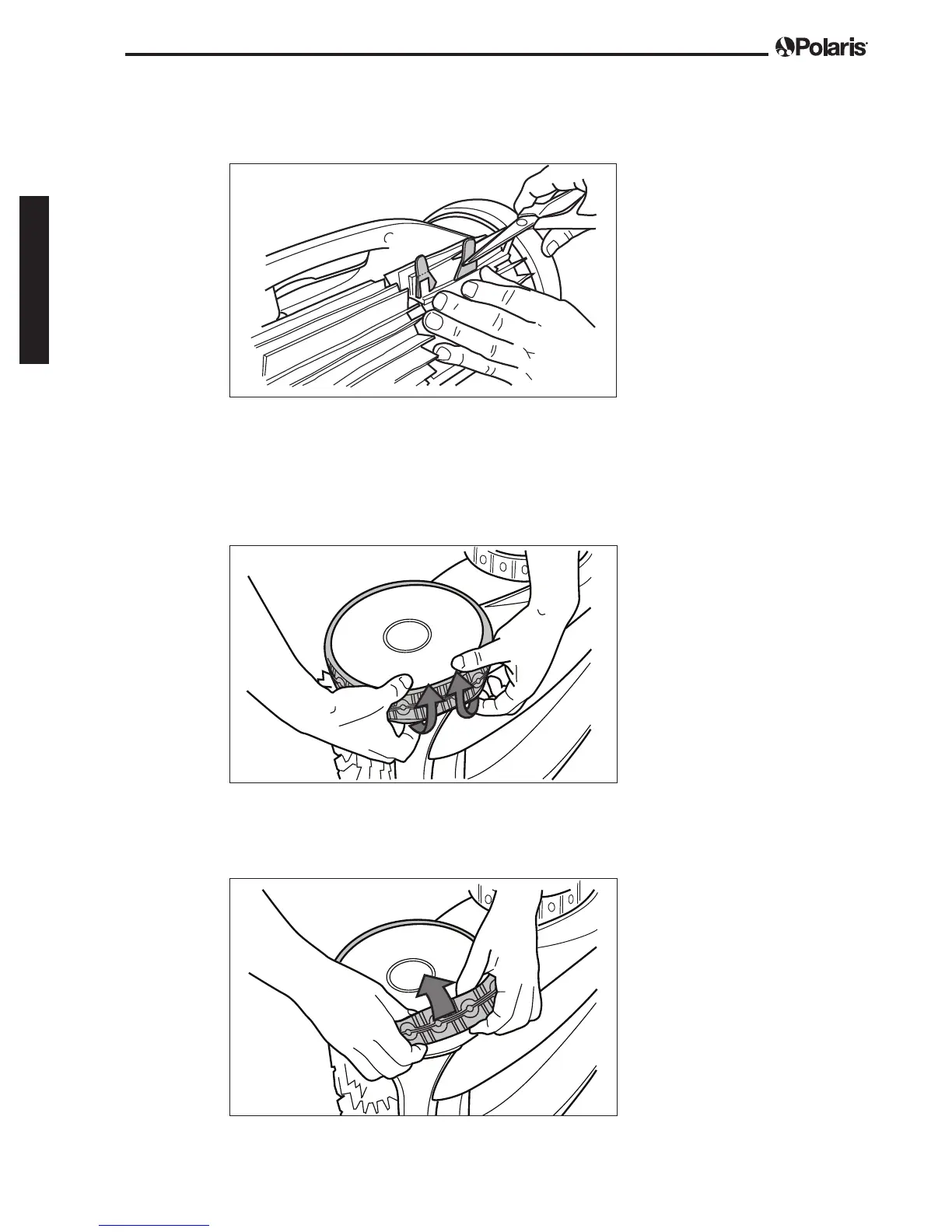

Figure 32. Cut Tabs
Replacing Tires
1. Pull on the inside of the old tire to remove the tire lip from the wheel
(Figure 33).
1
Figure 33. Pull the Old Tire Over the Wheel
2. Remove the old tire (Figure 34).
2
Figure 34. Remove the Old Tire
