3
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
3.187

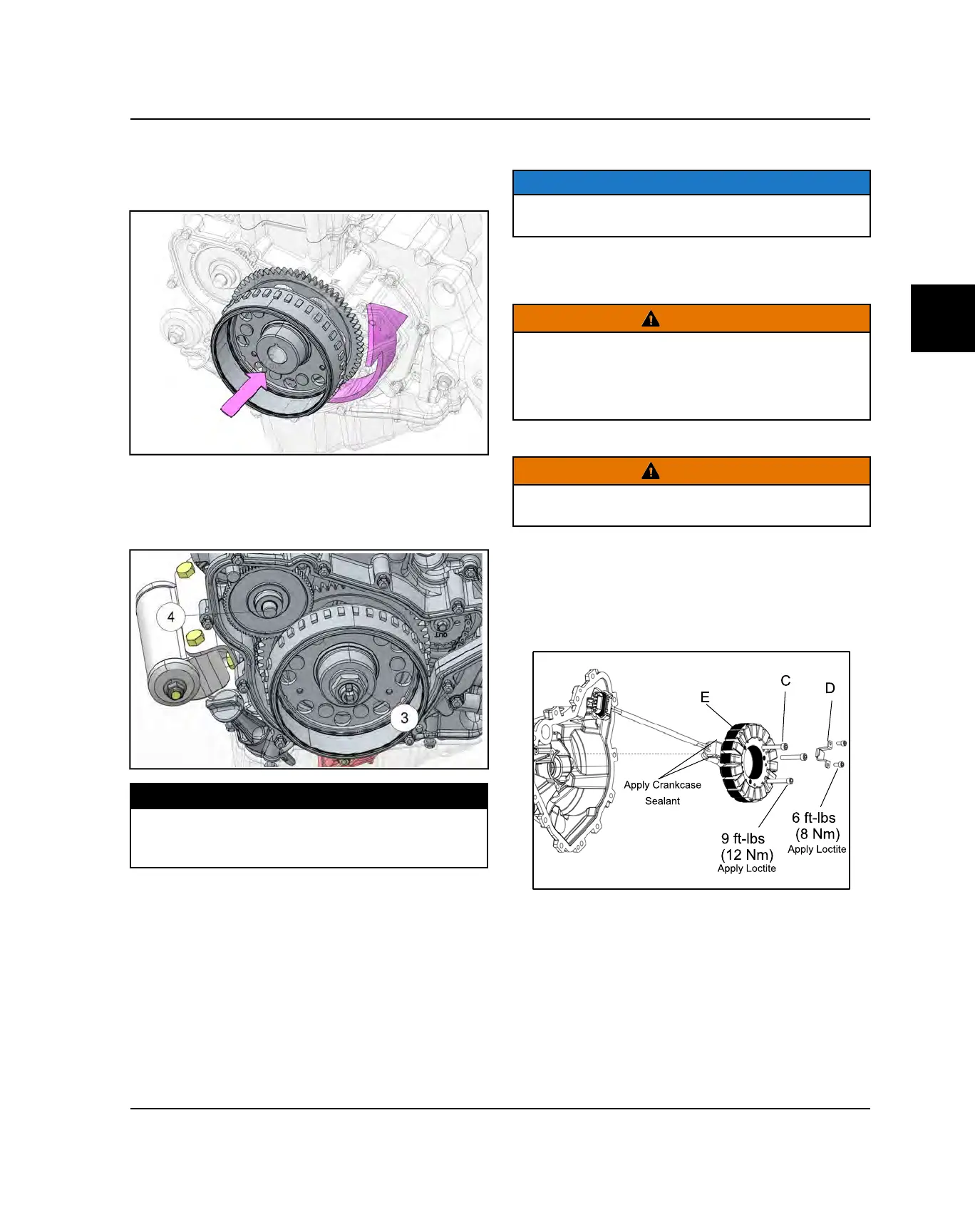

8. By hand, lightly press the flywheel inward while
rotating the freewheel gear counter clock-wise. Fully
install the flywheel until seated on the crankshaft
taper.
9. Install the flywheel washer.
10. Hold flywheel with commercially available strap
wrench.
11. Torque new flywheel nut
e
to specification.
TORQUE
Flywheel Retaining Nut:
133 ft-lbs (180 Nm)Torque to specification, back of
180 degrees, retorque to specification.
12. Install starter idler gear and shaft.
STATOR REMOVAL
NOTE
Test stator wire continuity before removing it from the
housing.
1. Remove the stator cover as outlined in the ”Water
Pump Mechanical Seal / Oil Seal Replacement”
procedure” in this chapter.
CAUTION
The flywheel contains powerful magnets. Use caution
when removing the stator cover.
DO NOT place fingers between cover and crankcase at
any time during the removal process or injury could
result.
2. Remove and discard the stator cover gasket.
CAUTION
Be sure engine coolant does not contaminate the
engine oil during stator cover service.
3. Remove the 3 bolts (C) that secure the stator to the
stator cover.
4. Remove the 2 bolts that secure the stator wire
routing bracket (D) to the stator cover.
5. Remove the stator (E) from the stator cover.
ENGINE / COOLING SYSTEM
