9
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
9.7

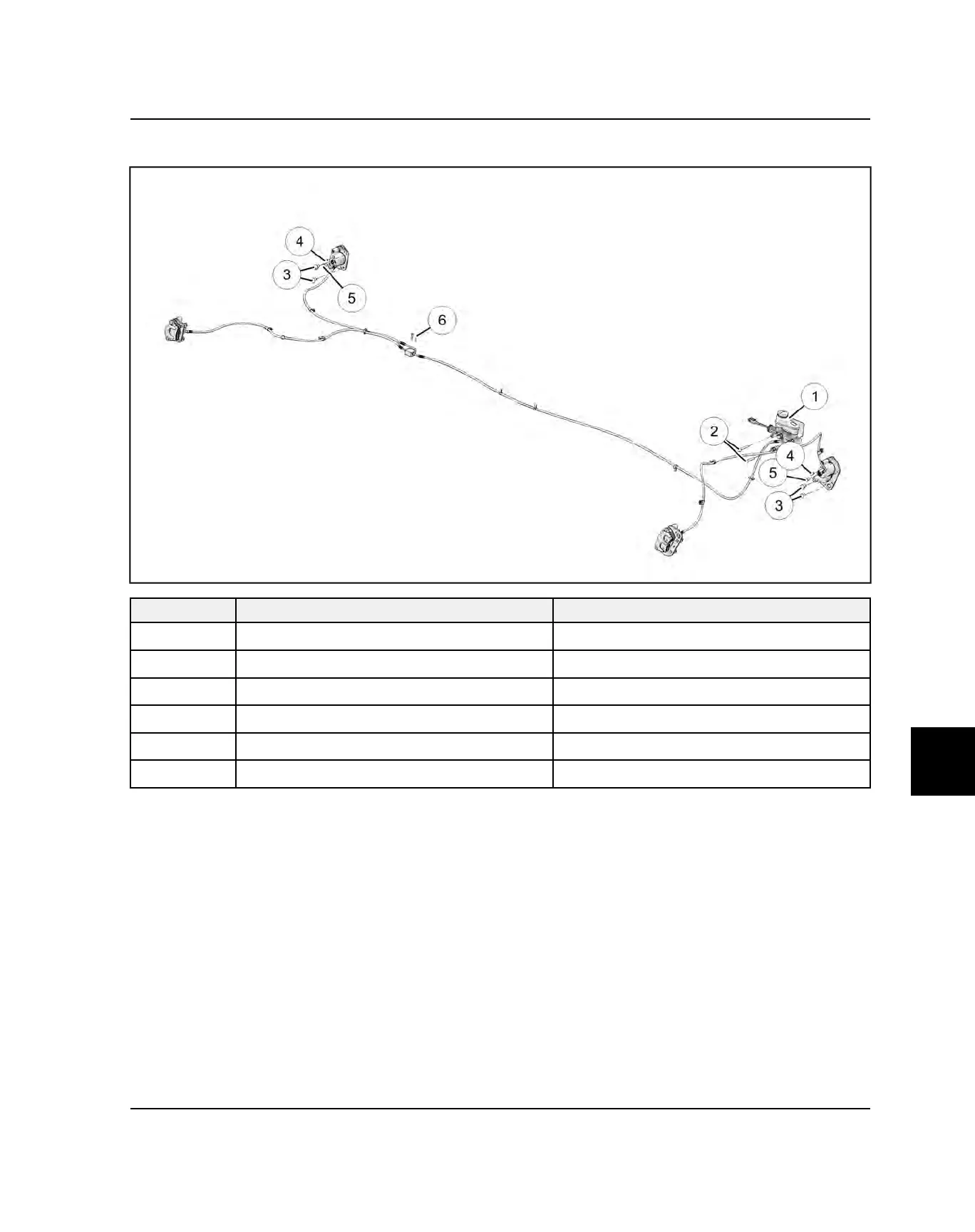

RANGER CREW
REF.
DESCRIPTION NOTES
q
Master Cylinder
w
Banjo Bolt
Torque to 15 ft-lbs (20 Nm)
e
Caliper Mounting Bolts Torque to 46 ft-lbs (62 Nm)
r
Pad Adjuster Screw Torque to 48 ft-lbs (5.5 Nm)
t
Brake Line Fastener Bolt
Torque to 15 ft-lbs (20 Nm)
y
Screw Torque to 12–15 ft-lbs (16–20 Nm)
BRAKE SYSTEM
