Polaris RANGER 500 2018 - Crew Frame Assembly View

10.4
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.

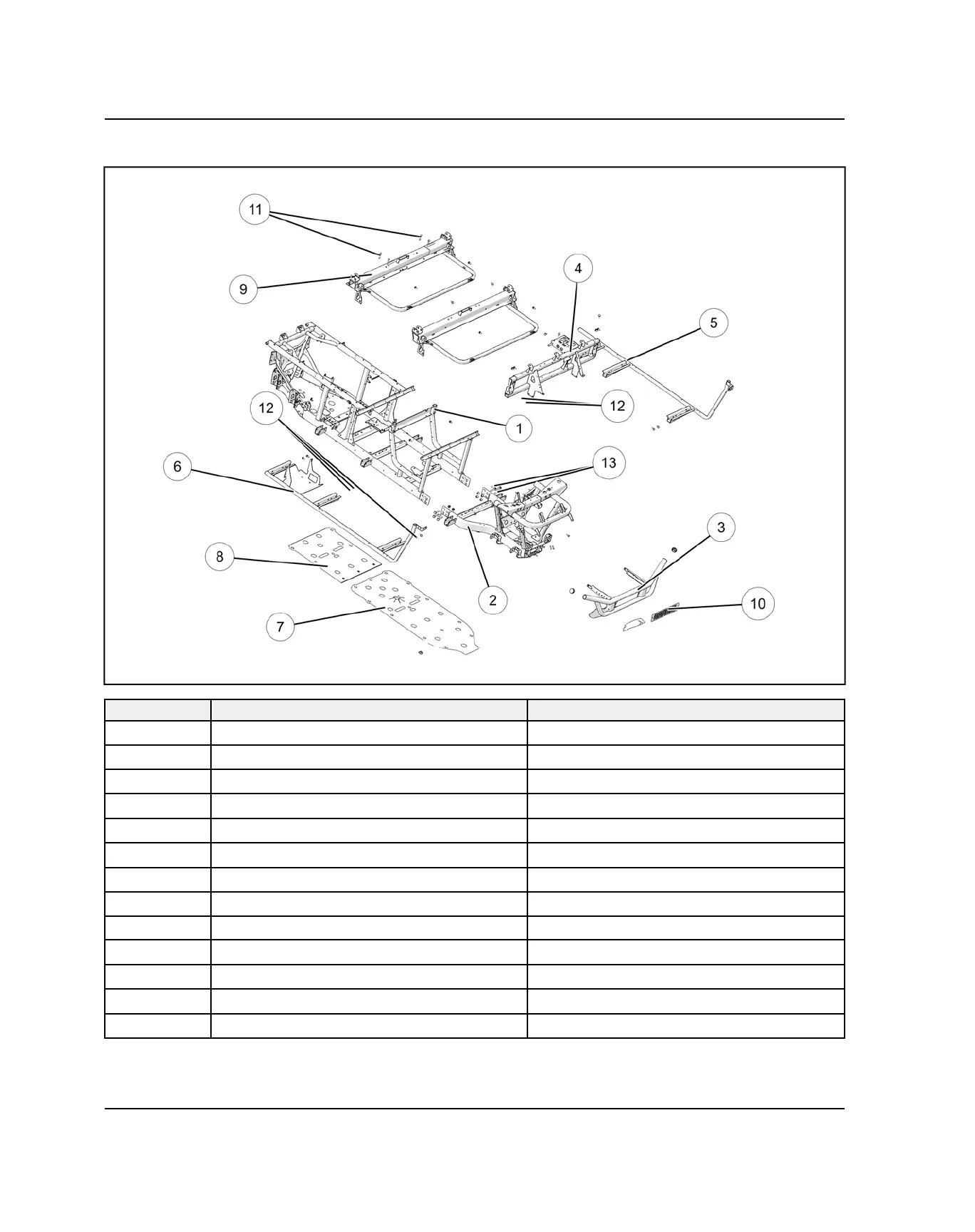

CREW FRAME ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Rear Main Frame
w
Front Main Frame
e
Front Bumper
r
Dash Support
t
Left Floor Support
y
Right Floor Support
u
Front Skid Plate
i
Rear Skid Plate
o
Seat Base Frame
a
Bumper Screen
s
Screws Torque to 22 ft-lbs
d
Screws Torque to 8 ft-lbs
f
Screws Torque to 40 ft-lbs
BODY / FRAME
