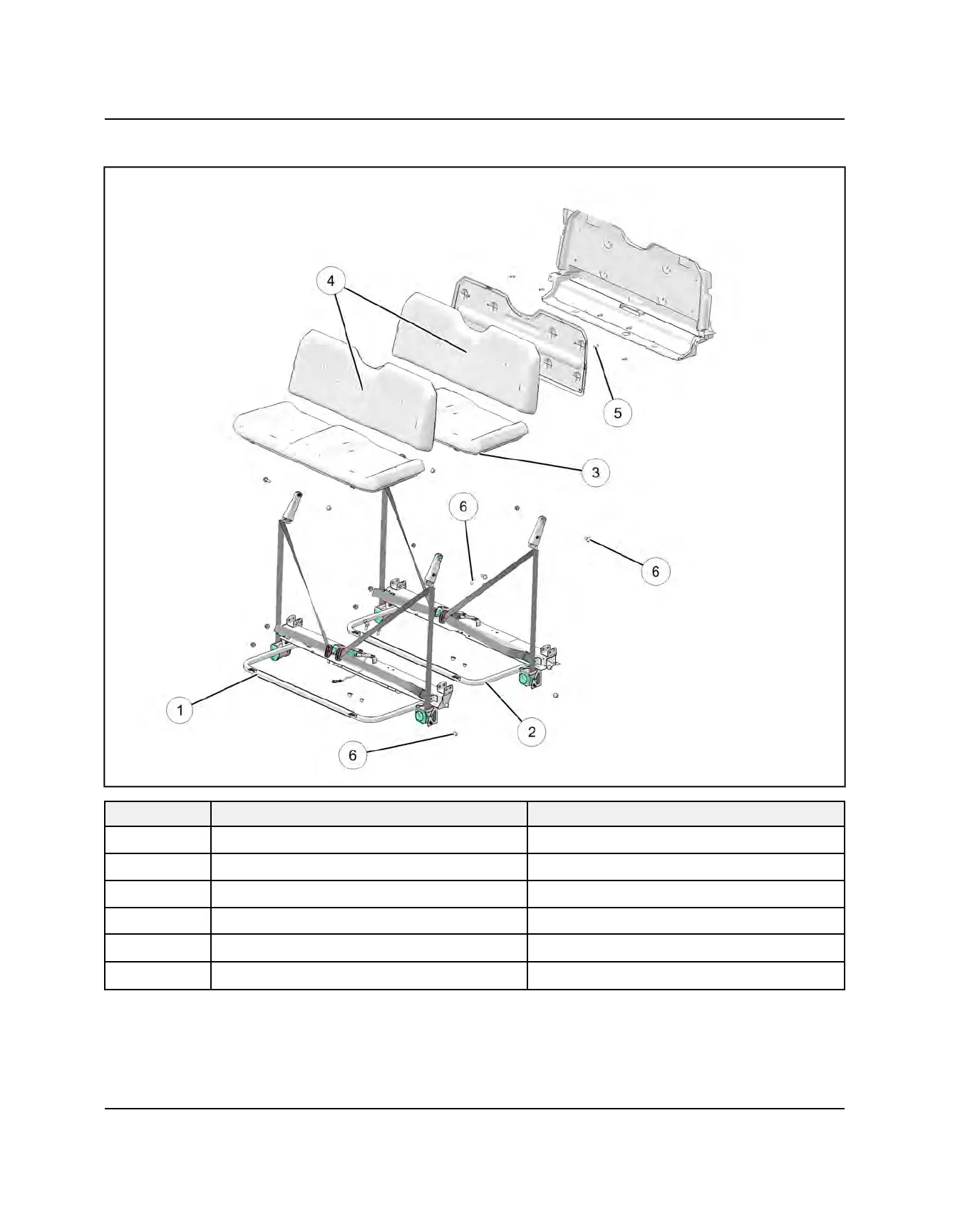

CREW SEAT MOUNTING / SEAT BELTS
REF.
DESCRIPTION NOTES
q
Front Seat Base Frame
w
Rear Seat Base Frame
e
Seat Base
r
Seat Back
t
Screw 24 in-lbs (3 Nm)
y
Bolt
40 ft-lbs (54 Nm)
BODY / FRAME
