Polaris RANGER 500 2018 Service Manual
5
of 1
of 1 rating
591 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
10.6
9928485
R01
-
2017-2018
RANGER
500
/
570
Service
Manual
©
Copyright
Polaris
Industries
Inc.
NUMBER
P
ART
DESCRIPTION
TORQUE
(IF
APPLICABLE)
Net
Rod
Mounts
(Not
Shown)
Screw
(Used
to
fasten
Net
Rod
Mounts)
T
orque
to
8
ft-lbs
(1
1
Nm)

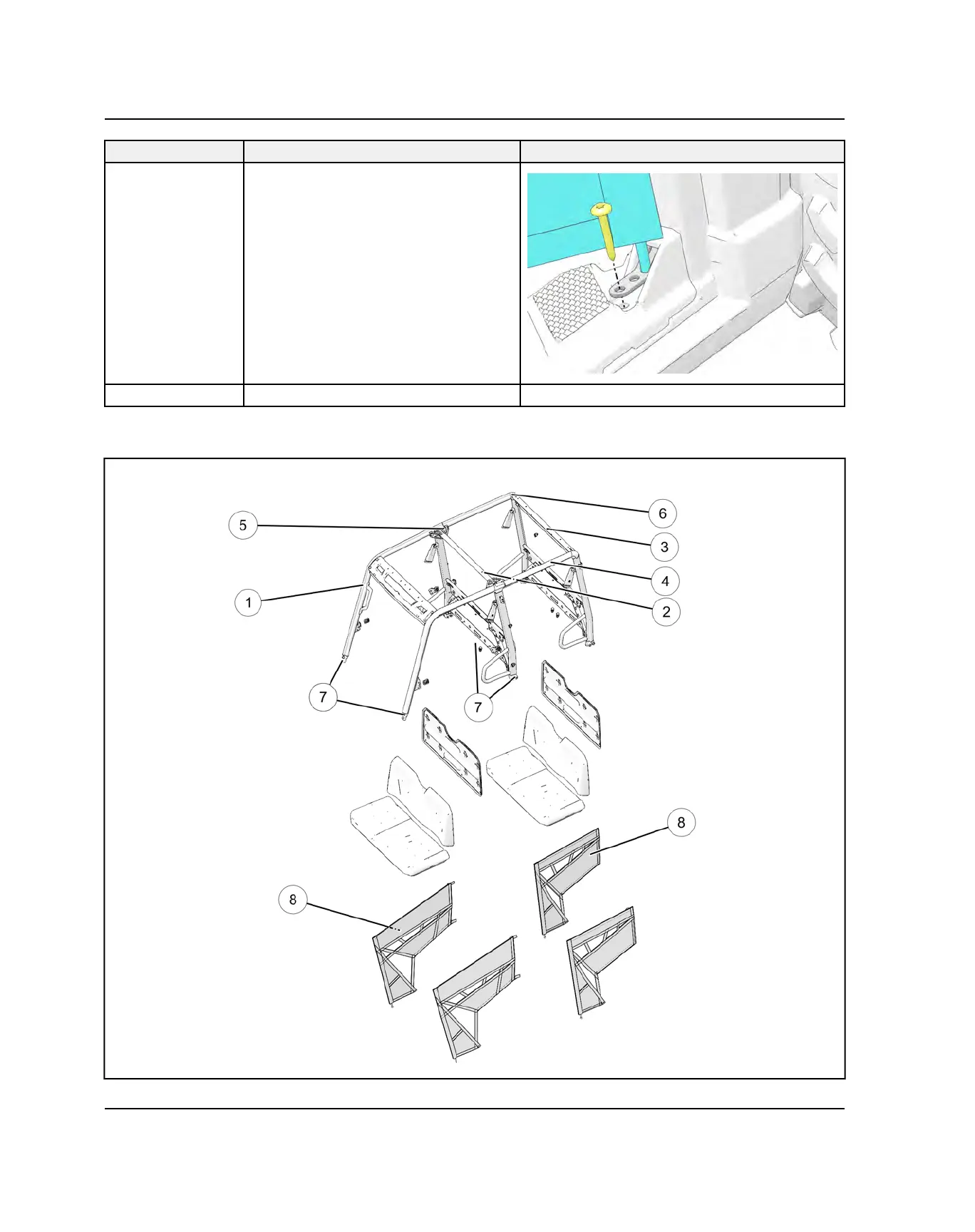

2017
CREW
CAB
FRAME
ASSEMBL
Y
VIEW
BODY
/
FRAME
527
529
Table of Contents
Chapter 1 1 General Information
5
Table of Contents
5
Vehicle Information
6
Model Number Designation (2015 +)
6
Vehicle Identification Number (Vin) Designation (2015+)
6
Vin / Engine Number Location
7
Reference Information
8
Replacement Keys
8
Publication Numbers
9
Special Tools
10
Master Special Tools Table
11
Master Torque Table
19
Clutching Chart
21
General Specifications
22
2017 Ranger 570 4X4 (Intl.)
28
Misc. Specifications and Charts
34
Conversion Table
34
Sae Tap / Drill Sizes
36
Metric Tap / Drill Sizes
37
Decimal Equivalents
38
Chapter 2 Maintenance
41
Cold Weather Operation
43
Periodic Maintenance Chart
43
Pre-Ride / Daily Inspection
43
Brake System Break-In
44
Break-In Period
44
Engine and Drivetrain Break-In
44
Pvt Break-In (Clutches / Belt)
44
Vehicle Break-In Period
44
Periodic Maintenance Chart
45
Periodic Maintenance Chart Key
45
Grease Lubrication Points
48
Component Quick Reference
49
Storage Tips
50
Lubricants / Service Products
51
Polaris Lubricants, Maintenance and Service Products
51
Compression and Leakdown Test
52
Engine
52
Engine Oil Level
52
Oil and Filter Change
52
Breather Hose
53
Breather Valve Inspection
53
500 Sohc
54
570 Dohc
54
Valve Clearance - Dohc
54
Valve Clearance - Sohc
54
Coolant Level Inspection
56
Cooling System
56
Cooling System Overview
56
50/50 Extended-Life Engine Antifreeze
58
Coolant Strength / Type
59
Cooling System Hoses
59
Coolant Drain / Radiator Removal
60
Radiator Inspection / Cleaning
60
Air Filter Service
62
Fuel Lines
62
Fuel Pump / Filter
62
Fuel System
62
Fuel System and Air Intake
62
Throttle Pedal Inspection
62
Vent Lines
62
Engine Air Intake Inspection
63
Pvt Air Intake Inspection
63
Shift Cable Adjustment
64
Shift Cable Inspection
64
Transmission and Gearcase
64
Transmission Lubrication
64
Front Gearcase Lubrication
65
CV Shaft Boot Inspection
67
Final Drive / Wheel / Tire
67
Wheel and Hub Torque Table
67
Wheel Removal
67
Tire Inspection
68
Tire Pressure
68
Wheel Installation
68
Steering
69
Steering Inspection Note
69
Tie Rod End / Steering Inspection
69
Toe Adjustment
70
Wheel Toe Alignment Inspection
70
Camber and Caster
71
Spring Pre-Load Adjustment
72
Stabilizer Bar Pivot Lubrication
72
Suspension
72
Suspension Inspection
72
Suspension Pivot Point Lubrication
72
Brake Fluid Inspection
73
Brake Hose and Fitting Inspection
73
Brake Pad Inspection
73
Brake System
73
Brake Disc Inspection
74
Battery Fluid Level (Conventional Battery)
75
Battery Maintenance
75
Battery Removal
75
Electrical and Ignition System
75
500 Sohc
76
Battery Charging
76
Battery Installation
76
Battery Storage
76
Spark Plug Service - 500
76
570 Dohc
77
Spark Plug Service - 570
77
Main Frame/Engine Ground
78
Chapter 3 Engine / Cooling System
79
General Engine Information
84
General Information
84
Special Tools
84
Engine Lubrication Specifications
85
Oil Pressure Test
86
Engine Oil Flow Chart
87
Engine Specifications
88
Accessible Engine Components
90
Engine Removal
90
Engine Service
90
Top-End Service (Engine in Chassis)
90
Engine Installation
93
Engine Break-In Period
96
Engine Lubrication Specifications
96
Engine Mounting and Torque Values
97
Setting Tdc (Top-Dead-Center)
98
Cooling System
100
Cooling System Assembly View and Coolant Flow Diagram
100
Cooling System Pressure Test
101
Cooling System Specifications
101
Pressure Cap Test
102
Radiator
102
Coolant Drain / Radiator Removal
103
Cooling System Bleeding Procedure
104
Thermostat Replacement
104
Water Pump Cover and Impeller Service (Stator Cover Remains on Engine)
105
Water Pump Mechanical Seal / Oil Seal Replacement
106
Engine
112
Troubleshooting
112
Cooling System
113
500Cc Sohc Engine
114
Engine Detail, Torques / Sequences
114
Engine Specifications
114
Engine Torque Sequences
116
Crankcase / Timing Chain Guides / Oil Pickup / Regulator Valve
122
Crankcase Sealant Path
122
Cylinder / Oil Filter / Oil Pump / Breather
125
Camshafts / Cylinder Head / Flywheel / Idler Gears / Stator Cover
129
Spark Plugs / Starter / Throttle Body / Valve Cover
133
Piston / Crankshaft / Balance Shaft
137
Camshaft / Carrier Removal
143
Engine / Cooling System
143
Engine Disassembly / Inspection - Top End
143
Valve Cover Removal
143
Camshaft / Camshaft Bore Inspection
144
Camshaft Sprocket Inspection
144
Cam Chain and Guide Service
145
Exhaust Camshaft Decompression Mechanism
145
Cylinder Head Disassembly
146
Cylinder Head Removal
146
Cylinder Head Inspection
147
Cylinder Head Warp Inspection
147
Valve Inspection
147
Combustion Chamber Cleaning
149
Valve Seat Reconditioning
149
Cylinder Inspection
151
Cylinder Removal
151
Piston Removal
152
Piston / Rod Inspection
153
Piston-To-Cylinder Clearance
153
Honing to Oversize
154
Piston Ring Installed Gap
154
Cleaning the Cylinder after Honing
155
Cylinder Hone Selection / Honing Procedure
155
Engine Assembly - Top End
156
Piston Ring Installation
156
Cylinder Installation
157
Piston / Connecting Rod Assembly
157
Cylinder Head Installation
158
Valve Clearance Check / Adjustment
159
Valve Sealing Test
159
Exhaust Valve Lash - Tappet Selection Matrix
161
Intake Valve Lash - Tappet Selection Matrix
161
Camshaft Installation / Timing
162
Camshaft Timing - Quick Reference
164
Valve Cover Installation
165
Crankcase Disassembly
166
Engine Disassembly / Inspection - Lower End
166
Flywheel / Stator Housing Removal
166
Starter One-Way Clutch Inspection
166
Flywheel Installation
168
Starter One-Way Clutch Installation
168
Stator / Stator Cover Installation
169
Stator Removal
169
Oil Pump Removal
170
Oil Pump Assembly
172
Crankcase Breather Valve / Hose
173
Crankcase Separation
174
Balance Shaft Removal / Inspection
175
Crankshaft Removal
175
Crankshaft Inspection
176
Crankcase Assembly - Pto Side
178
Engine Assembly - Lower End
178
Balance Shaft Installation / Timing
179
Final Crankcase Assembly
180
Crankcase Disassembly
182
Engine Disassembly / Inspection - Lower End
182
Starter One-Way Clutch Inspection
182
Stator Cover Removal
182
Stator Removal
184
Oil Pump Removal
185
Crankcase Breather Service
187
Oil Pump Assembly
187
Crankcase Separation
188
Balance Shaft Removal / Inspection
189
Crankshaft Inspection
190
Crankshaft Removal
190
Pto Side Crankcase Bearing Service
191
Mag Side Crankcase Bearing Service
192
Crankcase Inspection
193
Oil Pickup Assembly Inspection
193
Oil Pressure Regulator (Bypass) Valve Inspection
193
Crankcase Assembly - Pto Side
194
Engine Assembly - Lower End
194
Balance Shaft Installation / Timing
196
Final Crankcase Assembly
196
Flywheel Installation
198
Starter One-Way Clutch Installation
198
Stator / Stator Cover Installation
200
570Cc Dohc Engine
201
Engine Detail, Torques / Sequences
201
Torque Specifications, Engine
201
Torque Sequence
203
Crankcase Sealant Path
206
Crankcase / Timing Chain Guides / Oil Pickup / Regulator Valve
207
Cylinder / Oil Filter / Oil Pump / Breather
209
Camshafts / Cylinder Head / Flywheel / Idler Gears / Stator Cover - Black Cylinder Head Bolts
211
Camshafts / Cylinder Head / Flywheel / Idler Gears / Stator Cover - Silver Head Bolts
213
Spark Plugs / Starter / Throttle Body / Valve Cover
215
Piston / Crankshaft / Balance Shaft
217
Engine Detail, Torques / Sequences
221
Engine Fastener Torque Specifications
221
Torque Sequence
223
Crankcase / Timing Chain Guides / Oil Pickup / Regulator Valve
224
Cylinder / Oil Filter / Oil Pump / Breather
225
Camshafts / Cylinder Head / Flywheel / Stator Cover - Black Head Bolts
226
Cams / Cyl Head / Flywheel / Stator Cover - Silver Head Bolts
227
Spark Plug / Starter / Throttle Body / Valve Cover
228
Piston / Crankshaft / Balance Shaft
230
Camshaft / Carrier Removal
231
Engine Disassembly / Inspection - Top End
231
Valve Cover Removal
231
Camshaft Sprocket Inspection
232
Camshaft Inspection
233
Exhaust Camshaft Decompression Mechanism
233
Cam Chain and Guide Service
234
Cylinder Head Removal
234
Cylinder Head Disassembly
235
Cylinder Head Inspection
236
Cylinder Head Warp Inspection
236
Valve Inspection
236
Combustion Chamber Cleaning
237
Valve Seat Reconditioning
238
Cylinder Inspection
240
Cylinder Removal
240
Piston Removal
241
Piston-To-Cylinder Clearance
241
Piston / Rod Inspection
242
Honing to Oversize
243
Piston Ring Installed Gap
243
Cleaning the Cylinder after Honing
244
Cylinder Hone Selection / Honing Procedure
244
Engine Assembly - Top End
245
Piston Ring Installation
245
Piston / Connecting Rod Assembly
246
Cylinder Head Identification
247
Cylinder Installation
247
Crankcase Identification
248
Cylinder Head Installation - Black Bolts
249
Cylinder Head Installation - Silver Bolts
250
Valve Clearance Check / Adjustment
252
Valve Sealing Test
252
Valve Lash - Tappet Selection
255
Exhaust Valve Lash - Tappet Selection Matrix
256
Camshaft Installation / Timing
257
Camshaft Timing - Quick Reference
260
Valve Cover Installation
261
Crankcase Disassembly
262
Engine Disassembly / Inspection - Lower End
262
Flywheel / Stator Housing Removal
262
Starter One-Way Clutch Inspection
263
Flywheel Installation
264
Starter One-Way Clutch Installation
264
Stator Removal
265
Oil Pump Removal
266
Stator / Stator Cover Installation
266
Oil Pump Assembly
268
Crankcase Breather Valve / Hose
269
Crankcase Separation
270
Balance Shaft Removal / Inspection
271
Crankshaft Inspection
272
Crankshaft Removal
272
Pto Side Crankcase Bearing Service
273
Mag Side Crankcase Bearing Service
275
Oil Pickup Assembly Inspection
275
Crankcase Inspection
276
Oil Pressure Regulator (Bypass) Valve Inspection
276
Crankcase Assembly - Pto Side
277
Engine Assembly - Lower End
277
Balance Shaft Installation / Timing
279
Final Crankcase Assembly
279
Crankcase Disassembly
281
Engine Disassembly / Inspection - Lower End
281
Starter One-Way Clutch Inspection
281
Stator Cover Removal
281
Stator Removal
283
Oil Pump Removal
284
Crankcase Breather Service
286
Oil Pump Assembly
286
Crankcase Separation
287
Balance Shaft Removal / Inspection
288
Crankshaft Inspection
289
Crankshaft Removal
289
Pto Side Crankcase Bearing Service
290
Mag Side Crankcase Bearing Service
291
Crankcase Inspection
292
Oil Pickup Assembly Inspection
292
Oil Pressure Regulator (Bypass) Valve Inspection
292
Crankcase Assembly - Pto Side
293
Engine Assembly - Lower End
293
Balance Shaft Installation / Timing
295
Final Crankcase Assembly
295
Flywheel Installation
297
Starter One-Way Clutch Installation
297
Stator / Stator Cover Installation
299
Chapter 4 Fuel System
301
Efi Operation Overview
303
General Information
303
Initial Priming / Starting Procedure
303
Principal Components
303
Special Tools
304
Digital Wrench® - Diagnostic Connector
305
Fuel Pressure Gauge Adapter - Pa-48838
305
Fuel Pressure Gauge Kit - Pu-43506-A
305
Digital Wrench® - Download Website
306
Digital Wrench® Diagnostic Softwarepu-47063-B
306
Digital Wrench® Smartlink Module Kitpu-47471
306
Efi Component Locations
307
Efi Component Locations - Left View
307
Efi Component Locations - Right View
308
Fuel Line Routing
309
Line / Hose Routing
309
Vent Line Termination Fitting
309
Air Box / Air Filter Assembly View
310
Air Box / Intake System
310
Air Box Removal / Installation
312
Ecu Overview
313
Ecu Service
313
Electronic Control Unit (Ecu)
313
Rpm Limit
313
Ecu Replacement
314
Electronic Throttle Body (Etc)
315
Etc Learn Procedure
315
Etc Overview
315
Etc Replacement
315
Etc Test
315
Operation Overview
316
Pedal Position Sensor (Pps)
316
Pps Replacement
316
Pps Test
316
Fuel Tank / Pump / Sendor
317
Fuel Tank Assembly View
317
Fuel Tank Removal
317
Fuel Sender Test
318
Fuel Tank Installation
318
Fuel Pump Test
319
Fuel Pump Replacement
321
T-Map Overview
324
T-Map Sensor Replacement
324
T-Map Sensor Test
324
Temperature / Manifold Absolute Pressure (T-Map)
324
Cps Overview
325
Cps Test
325
Crankshaft Position Sensor
325
Resistance Test
325
Air Gap Test
326
Encoder Flywheel / Keyway Inspection
326
Cps Replacement
327
Coil Pack Connections
328
Ignition Coil / Wire Overview
328
Ignition Coil / Wire Test
328
Ignition Coil Overview
328
Spark Plug Wire Connections
328
Fuel Injector
329
Fuel Injector Overview
329
Fuel Injector Replacement
329
Fuel Injector Test
329
Fuel Injector Troubleshooting
331
Ect Overview
332
Ect Sensor Test
332
Engine Coolant Temperature Sensor (Etc)
332
Resistance Vs. Temperature Test
332
System Operation Test
332
Ect Sensor Replacement
333
Efi Diagnosis
334
Service Notes - Fuel System
334
Trouble Code Display (Dtc)
335
Digital Wrench® - Diagnostic Connector
342
Digital Wrench® Diagnostic Software Overview
342
Digital Wrench® Operation
342
Digital Wrench® Version and Update
343
Polaris Mobile Digital Wrench (Pmdw)
343
Digital Wrench® Updates
344
Digital Wrench® Communication Errors
347
Guided Diagnostics
347
Digital Wrench® Feature Map
348
Digital Wrench® Serial Number Location
348
Ecu Replacement
349
Ecu Reprogramming (Reflash)
349
Etc Learn Procedure
355
Fuel Starvation / Lean Mixture
356
Fuel System Troubleshooting
356
Poor Idle
356
Rich Mixture
356
Chapter 5 Pvt System
357
General Information
358
Pvt System Fastener Torques
358
Special Tools
358
Clutching Chart
359
General Operation
359
Pvt System Overview
359
Drive Clutch Operation
360
Driven Clutch Operation
360
Maintenance / Inspection
360
Pvt Break-In (Drive Belt / Clutches)
360
Operating in Low Gear
361
Overheating / Diagnosis
361
Pvt Sealing, Guard, and Duct Components
363
Pvt System Service
363
Pvt Disassembly
364
Pvt Assembly
365
Belt Inspection
366
Belt Removal
366
Drive Belt
366
Belt Installation
367
Pvt Break-In (Drive Belt / Clutches)
367
Clutch Alignment / Offset / Center Distance
368
Inspection
368
Adjustment
369
Drive Clutch Assembly View
370
Drive Clutch Service
370
Clutch Disassembly
371
Shift Weight Inspection
372
Spider Removal
373
Bearing Inspection
374
Button to Tower Clearance Inspection
374
Clutch Inspection
374
Bushing Service
376
Clutch Assembly
378
Assembly View
380
Driven Clutch Service
380
Clutch Disassembly / Inspection
381
Clutch Assembly
382
Pvt System Troubleshooting
383
Troubleshooting
383
Chapter 6 Transmission
385
General Information
386
Special Tools, Transmission
386
Torque Specifications
386
Special Tools
387
Lubrication
388
Transmission Gears
388
Transmission Mounting and Torque Values
388
Assembly View
389
Transmission Assembly View
389
Installation
391
Removal
391
Shift Lever
391
Adjustment
392
Inspection
392
Shift Cable
392
Transmission Removal
393
Transmission Service
393
Transmission Installation
394
Differential Operation
398
Transmission Internals Service
398
Transmission Disassembly
399
Planetary Differential Bushing Replacement
404
Planetary Differential Disassembly
404
Planetary Differential Assembly
406
Gear / Shaft / Bearing Inspection
407
Snorkel Gear Backlash Procedure
408
Troubleshooting
415
Troubleshooting Checklist
415
Chapter 7 Final Drive
417
Final Drive Torque Table
419
General Information
419
Special Tools
419
Front Hub / Bearing
420
Hub Removal / Inspection
420
Hubstrut Bearing Replacement
420
Hub Installation
421
Front Hub/Wheel Exploded View
423
Front Drive Shaft
424
Front Drive Shaft Removal
424
Front Drive Shaft Installation
425
Front Gearcase
426
Front Gearcase (Non-Adc)
426
Gearcase Installation
426
Gearcase Removal
426
Front Gearcase Assembly View
428
All Wheel Drive Operation
429
Awd Diagnosis
430
Front Gearcase Disassembly / Inspection
432
Front Gearcase Assembly
435
Exploded View, Front Gearcase (4Wdc)
438
Front Gearcase (Adc)
438
Operation, Front Gearcase (4Wdc)
440
Disassembly / Inspection, Front Gearcase (Adc)
441
Reassembly, Front Gearcase (Adc)
444
Troubleshooting, Front Gearcase (Adc)
447
Inspection
450
Rear Bearing Carrier
450
Removal
450
Assembly
451
Disassembly
451
Installation
452
Rear Drive Shaft
454
Rear Drive Shaft Installation
454
Rear Drive Shaft Removal
454
Drive Shaft / CV Joint Handling Tips
455
Drive Shaft Service
455
Outer CV Joint / Boot Replacement
455
Inner Plunging Joint / Boot Replacement
458
Drive Shaft Assembly View
460
Front Prop Shaft Components
462
Propshaft U-Joint Service
462
Removal / Installation
462
Removal / Installation (Crew)
462
Support Bearing Replacement (Crew)
463
Disassembly
464
Assembly
465
Chapter 8 Steering / Suspension
467
General Information
468
Torque Specifications
468
Special Tools
469
Steering Assembly
470
Steering Assembly View (Non-Eps)
470
Steering Assembly View (Eps)
472
Steering Shaft Bearing Replacement
474
Steering Wheel Removal (Non-Eps Models)
474
Steering Shaft / Steering Rack Removal (Non-Eps Models)
475
Steering Wheel / Upper Steering Shaft Removal (Eps)
476
Power Steering Unit Installation
477
Power Steering Unit Removal
477
Assembly View
479
Front Strut
479
Front Strut Cartridge Replacement
479
Ball Joint Replacement
480
Rear A-Arms
482
Removal / Replacement
482
Installation
483
Assembly View
484
Rear Stabalizer Bar / Linkage
485
Removal / Installation
485
Assembly View
486
Shock Removal / Installation
486
Shock Replacement
486
Shocks / Springs
486
Chapter 9 Brake System
487
Brake Service Specifications
489
General Information
489
Special Tools
489
Torque Specifications
489
Brake Noise Troubleshooting
490
Brake System Notes
490
Brake System Service Notes
490
Hydraulic Brake System Operation
491
Brake System Assembly Views
492
Ranger Crew
493
Installation
494
Master Cylinder
494
Removal
494
Brake Pressure Switch
495
Brake Pedal
496
Pedal Installation
496
Pedal Removal
496
Brake Bleeding / Fluid Change
497
Brake Service Procedures
497
Brake Burnishing Procedure
498
Brake Pad Inspection
499
Front Brake Pads
499
Pad Removal / Disassembly
499
Seat
499
Crew
500
Pad Adjustment- Ranger
500
Pad Assembly / Installation- Ranger
500
Pad Removal - Crew
500
Pad Inspection
501
Pad Assembly / Installation- Crew
502
Front Caliper
503
Front Caliper Assembly View
503
Seat
503
Front Caliper Disassembly - Ranger
504
Front Caliper Removal- Ranger
504
Front Caliper Assembly
505
Front Caliper Inspection- Ranger
505
Front Caliper Installation
506
Crew
507
Front Caliper Assembly View
507
Front Caliper Disassembly - Crew
508
Front Caliper Removal- Crew
508
Front Caliper Inspection - Crew
509
Front Caliper Assembly - Crew
510
Front Caliper Installation - Crew
510
Disc Inspection
512
Front Brake Disc
512
Disc Removal / Replacement
513
Pad Removal
513
Rear Brake Pads
513
Brake Pad Inspection
514
Rear Pad Installation
515
Caliper Assembly View
516
Rear Calipers
516
Caliper Removal
517
Rear Caliper Disassembly
517
Rear Caliper Assembly
518
Rear Caliper Inspection
518
Rear Caliper Installation
519
Brake Disc Inspection
520
Disc Runout
520
Rear Brake Disc
520
Disc Removal / Replacement
521
Brakes Lock
522
Caliper Overheats (Brakes Drag)
522
Pedal Vibration
522
Troubleshooting
522
Chapter 10 Body / Frame
523
General Information
524
Special Tools
524
Torque Specifications
524
Chassis / Body Assembly Views
525
Frame Assembly View
525
Crew Frame Assembly View
526
Cab Frame Assembly View
527
Dash Instruments / Controls
531
Hood / Dash / Front Fascia
532
Floor / Rear Fenders
533
Seat Mounting / Seat Belts
534
Crew Floor / Rear Fenders
535
Crew Seat Mounting / Seat Belts
536
Cargo Box - Tailgate / Box Support
537
Rear Cargo Box
537
Box Installation
539
Box Removal
539
Body Component Removal
540
Fenders / Foot Pads
540
Front Bumper
540
Lower Seat Base
540
Hood / Dash
541
Floors
542
Decal Replacement
543
Decals
543
Chapter 11 Electrical
545
Battery Conductance Analyzer
547
Electrical Service Notes
547
General Information
547
Special Tools
547
Components under Hood
548
Awd / 2Wd / Turf Switch
549
Ignition / Headlight Switch
549
Switches / Controls
549
Brake Pressure Switch
550
Differential Solenoid
550
Rear Differential Solenoid Operation
550
All Wheel Drive (Awd) Coil
551
Diagnosing System Failures
551
Operation Overview
551
Speed Sensor Location
552
Speed Sensor Testing
552
Vehicle Speed Sensor
552
Instrument Cluster
553
Overview
553
Rider Information Display
554
Information Display Area
555
Diagnostic Mode
557
Instrument Cluster Installation
558
Instrument Cluster Pinouts
558
Instrument Cluster Removal
558
Headlight Adjustment
559
Headlights
559
Headlight Bulb Replacement
560
Headlight Housing Installation
560
Headlight Housing Removal
560
Led Lamp Replacement
561
Tail Light / Brake Light
561
Cooling System
562
Fan Control Circuit Bypass Test
562
Fan Control Circuit Operation
562
Ignition Coil
563
Ignition Coil Tests
563
Operation Overview
563
Primary Test
563
Secondary Tests
563
Ignition Coil and Ht Lead Replacement
564
Operation
565
Relays
565
Fuses / Circuit Breaker
567
Operation
567
Operation (Intl.)
568
Charging System
569
Charging System "Break Even" Test
569
Charging System Alternator Tests
569
Current Draw - Key off
569
Charging System Testing Flow Chart
571
Battery Activation
572
Battery Service
572
Battery Terminal Block
572
Battery Terminals / Bolts
572
Battery Inspection
573
Battery Removal / Installation
574
Conventional Battery Testing
574
Ocv - Open Circuit Voltage Test
574
Voltage Drop Test
574
Charging Procedure
575
Load Test
575
Specific Gravity Test
575
Off Season Storage
576
Starter Drive
577
Starter Motor Does Not Run
577
Starter Motor Turns - Engine Does Not Rotate
577
Starter Motor Turns over Slowly
577
Starter System
577
Troubleshooting
577
Starter Solenoid Bench Test
578
Starter Solenoid Operation
579
Starting System Testing Flow Chart
580
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Polaris RANGER 500 2018 and is the answer not in the manual?
Ask a question
Polaris RANGER 500 2018 Specifications
General
Brand
Polaris
Model
RANGER 500 2018
Category
Offroad Vehicle
Language
English
Related product manuals
Polaris RANGER 500 2017
574 pages
Polaris RANGER 500 2019
574 pages
Polaris 2013 RANGER 500 Midsize
93 pages
Polaris RANGER 500 EFI 4X4 2012
93 pages
Polaris RANGER 500 2022
156 pages
Polaris RANGER 500 2020
574 pages
Polaris RANGER 500 2021
574 pages
Polaris RANGER 500
152 pages
Polaris Ranger 4x4 500 EFI
126 pages
Polaris RANGER XP 900 2018-2019
561 pages
Polaris RANGER XP 1000 2018-2019
561 pages
Polaris RANGER SP 570
186 pages
Need help?
General
To Next Page
